Automatically Configure a DeviceNet Network Chapter 4

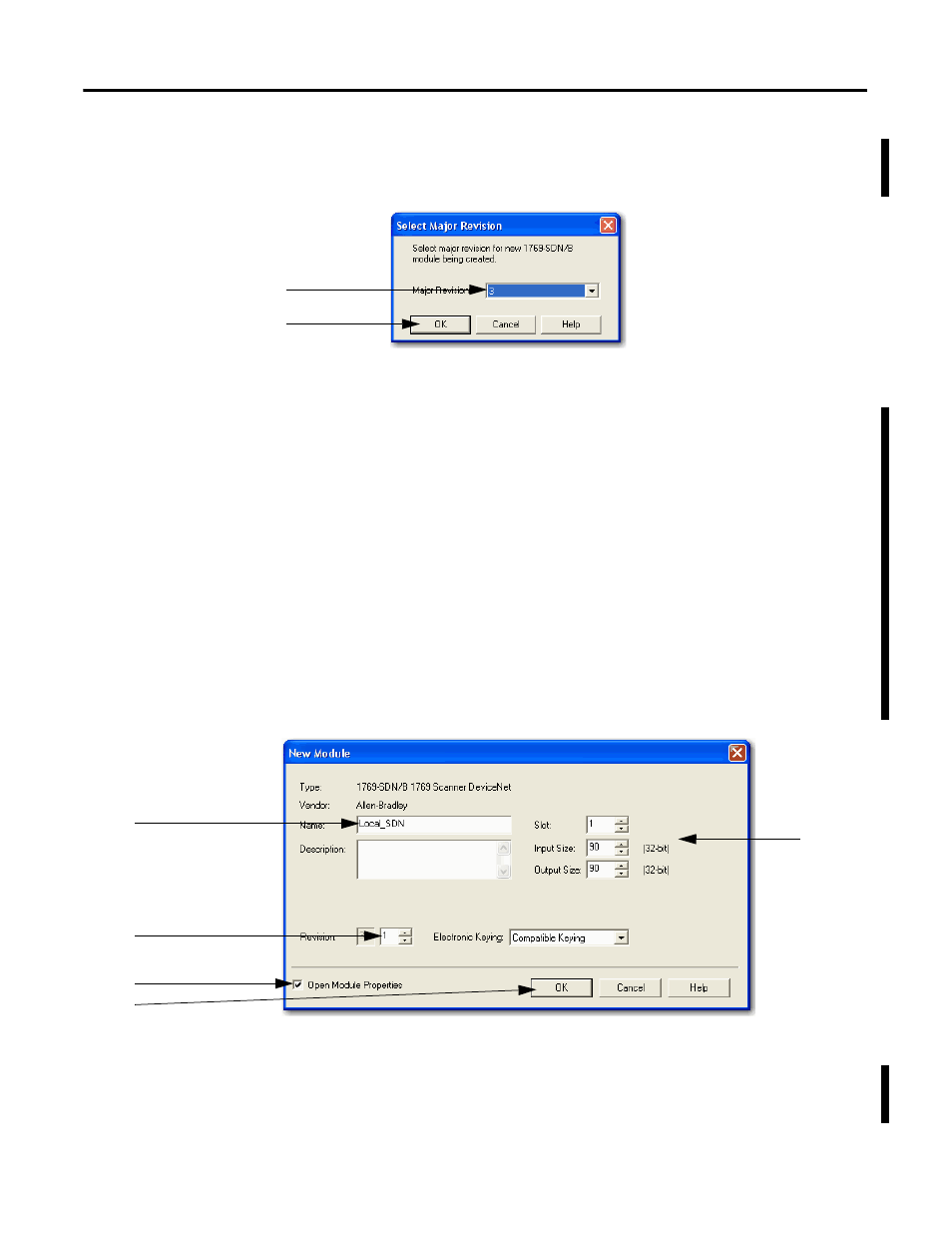

4. Select the Major revision of the scanner.
5. Click OK.
Define the Properties of the Scanner
1. Name the scanner.
2. Set the scanner Minor Revision.
3. Choose the size of the input and output memory maps that the scanner
will allocate for each device it detects on the network. Valid values range
from 0 to 32 bytes per node.
4. If you need to make additional configuration changes, such as setting the
Requested Packet Interval (RPI), leave the Open Module Properties box
checked.
5. Click OK
6. When the Module Properties dialog appears, that is, if you left the Open
Module Properties box checked, make additional required configuration
changes.
