Publication 1769-UM009E-EN-P - August 2009

43

Automatically Configure a DeviceNet Network Chapter 4

5.

Press

and a screen appears with the NodeComm

option highlighted.

6.

Press

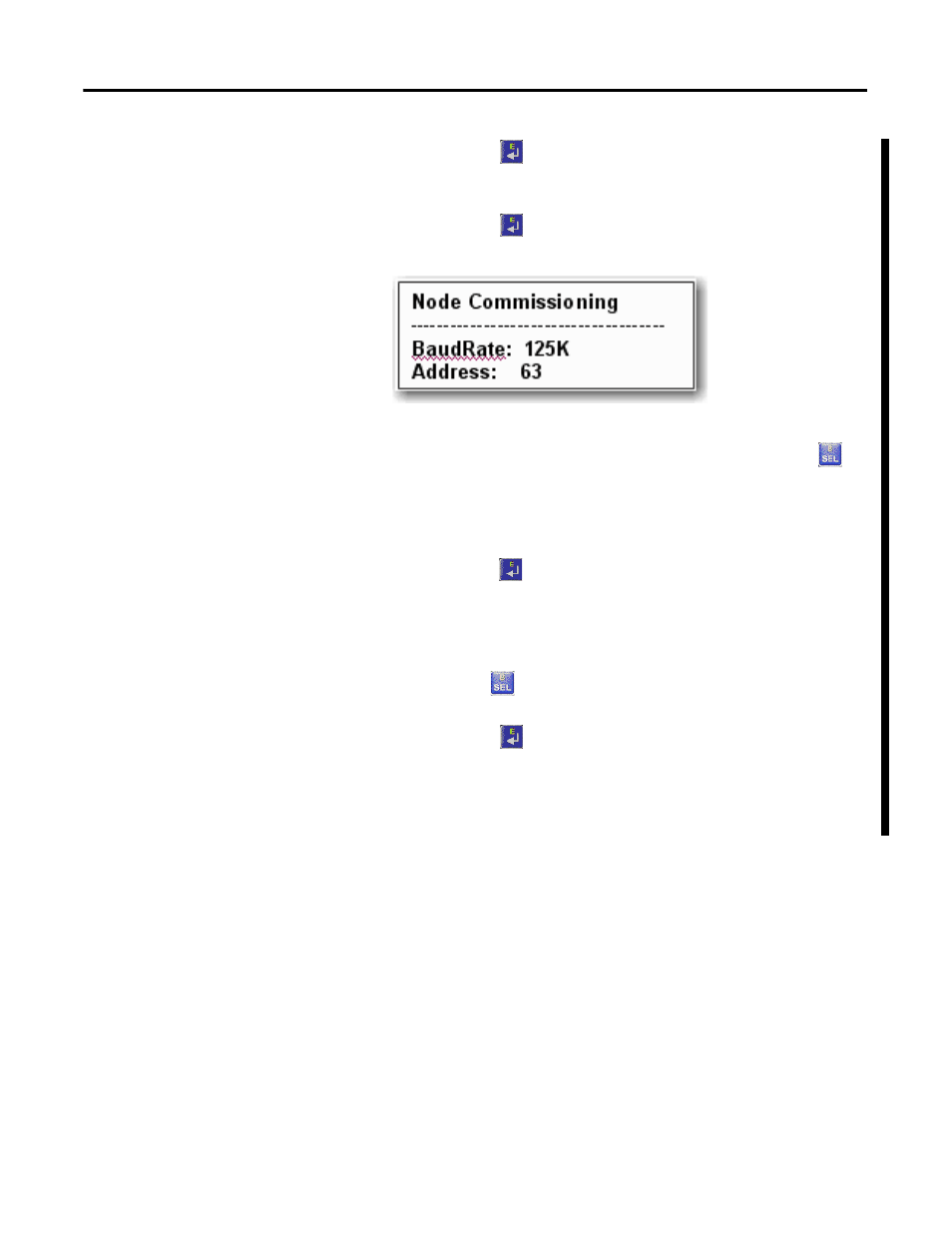

and the Node Commissioning screen appears as

shown below with the BaudRate option highlighted.

7.

Because you do not need to change the baud rate, press

to

advance to the Address option and highlight it.

8.

Press the numbers on the key pad for the node number that you plan to
use for the device that was just installed on the DeviceNet network and

press

.

When the address is changed an Apply Changes messages appears on
the screen.

9.

Press

to highlight the Apply Changes message.

10.

Press

to complete the node commissioning function.

After approximately two seconds, the 193-DNCT terminal re-initializes
and in another 10 seconds, the 193-DNCT terminal again displays the
Network Who screen. At this point, the new node appears in the table.
