Rockwell Automation 1769-SDN Compact I/O DeviceNet Scanner Module User Manual User Manual
Page 41

Publication 1769-UM009E-EN-P - August 2009
41
Automatically Configure a DeviceNet Network Chapter 4

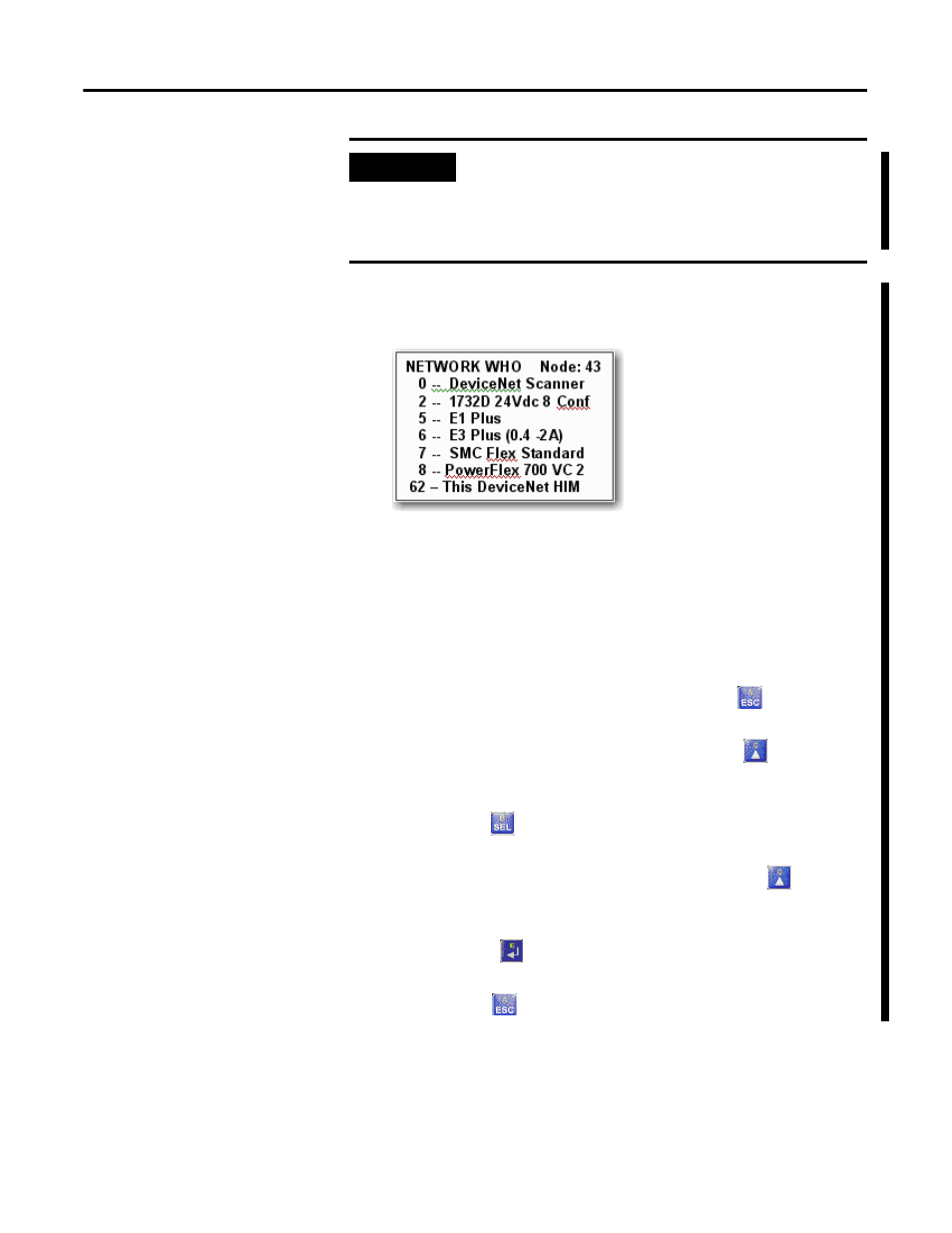

After 10 seconds a Network Who screen similar to the example
shown below should appear that displays all Nodes and associated
devices on the network.
If the Network Who screen does not appear as expected, then the
193-DNCT terminal may be set to autobaud enabled and is not able
to determine a communication rate because no communication is
occurring on the network at this time.
Follow these steps to disable the autobaud feature and set the baud rate.
1.
On the 193-DNCT terminal keypad, press
.
2.
Select the AutoBaud option and use
to
select Disable.
3.
Press
to advance to the BaudRate option.
4.
With the BaudRate option selected, use
to select
the appropriate baud rate.
5.
Press
to complete the node commissioning function.
6.
Press
to exit setup.
IMPORTANT
The 193-DNCT terminal is shipped so that when it is placed on
a DeviceNet network for the first time, it automatically sets its
baud rate to that of the traffic on the network. The terminal
uses Auto Addressing to assign itself an unused network node
address.
