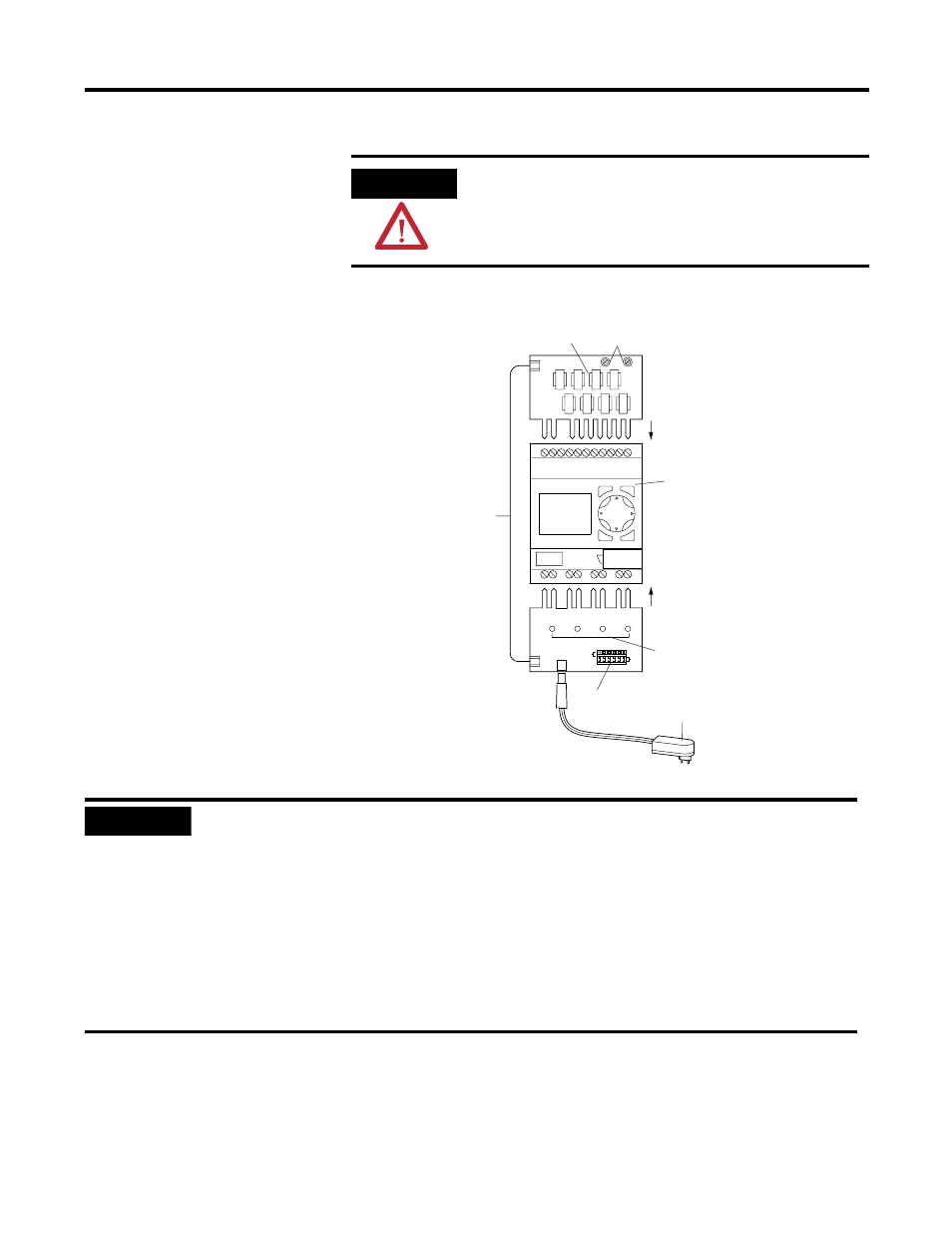

11-2 DC Simulator
Installation Guidelines
ATTENTION
Be sure that power is not applied when installing the
input and output simulator boards. Follow the
installation procedure below.
Esc Ok
Del Alt
I8 I6 I4 I2
I7 I5 I3 I1
Q1 Q2 Q3 Q4
Digital
Inputs I7 and I8
Analog Inputs
1760-L12BWB-xx
Output LEDs
Power Supply Unit
Connection
Cable
Installation Procedure
1. Connect inputs.
2. Connect outputs.
3. Plug in the connection
cable.
4. Connect the power
supply.
5. Plug in the power
supply unit.
Jumper
IMPORTANT
Observe the following precautions when using the DC Simulator:
1. The jumper on the circuit board must be in the RC (lower) position. The simulator
will not operate if the jumper is in the TC (upper) position.
2. When using the digital input switches for inputs I7 and/or I8, make certain that the
corresponding analog input potentiometers are fully rotated to the OFF (clockwise)
position.
3. When using the analog input potentiometers for inputs I7 and/or I8, be certain that
the corresponding digital input switches are in the OFF position.
