Save and Load Circuit Diagrams 5-7
If You Have Trouble
PicoSoft (catalog number 1760-PICOSOFT) provides extensive help on
how to use the software.
To access the help, start PicoSoft and click on Help.
The on-line help provides all the additional information about
PicoSoft that you will need.
If a problem occurs during transmission, Pico
displays the message INVALID PROG.
Check whether the circuit diagram contains a
function that Pico does not recognize:
• The time switch function relays only work with Pico versions
equipped with a real-time clock.
• The analog comparator function relay is only used with 12V dc
and 24V dc Pico versions.
• Text displays, jump and ’S’ markers only work with the
1760-L18xxx version.

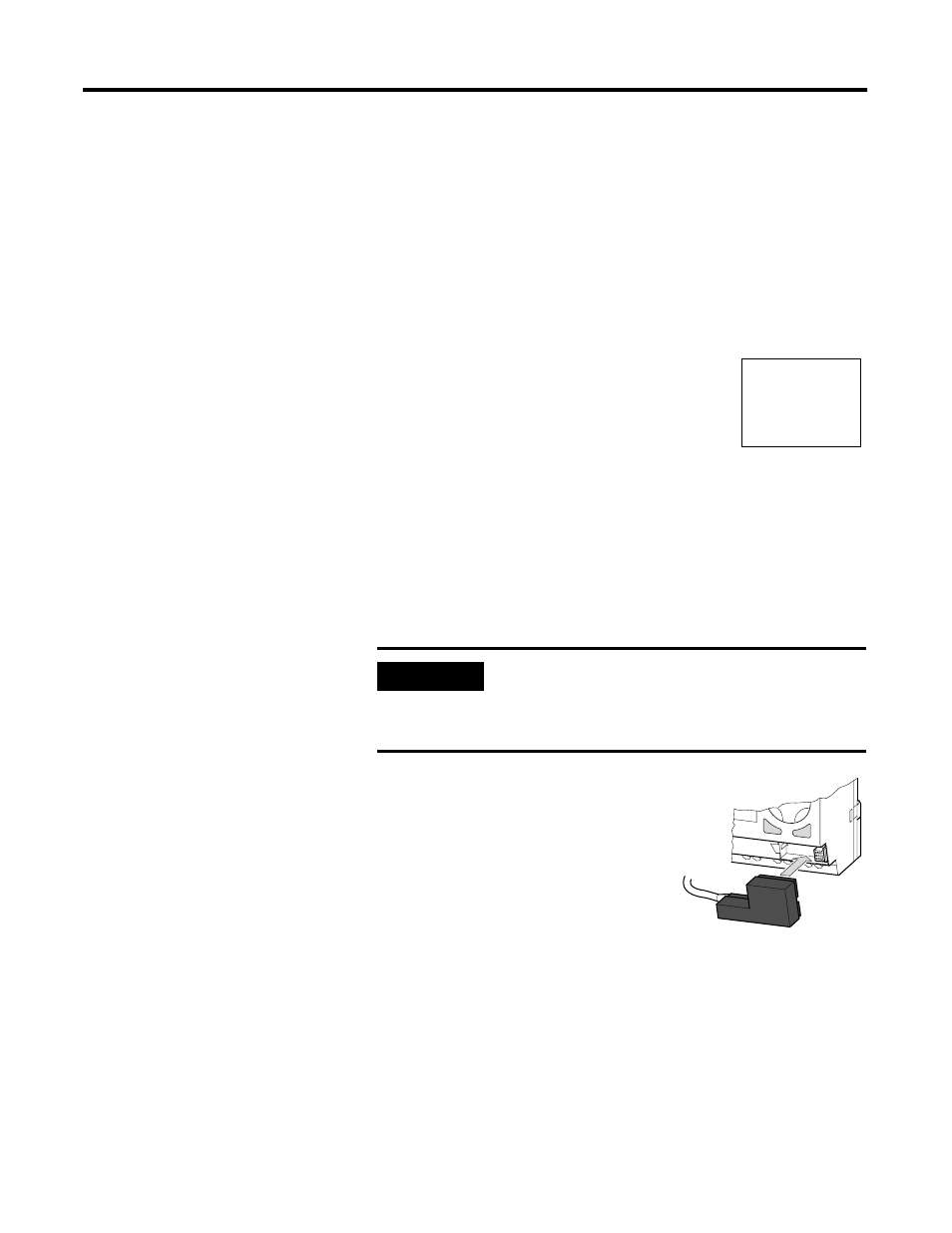

• After transmission, remove the cable
and close the cover.
IMPORTANT
If the power fails during communication with the
PC, repeat the last procedure. All of the data may
not have been transferred between the PC and
Pico.
INVALID PROG
Esc
Ok
1760-CBL-PM02
