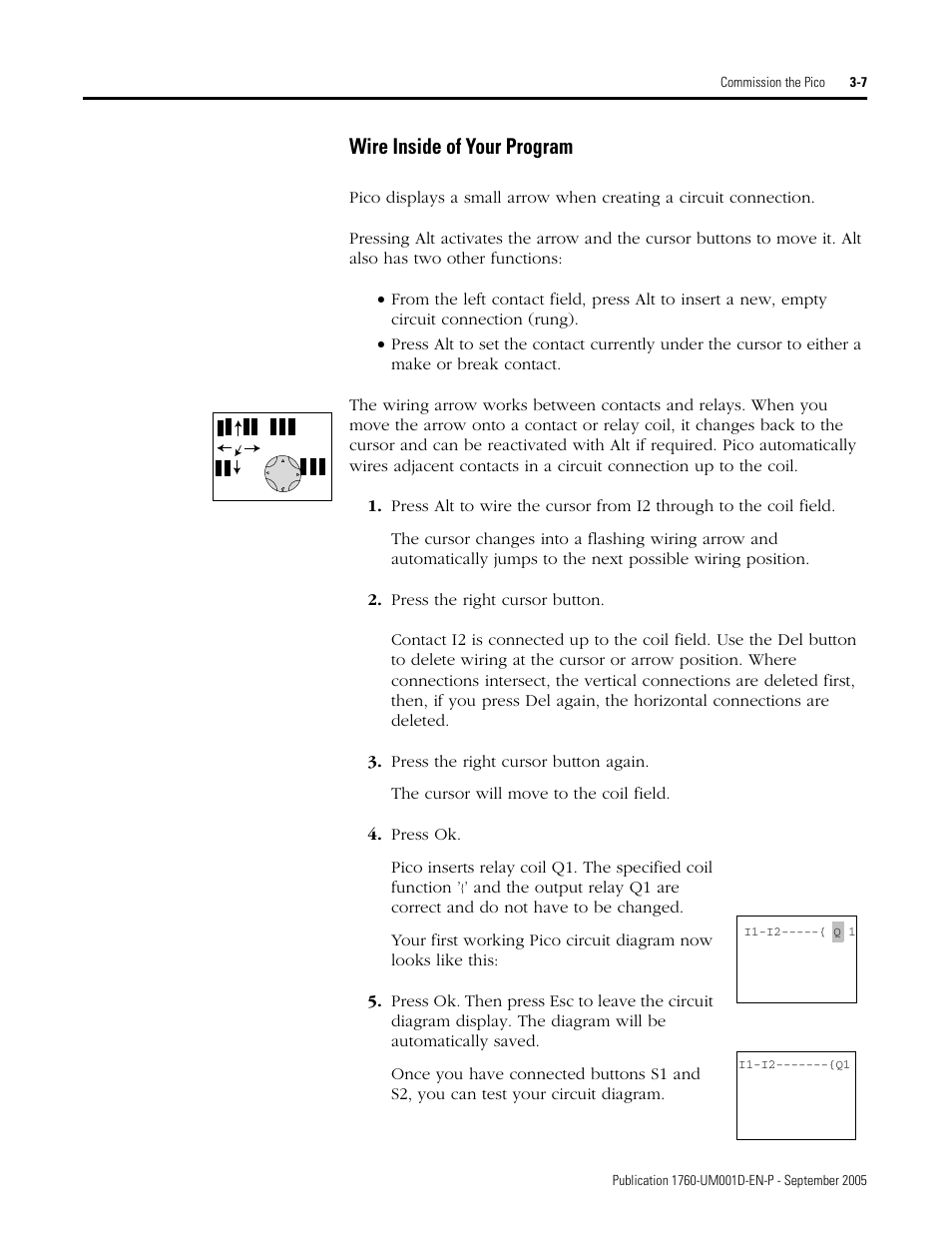

Wire inside of your program – Rockwell Automation 1760-xxxx Pico Controller User Manual User Manual
Page 57
