Operation, Operation -2, Outputs – Rockwell Automation 1760-xxxx Pico Controller User Manual User Manual

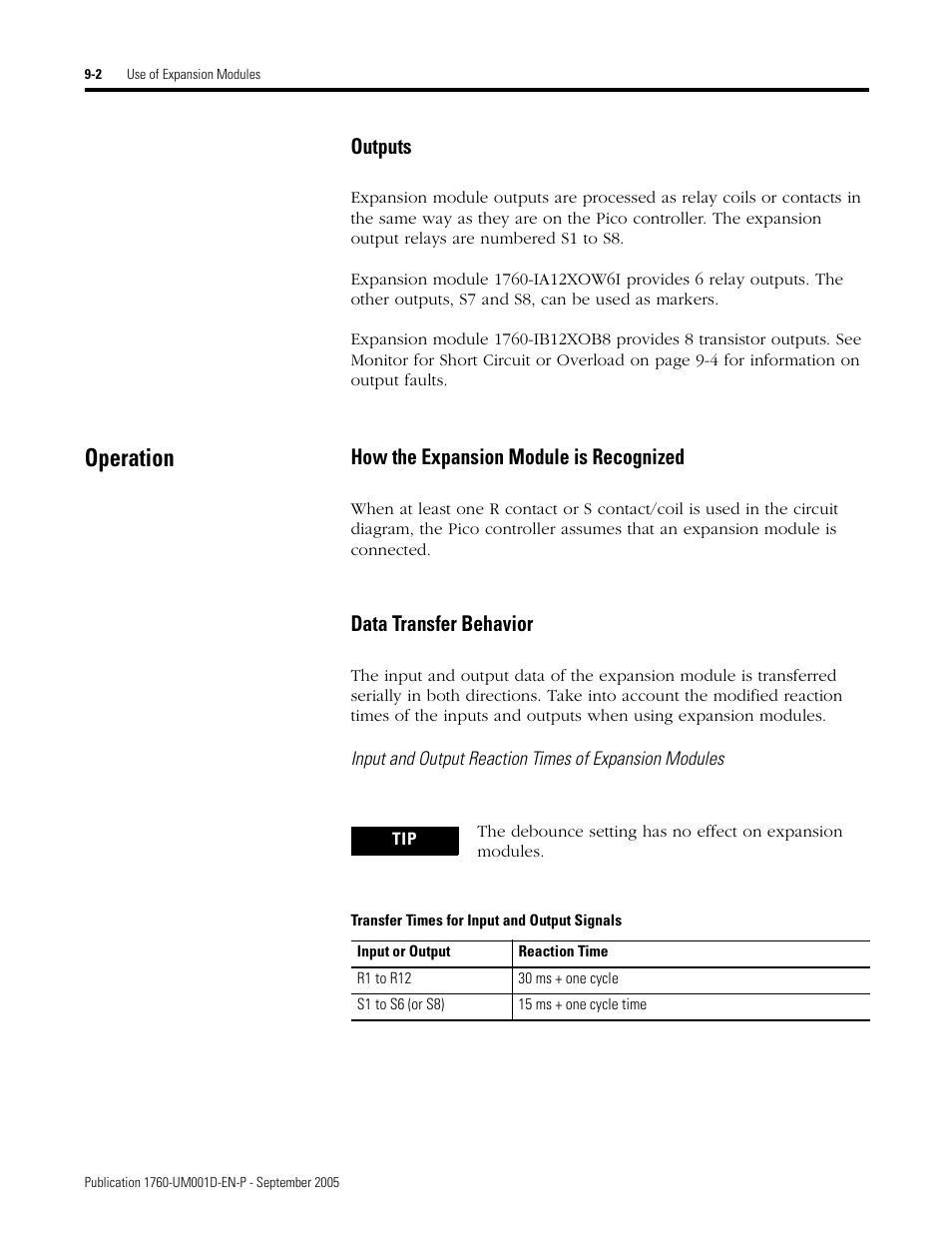

Page 180: How the expansion module is recognized, Data transfer behavior
