Configuring a Scanner to Communicate with the 1203-GK5 Module or 1336-GM5 Board

4-17

14. Select the following:

Refer to the DeviceNet Manager online help for more
information.

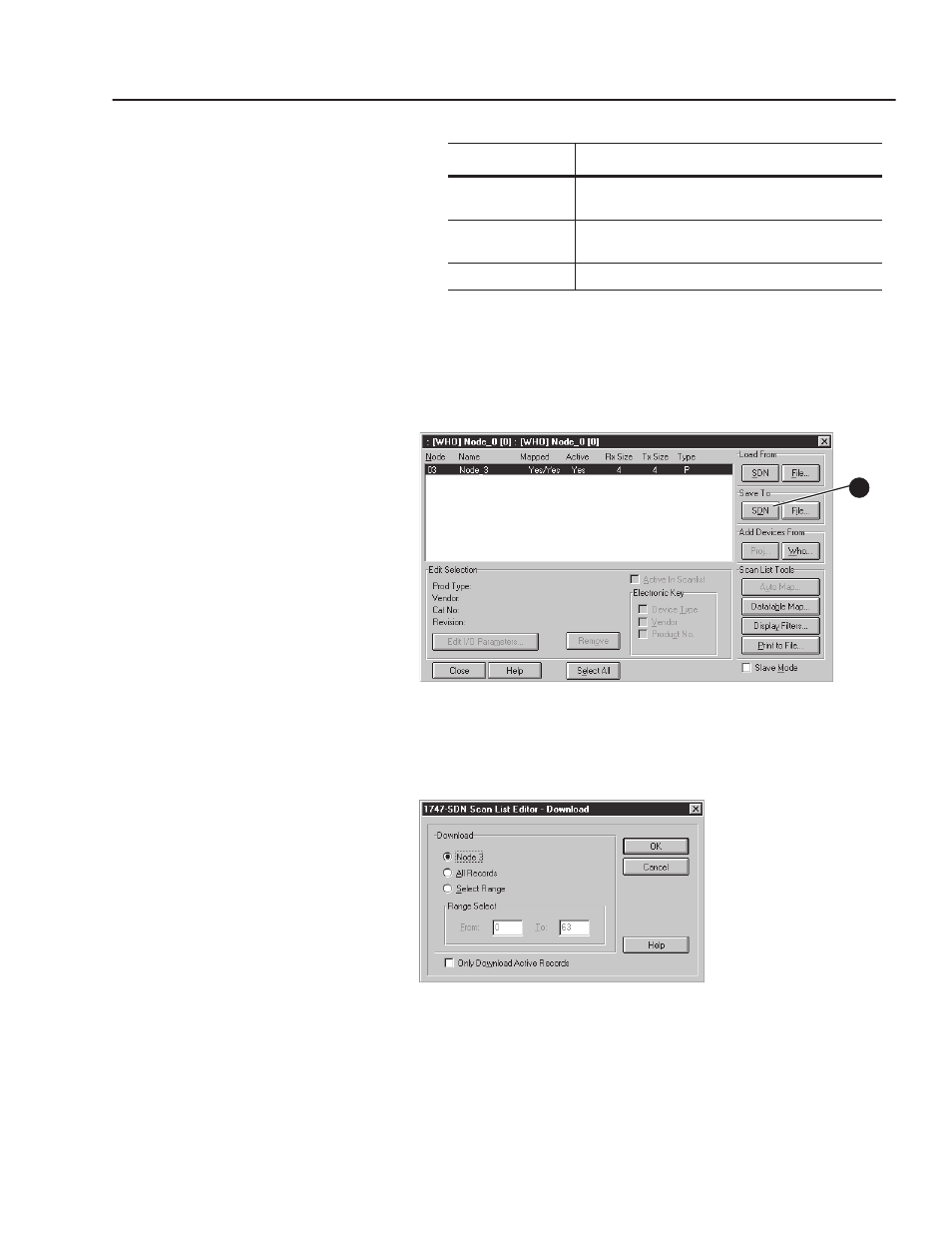

15. Click Map to display a dialog box similar to the following.

Figure 4.31
1747-SDN Scan List Editor Dialog Box

16. Under Save To, click SDN to display the 1747-SDN Scan List

Editor — Download dialog box.

Figure 4.32
1747-SDN Scan List Editor — Download Dialog Box

Box

Setting

Input File

Select the location in the SLC to which messages from the
1203-GK5 module or 1336-GM5 board are sent.

Output File

Select the location in the SLC from which messages to the
1203-GK5 module or 1336-GM5 board are sent.

Mapping Method

Select the mapping method.
