Configuring a Scanner to Communicate with the 1203-GK5 Module or 1336-GM5 Board
4-13
Configuring an SLC Scanner
(1747-SDN) to Communicate with a
1203-GK5 Module or 1336-GM5
Board
The following instructions describe how to configure an SLC scanner
on a DeviceNet network.
Important: If you are using an PLC scanner (1771-SDN), refer to
“Configuring a PLC Scanner (1771-SDN) to Communicate with a
1203-GK5 Module or 1336-GM5 Board” on page 4-8.
For the scanner to communicate with a product connected to the
network with a 1203-GK5 module or 1336-GM5 board, the scanner
must be properly configured and the product node number must be
added to its scan list.
Important: In case you need to revert to the current mapping, you
may want to retrieve and save existing mappings in the scanner to a
file before adding the module to the scanner mapping.
To configure the SLC scanner to communicate with a 1203-GK5
module or 1336-GM5 board, follow these instructions:
1. Select Who > Network Who to display the Network Who
screen. DeviceNet Manager immediately scans for devices on the
network.
Important: To stop the scan, click Stop. You can click Stop at any
time.
2. Double-click the scanner icon to display the 1747-SDN Module
Configuration dialog box.

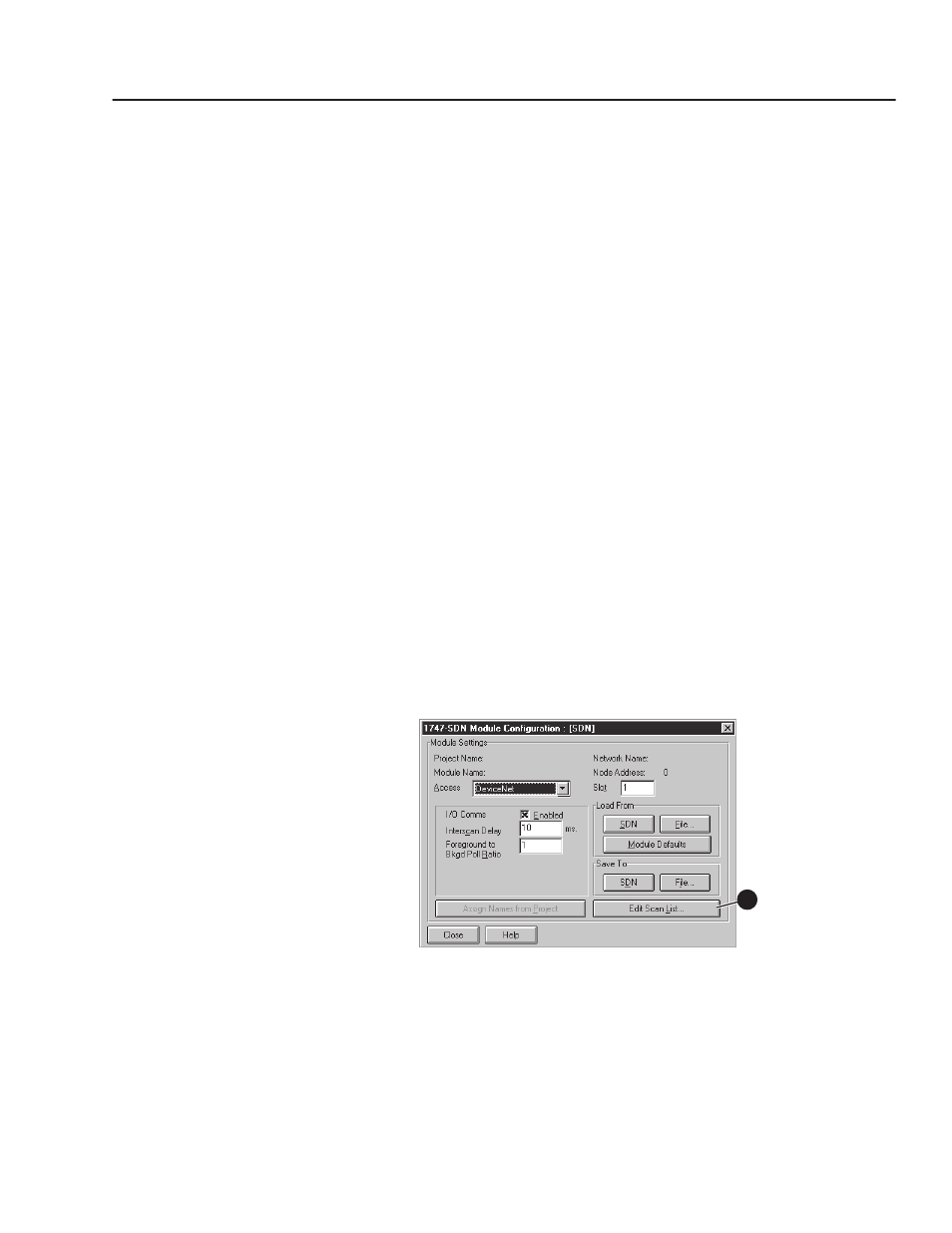

Figure 4.22
1747-SDN Module Configuration Dialog Box
3. Verify the default values. Edit as necessary. Refer to the
DeviceNet Manager online help for more information.
