Publication 0160-5.5 - September 1997

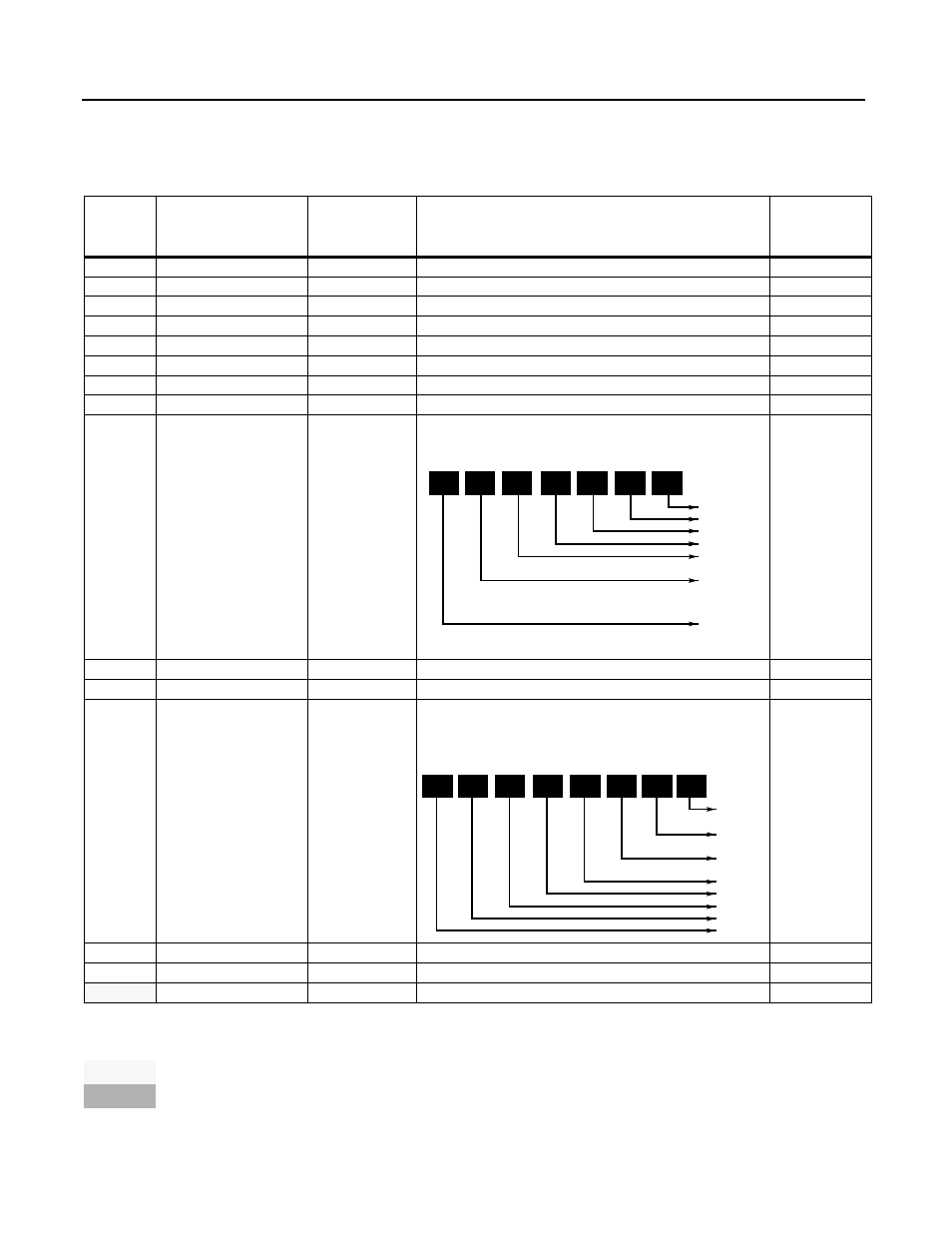

5-8 DeviceNet Parameter Descriptions
Drive Display Parameters (Read
Only) Below is a brief description of the Bulletin 160 SSC Interface Display
Group parameters. Refer to the Bulletin 160 SSC User Manual for
more detailed information on these parameters.
Parameter
Number
Parameter Name
Object Mapping
(Class-Instance-
Attribute)
Description Units
01 [Output Frequency] 0xB3-1-1 Frequency at TB2 terminals T1, T2, T3. 0.1 Hz
02 [Output Voltage] 0xB3-1-2 Voltage at TB2 terminals T1, T2, T3. 1 Volt
03 [Output Current] 0xB3-1-3 Current at TB2 terminals T1, T2, T3. 0.01 Amperes
04 [Output Power] 0xB3-1-4 Power at TB2 terminals T1, T2, T3. 0.01 kW
05 [Bus Voltage] 0xB3-1-5 DC Bus voltage level. 1 Volt
06 [Frequency Command] 0xB3-1-6 Commanded Frequency. 0.1 Hz
07 [Last Fault] 0xB3-1-7 Coded last fault number. Numeric Value
08 [Heatsink Temp] 0xB3-1-8 Temperature of the drive heatsink. 1 degree C
09 [Drive Status] 0xB3-1-9 Status of drive in binary coded format. Important: Parameter 9
shown below does not match what is published in the Bulletin 160
SSC User Manual. The DeviceNet binary code for Parameter 9 is: Binary Number
10 [Drive Type] 0xB3-1-10 Used by Allen-Bradley field service personnel. Numeric Value
11 [Control Version] 0xB3-1-11 Version of drive firmware used. Numeric Value
12 [Input Status] ➀ 0xB3-1-12 Open (0) Closed (1) state of Drive’s discrete inputs.
Important: Parameter 12 shown below does not match what is pub-
lished in the Bulletin 160 SSC User Manual. The DeviceNet binary
code for Parameter 12 is: Binary Number
13 [Power Factor Angle] 0xB3-1-13 Angle (electrical degrees) between V and I. 0.1 degree C
14 [Memory Probe] 0xB3-1-14 Used by Allen-Bradley service personnel. Numeric Value
29 [Analog Input] ➁ 0xB3-1-16 The analog input as a percent of full scale. 0.1%
➀ For preset speed model, this parameter contains the data from parameter 15 in the SSC drive due to conflicting parameter numbers with DeviceNet
specific parameters.
➁ This parameter is parameter 16 in the SSC drive but is renumbered due to conflicting parameter numbers with DeviceNet specific parameters.
This parameter applies only to the Analog Signal Follower model.
This parameter applies only to the Preset Speed model.
Bit 3 Bit 2 Bit 1 Bit 0
Running
Accel
Forward
Decel
Bit 6 Bit 5 Bit 4
Drive
Faulted
Reverse
Latched
A-B Internal
Use Only
At
Frequency
Reference
Bit 3 Bit 2 Bit 1 Bit 0
Not Used
Preset 1
Bit 6 Bit 5 Bit 4 Bit 7
Input
Preset 2
Input
Preset 3
Input
Unused
Reverse
Stop
Start
