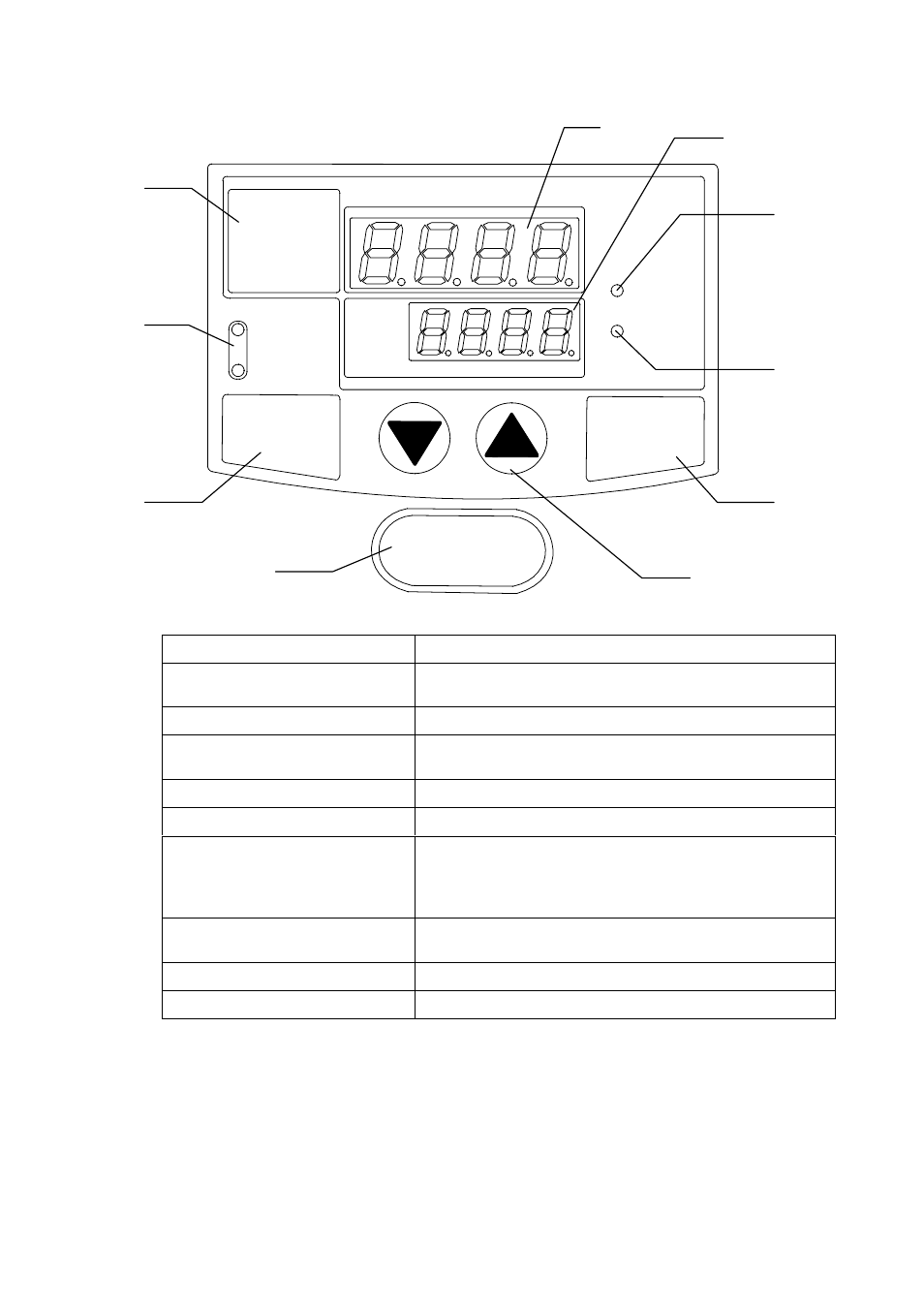

Control Panel
FIXED-TEMP
PROGRAM
HEAT
STAND BY
MEASURED TEMP
MENU MODE
ENTER
① Main Display:
Normally shows the aluminum block’s temperature.
② Sub Display:
Shows the preset temperature, remaining time and
ongoing program number
③ Heater (HEAT) lamp: Lights up when electric power is supplied to the heater.
④ Standby (STANDBY) Lamp
Lights up when HC200 is ready for the program
operation.
⑤ Function menu (MODE) key: Use this key when you select a desired function.
⑥ Up/Down key: Use these keys when you change the parameters.
⑦ Blind Window:
Blank in normal operation. “TROUBLE” lamp lights
up when HC200 has a problem, and “REMOTE” lamp
lights up when the optional communication system is in
use.
⑧ Operation Mode Indicator:
Indicates if HC200 is on the fixed temperature operation
or the program operation.
⑨ Operation Menu (MENU) key:
Use this key when you change operation mode.
⑩ ENTER key:
Use this key when you accept a modified parameter.
