Inputting and editing a program
Components of a Segment
A program is composed of the following
elements. When you put together a
program, you should input in accordance
with the following procedure.
Temperature
Time
Ram p time Ram p time Ram p time Ram p time
So ak time So ak time So ak time So ak time
Ram p level Ram p level Ram p level Ram p level
Ramp Time :
Time required to reach the ramp level
Ramp Level :
Desired set temperature
Soak Time :
Holding time of the ramp level
Wait Function :
Select ON or OFF.
When the wait function has been set to ON,
the oven goes on running the operation
until it reaches the ramp level. When the
wait function has been set to OFF, the
operation changes to the next segment
when the ramp time is up.
Setting and editing Menu Functions
Procedure for inputting and editing a program
▲ ▼
MODE
key
▲ ▼
▲ ▼
▲ ▼
▲ ▼
▲ ▼
▲ ▼
▲ ▼
ENTER
key
▲ ▼
Press
▲ ▼ Key
Key
Key
Key
Key
Key
Key
Key
Key
Key
ENTER
key
ENTER
key
ENTER
key
ENTER
key
ENTER
key
ENTER
key
ENTER
key
ENTER
key

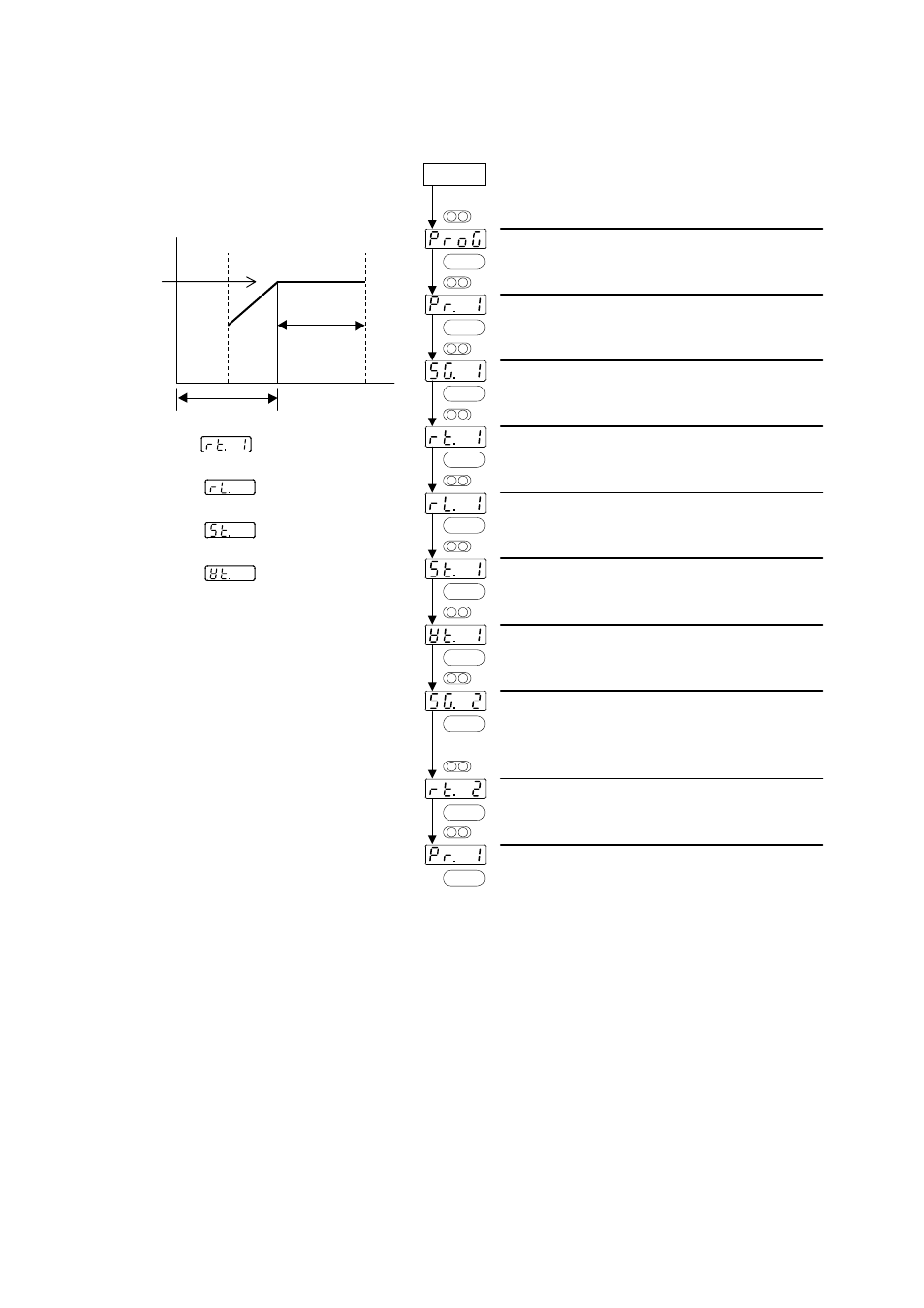

Select and activate the program input selection mode.
Select the program number that you want to register.
Indication of segment number.
Select the segment number that you want to overwrite.
Input a ramp time.
Note : Select "StEP" when you want to bring the oven to the ramp
level in a ramp block as soon as possible.
Input a ramp level.
Input a soak time.
Note : Select "0" when you want to combine two ramp operations.
Select "HoLd" when you want to hold the desired temperature
(ramp level)
Select the wait function.
The main display shows the next segment number.
Note : If you want to perform the repeat operation, select "rEP" on
the main display by pushing either the ▲key or the ▼key and
select the repeat command input mode by pushing the ENTER
key. After then, input a repeat start segment and a repeat
frequency.
When you have composed a program, select "END" in the ramp time
of your last segment and push the ENTER key.
ENTER
key
End of setting
