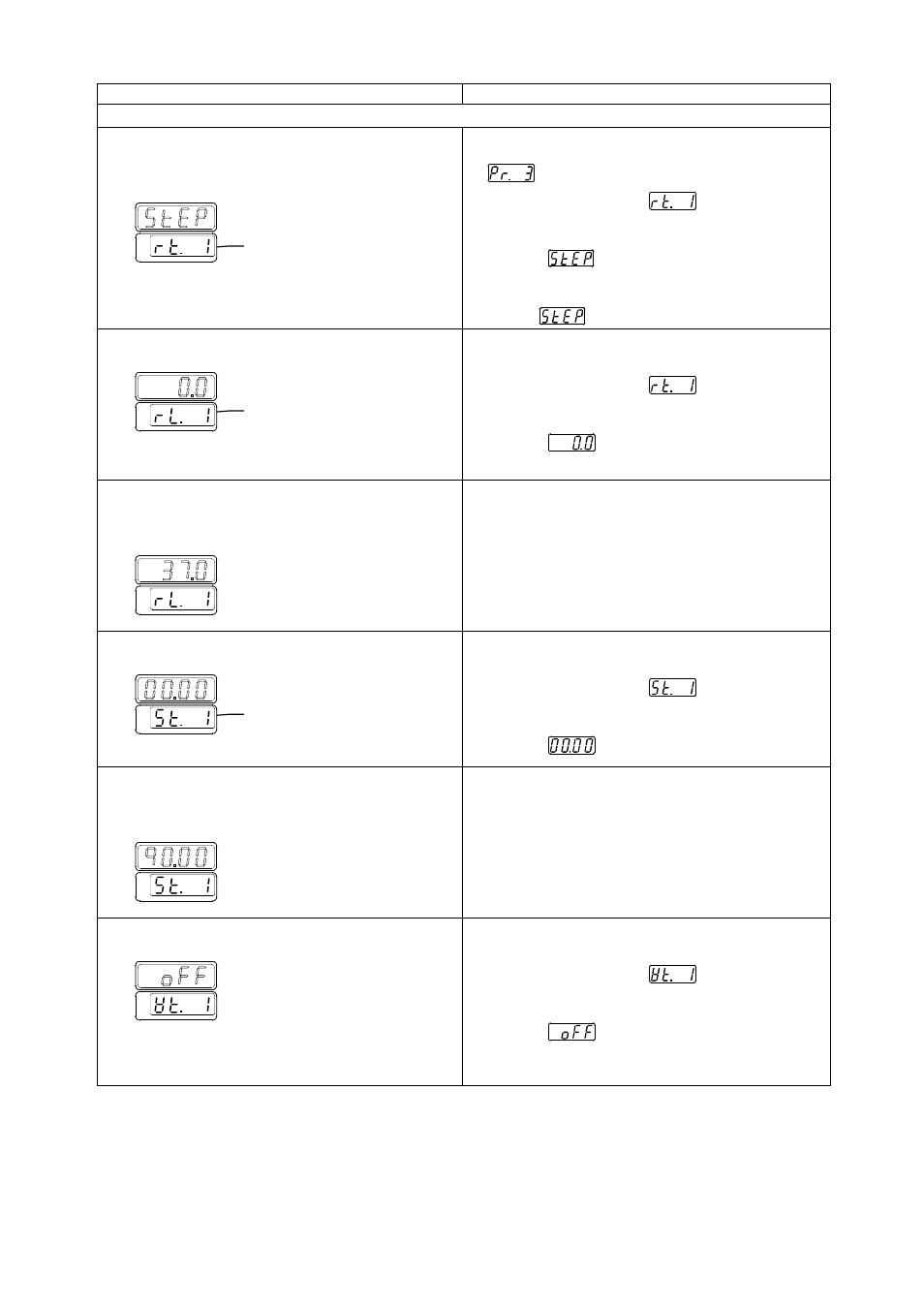

Indication after Step/Step Procedure Explanation
Setting Segment 1
4. Push the ENTER key
Ex., inputting the step operation
•
Push the ENTER key.
The controller turns to the program input mode for
.
⇒ ⇒ ⇒ ⇒ The sub display shows requesting for input
of the Ramp Time 1.
⇒ ⇒ ⇒ ⇒ When you input a new program, the main display
flashes .
! In Figure 4, no step operation is designed in
Segment 1.
Accept
without change.
5. Push the ENTER key
•
Push the ENTER key.
⇒ ⇒ ⇒ ⇒ Pushing the ENTER key sets the Ramp Time 1.
⇒ ⇒ ⇒ ⇒ The sub display shows requesting for input
of the Ramp Level 1.
⇒ ⇒ ⇒ ⇒ When you input a new program, the main display
flashes .
6. Push either the ▼ key or the ▲key.
Ex., setting 37 o C.
•
Push either the ▼ key or the ▲key to show 37 o C on
the main display.
7. Push the ENTER key
•
Push the ENTER key.
⇒ ⇒ ⇒ ⇒ Pushing the ENTER key sets the Ramp Level 1.
⇒ ⇒ ⇒ ⇒ The sub display shows requesting for input
of the Soak Time 1.
⇒ ⇒ ⇒ ⇒ When you input a new program, the main display
flashes .
8. Push either the ▼ key or the ▲key.
Ex., Setting 1 hour 30 minutes.
•
Push either the▼ key or the ▲key to show 1 hour 30
minutes on the main display.
9. Push the ENTER key
•
Push the ENTER key.
⇒ ⇒ ⇒ ⇒ Pushing the ENTER key sets the Soak Time 1.
⇒ ⇒ ⇒ ⇒ The sub display shows requesting for input
of the Wait Time 1.
⇒ ⇒ ⇒ ⇒ When you input a new program, the main display
flashes .
! In Figure 4, the Soak Time includes the heating
time. Turn off the Wait Function.
(Ex. Ramp Time of segment 1)
(Ramp Level of Segment 1)
(Ex. Soak Time of segment 1)
