35
How to Compose a Program
Program Composition
One program is composed of segments and a repeat command. Each segment comprises ramp time,
ramp level, soak time, and end segment. On the other hand, a repeat command comprises repeat
start segment and repeat frequency.
Contents of a Segment
Components of a Segment
•
A program is composed of segments, and the pattern of each segment is set by the following 3 elements.
1. Ramp level : Desired set temperature
2. Ramp time : Time required to reach the ramp level
3. Soak time : Holding time of the ramp level
•

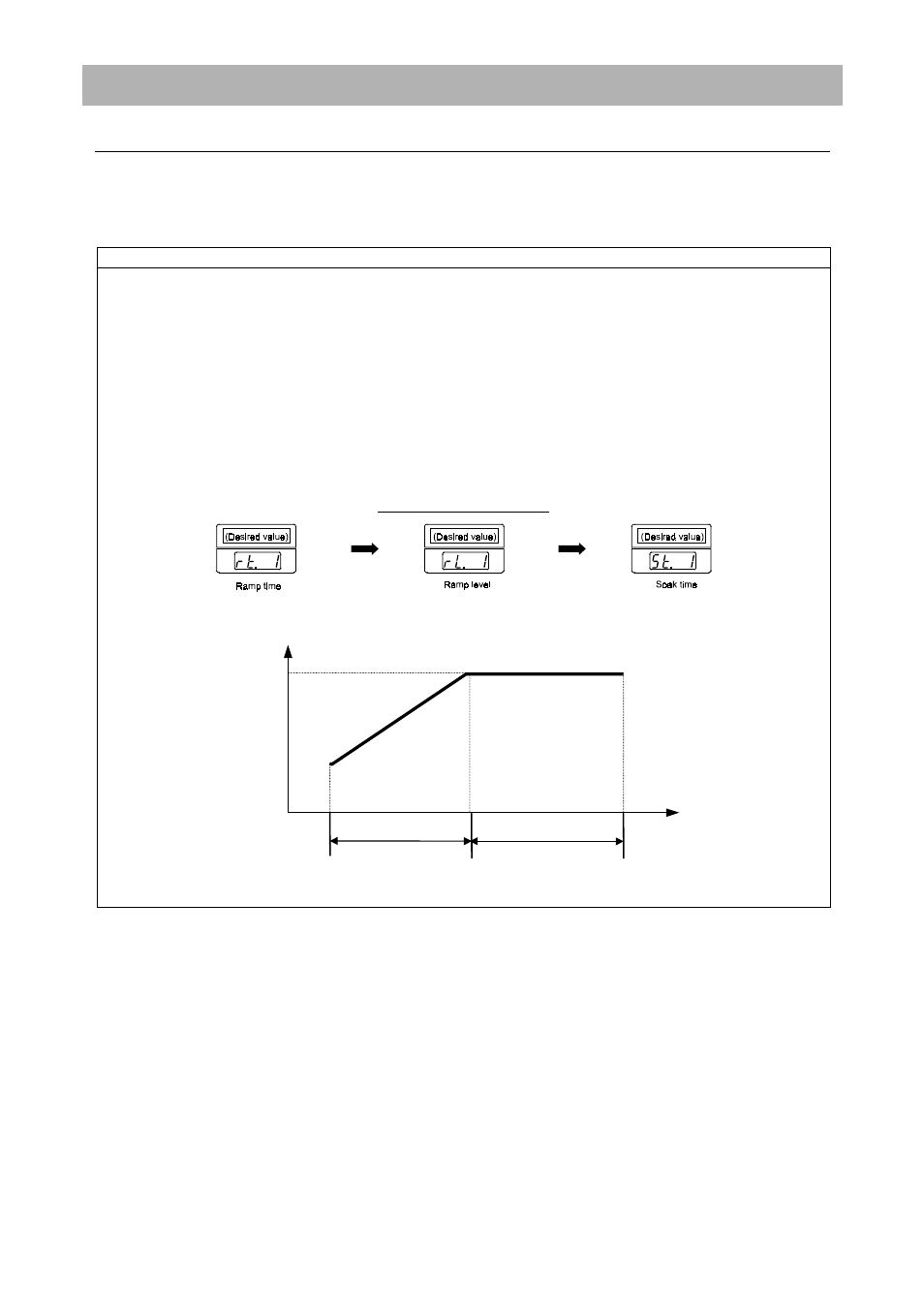

In ramp Operation (See Figure 1)
1. In the ramp block (a), HC200 conducts the ramp operation for the specified ramp time toward a temperature set
on the ramp level.
2. In the soak block (b), HC200 holds the temperature set on the ramp level for the specified soak time.
⇒ ⇒ ⇒ ⇒ Follow the procedure below for setting the parameters. (See “Inputting a Program” on page 39.)
Ex., inputting to Segment 1.
Time
Ramp Block(a)
Soak Time
Soak Block(b)
Ramp Level
Measured Temperature
Ramp Time
(Fig. 1: Schematic of a Segment in Ramp Operation)
