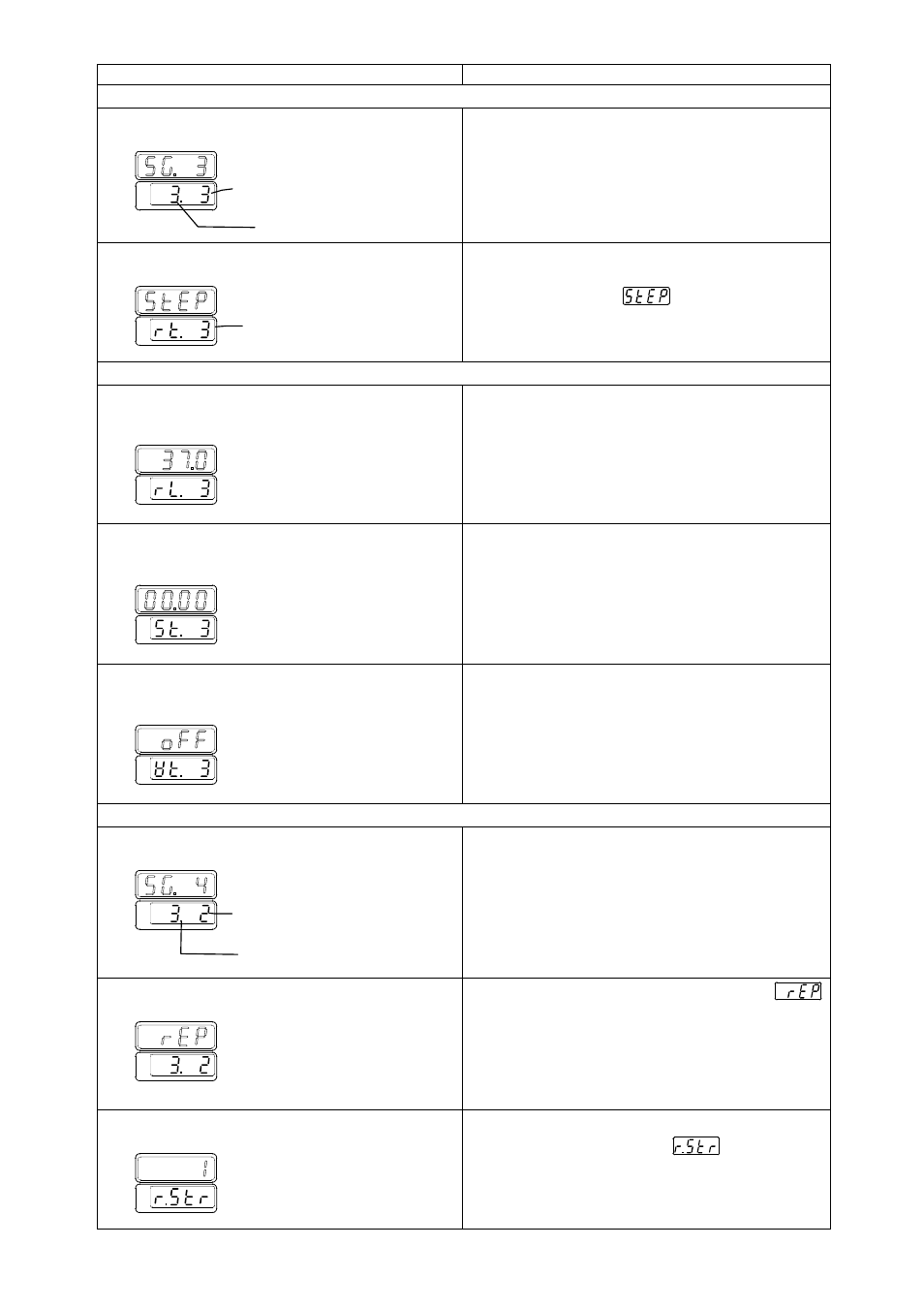

Indication after Step/Step Procedure Explanation
Setting Segment 3
16. Push the ENTER key
•
Push the ENTER key.
⇒ ⇒ ⇒ ⇒ Pushing the ENTER key accepts the parameters of
Segment 2 and activates the input mode of Segment
3.
17. Push the ENTER key
•
Push the ENTER key.
⇒ ⇒ ⇒ ⇒ In Figure 4, Segment 3 is designed for the ramp
operation. Accept without change.
⇒ ⇒ ⇒ ⇒ Pushing the ENTER key sets Ramp Time 3.
In the same manner as Segment 1, input the ramp time, ramp level, soak time and wait function.
18. Push the ENTER key after selecting a value
by the ▼ key or the ▲key.
(Ex. inputting 37 o C)
•
After selecting your desired value by pushing the ▼
key or the ▲key, push the ENTER key.
⇒ ⇒ ⇒ ⇒ Pushing the ENTER key sets the Ramp Level 3.
19. Push the ENTER key after selecting a value
by the ▼ key or the ▲key.
(Ex., inputting 0 hour 0 minute)
•
After selecting your desired value by pushing the ▼
key or the ▲key, push the ENTER key.
⇒ ⇒ ⇒ ⇒ Pushing the ENTER key sets the Soak Time 3.
20. Push the ENTER key after selecting a value
by the ▼ key or the ▲key.
(Ex. turning OFF the wait function)
•
After selecting OFF of the wait function by pushing the
▼ key or the ▲key, push the ENTER key.
⇒ ⇒ ⇒ ⇒ Pushing the ENTER key turns off the wait function of
Segment 3.
Setting a Repeat Command
21.
•
Once the controller accepts the parameters of
Segment 3, it is ready for input of Segment 4.
! Push the ▼ key or the ▲key to switch to the repeat
command input mode.
22. Push either the ▼ key or the ▲key.
•
Push either the ▼ key or the ▲key to flash
(Repeat) on the main display.
⇒ ⇒ ⇒ ⇒ The controller turns to the repeat command input
mode.
23. Push the ENTER key.
•
Push the ENTER key.
⇒ ⇒ ⇒ ⇒ The sub display shows (repeat start),
requesting for input of the segment number that the
repeat should start from.
⇒ ⇒ ⇒ ⇒ The main display flashes the lowest number of the
segments.
(Ex. The number of unused segments)
(The program number
that you are working on.)
(Ex. Ramp Time of Segment 3)
(Ex. The number of unused segments)
(The program number
that you are working on.)
