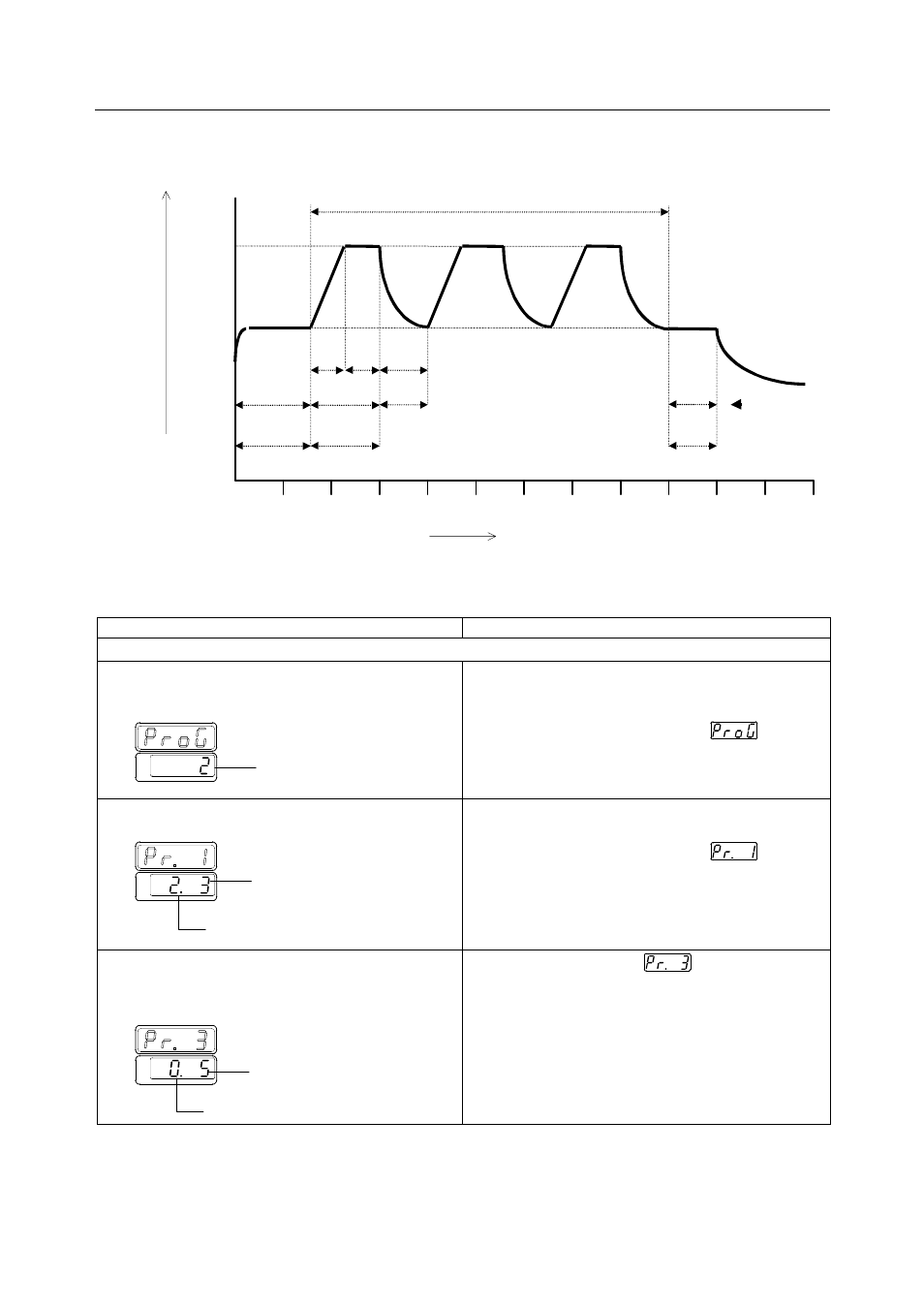

Inputting a Program
This paragraph discusses how to input a program. See Figure 4.
0 4
Segment
4
1 hour
7 6 10 11 12 5 9 8 2 1 3
STEP
30
min 1 hour
Segment
3
Segment 2
Time
1 hour 30
minutes 1 hour 30
minutes
End Segment
Wait function On Wait function On
Segment 1
Measured Temperature（ ° C）
Repeat Command (Repeat Segment 2 and 3 three times)
Fig. 4 : Inputting a Program
Indication after Step/Step Procedure Explanation
Setting a Program Number
1. Push either the ▼ key or the ▲ key after
pushing the MODE key.
•
Push the MODE key to activate the function selection
mode, and push either the ▼ key or the ▲key.
⇒ ⇒ ⇒ ⇒ The controller turns to the program input selection
mode. The main display flashes .
⇒ ⇒ ⇒ ⇒ The sub display shows the number of registered
programs.
2. Push the ENTER key
•
Push the ENTER key.
⇒ ⇒ ⇒ ⇒ The controller turns to the program inputting/editing
mode. The main display flashes .
⇒ ⇒ ⇒ ⇒ On the sub display, the left two digits show the
number of used segments and the right two digits
show the number of unused segments.
3. Push the ▲ key.
Ex. Inputting into Program 3
•
Push the ▲ key to show (Program 3.).
⇒ ⇒ ⇒ ⇒ Program 3 has not been programmed. On the sub
display, the left two digits show 0 (zero) (no used
segment) and the right two digits show 5 (the
maximum number of available segments).
(Ex. 2 programs registered)
(Ex. 3 unused segments)
(Ex. 2 used segments)
(Ex. 5 unused segments)
(Ex. 0 used segments)
