Contents of a Segment
•
Not in Ramp Operation (See Figure 2).
1. When you want to achieve the ramp level in a ramp block as soon as possible, set the ramp time at
Soak Time
Time
Soak Block(c)
Measured Temperature( ° C)
Ramp Level
Setting the ramp time at

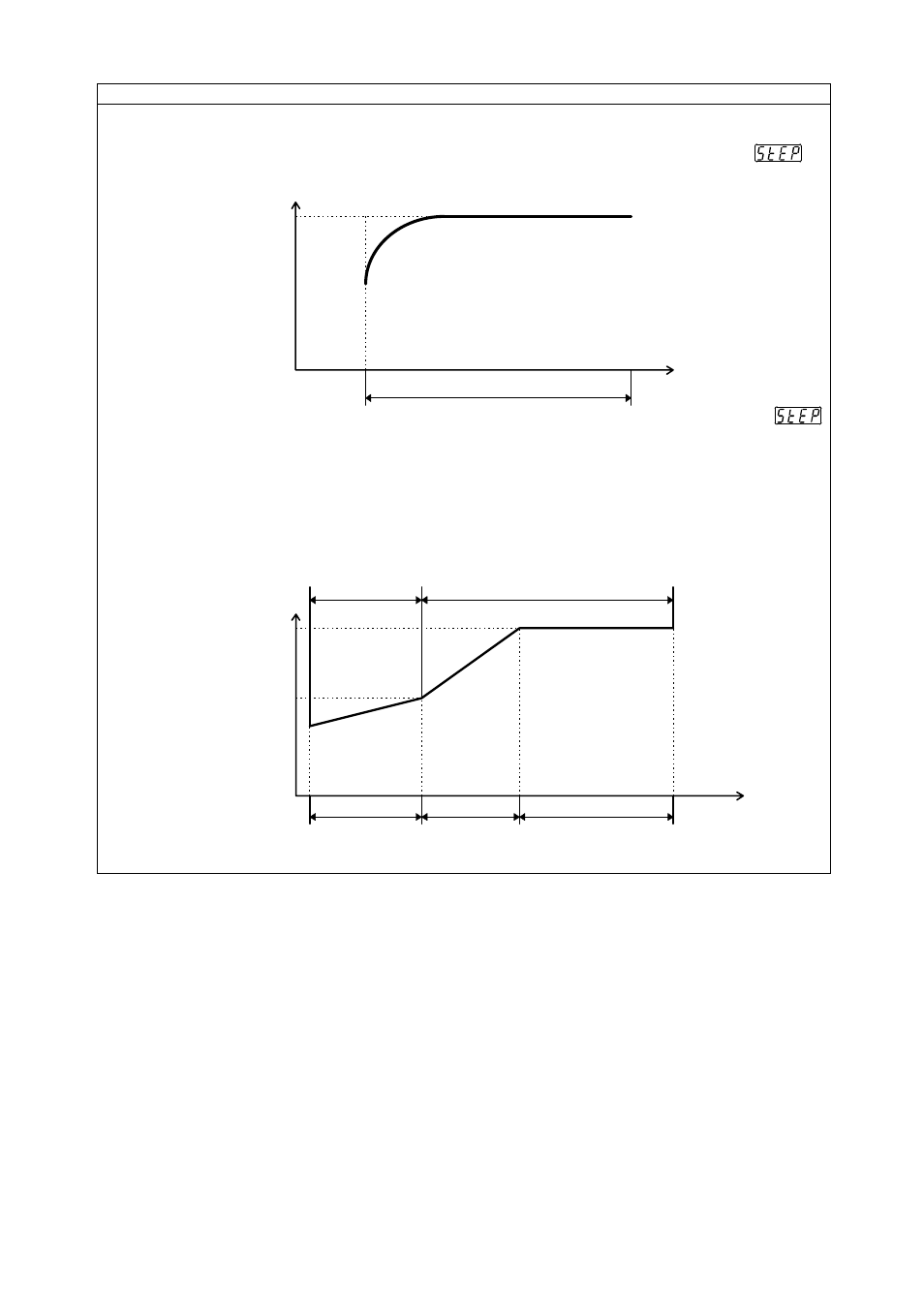

(Fig. 2: Schematic of a Segment Not in Ramp Operation)
•
Combining Ramp Operation (See Figure 3.)
1. When you want to continue more than two ramp operations of different constant ratios, set the soak time of the
preceding segment (Segment A) at 0 (zero) to eliminate its soak block.
Soak Time Ramp Time Ramp Time
Measured Temperature ( ° C)
Ramp Level
Ramp Level
Ramp Block(d)
Ramp Block(e)
Segment B Segment A
Time
Soak Block(f)
(Fig. 3: Schematic of Combining Segments in Ramp Operations)
