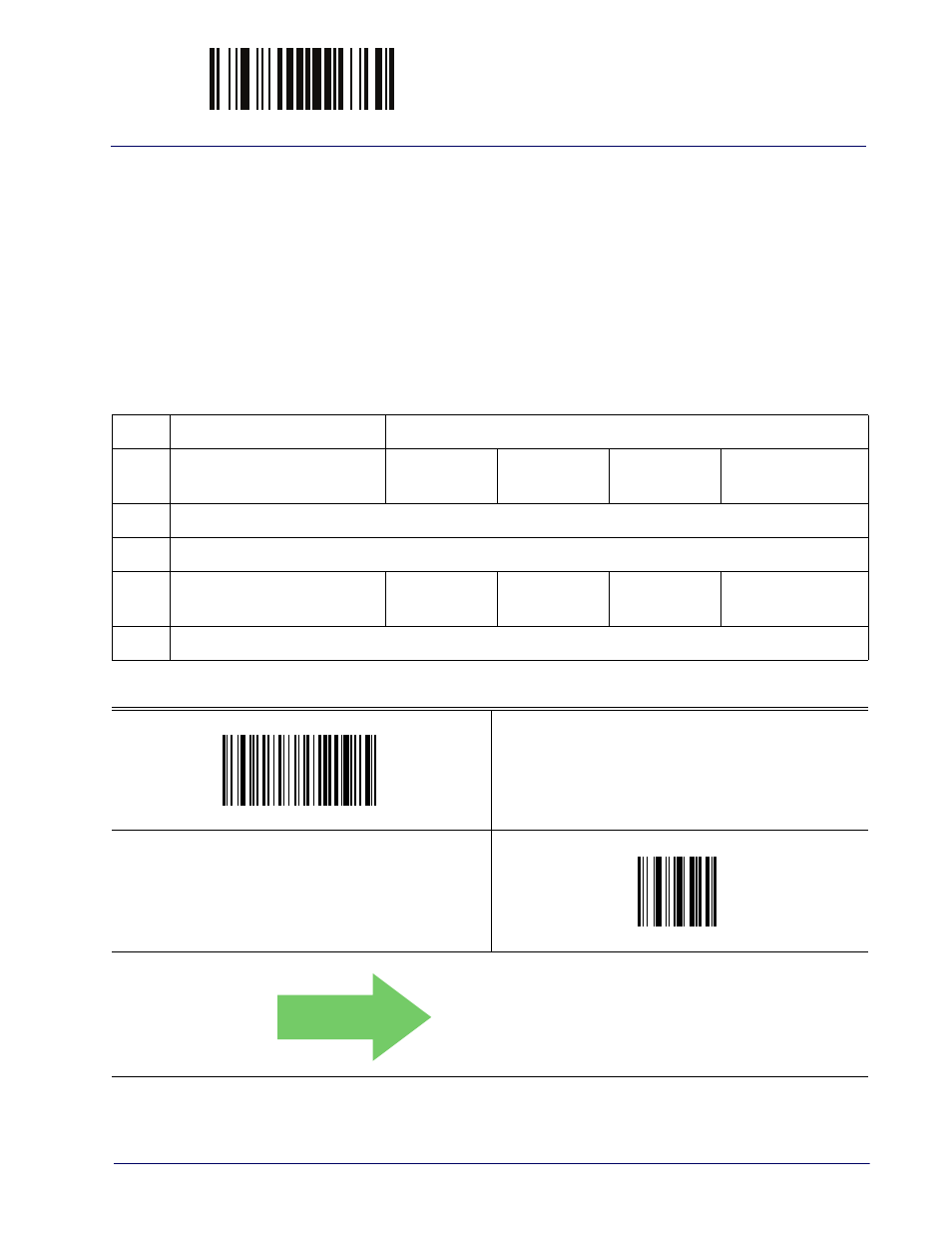

ENTER/EXIT PROGRAMMING MODE Codabar Set Length 2
Product Reference Guide 175
Codabar Set Length 2
This feature specifies one of the barcode lengths for Codabar Length Control . Length 2 is the
maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length
Mode. The length includes the barcode’s start, stop, check and data characters. The length must
include at least one data character.
The length can be set from 3 to 50 characters. A setting of 0 specifies to ignore this length (only
one fixed length).
Table 17 provides examples for setting Length 2. See page 243 for detailed instructions on
setting this feature.
Table 17. Codabar Length 2 Setting Examples
STEP ACTION EXAMPLES
1
Desired Setting (and pad with
leading zeroes)
00 Ignore This
Length
07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT CODABAR LENGTH 2 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Codabar Length 2 Setting
Make a mistake? Scan the CANCEL barcode to abort and not
save the entry string. You can then start again at the begin-
ning.
CANCEL
DEFAULT 50 = Length 2 is 50 Characters
