Installing the Interface Cable
Product Reference Guide 7
Keyboard Wedge Connection
The Keyboard Wedge cable has a ‘Y’ connection from the reader. Connect the female to the
male end from the keyboard and the remaining end at the keyboard port at the terminal/PC.
Reference
Figure 3 .

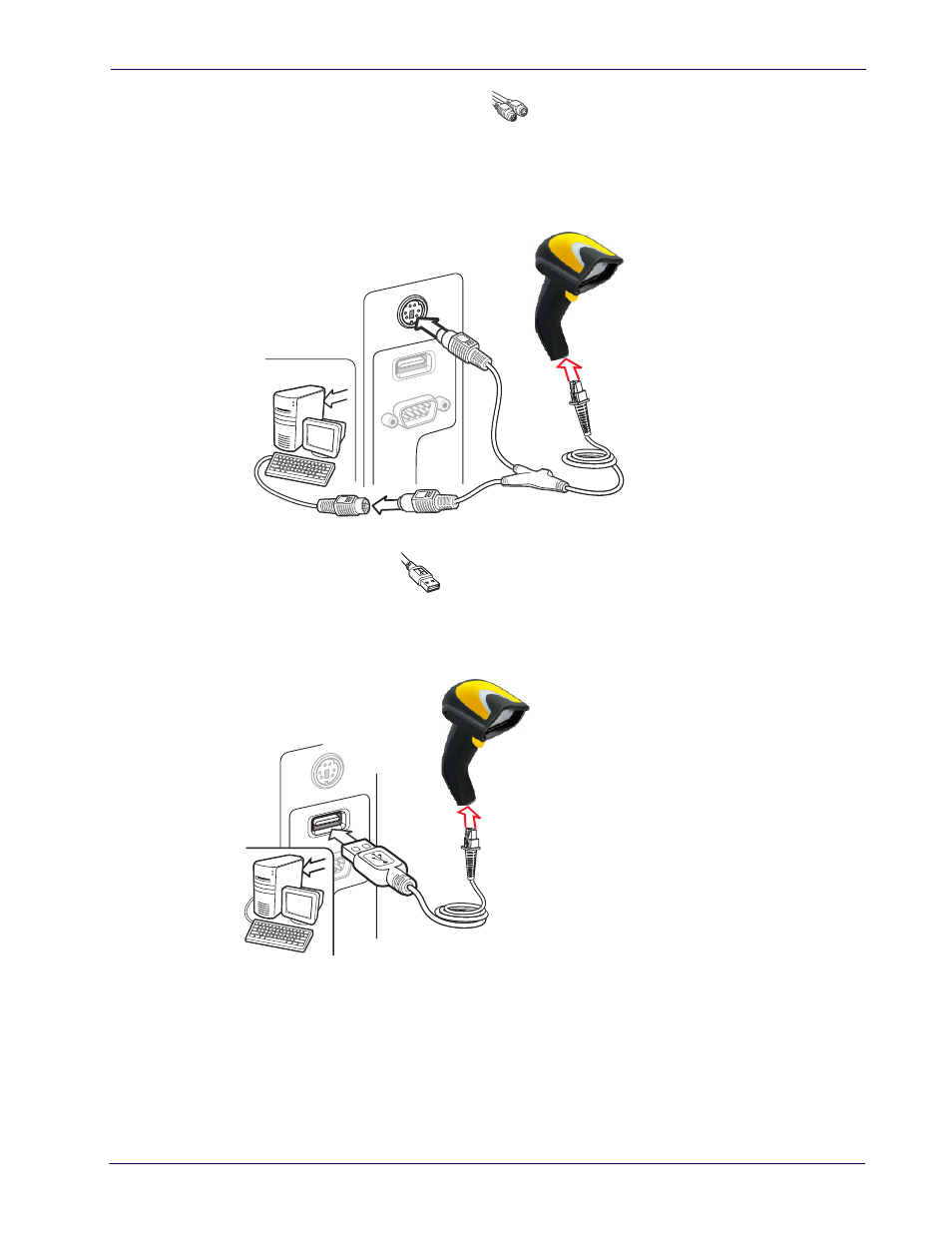

Figure 3. Keyboard Wedge Interface connection
USB Connection
Connect the reader to a USB port on the terminal/PC using the correct USB cable for the
interface type you ordered. Reference
Figure 4 .
Figure 4. USB connection
Other connection types are described below and illustrated in Figure 5 .
