22

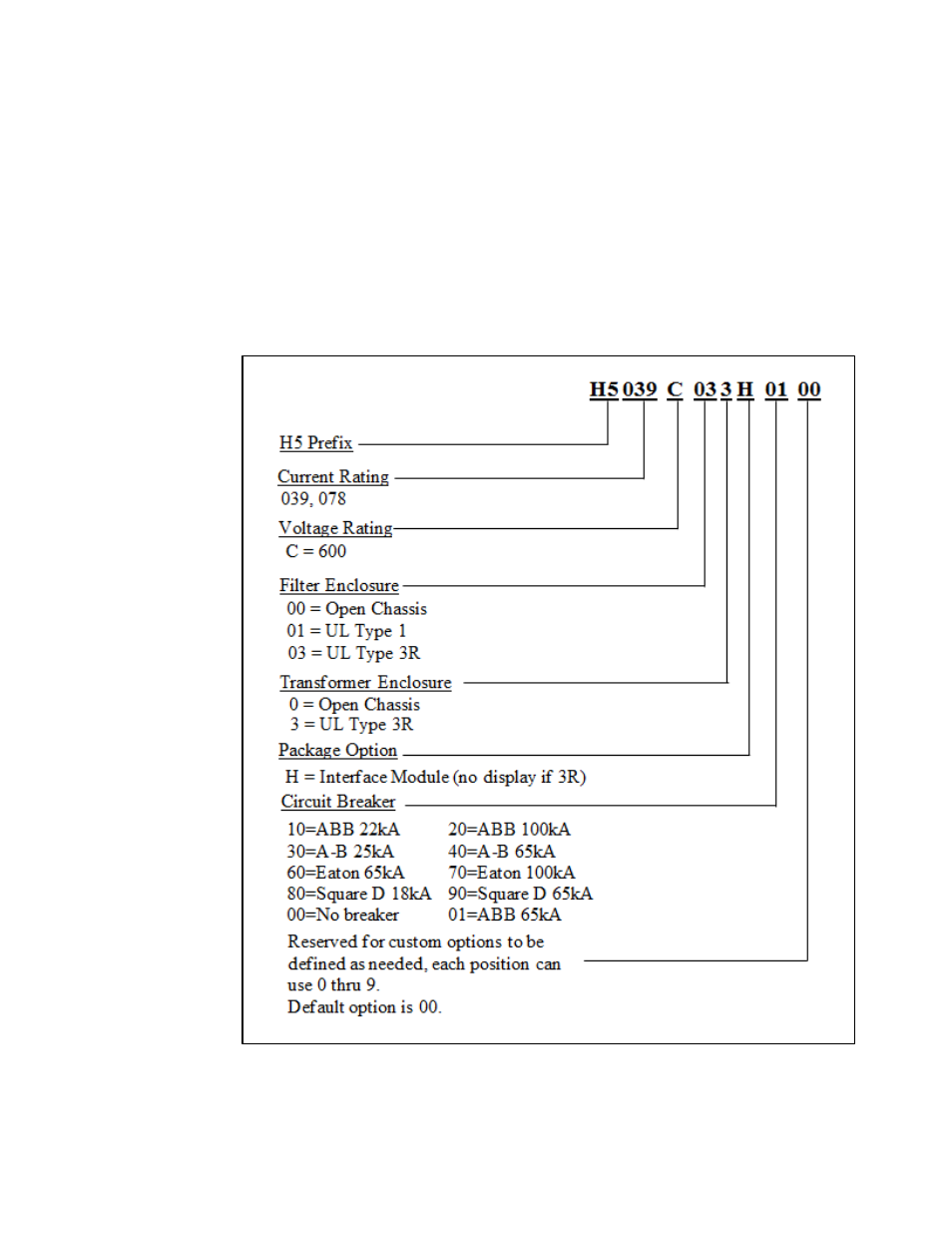

Figure 3.6 identifies the significance of each character in the HarmonicGuard Active filter part
number. An example of a completed part number would be H5039C033H0100. This designates an
enclosed HarmonicGuard Active filter that is rated for 39 amps, 600 volts, and has an HMI Interface
Module Package.
HGA Part Numbering System – 600V
Temperature: 40° C
Current: 39, 78
Voltage: 600
Enclosure: Open Chassis, UL Type 1 or UL Type 3R
Figure 3.6 – HarmonicGuard Active Part number Encoding
