Nameplate Data
Figure 3.2 shows a typical HarmonicGuard Active filter nameplate. The following information is
marked on the nameplate:
Part number: encoding is explained on the following page
Corrective Current: The maximum amount of RMS Corrective Current the unit can deliver.
System Voltage: the rated 3-phase line voltage (RMS volts)
Hz: the rated frequency (60 Hz)
Phase: 3, 3 Wire – The HGA is designed for use with only 3 wire systems with balanced 3-
phase voltage source.
Drawing #: outline and mounting dimension drawing number
Schematic #: schematic diagram drawing number
Serial #: for unit tracking purposes
Enclosure Type: Open, UL Type 1, UL Type 3R

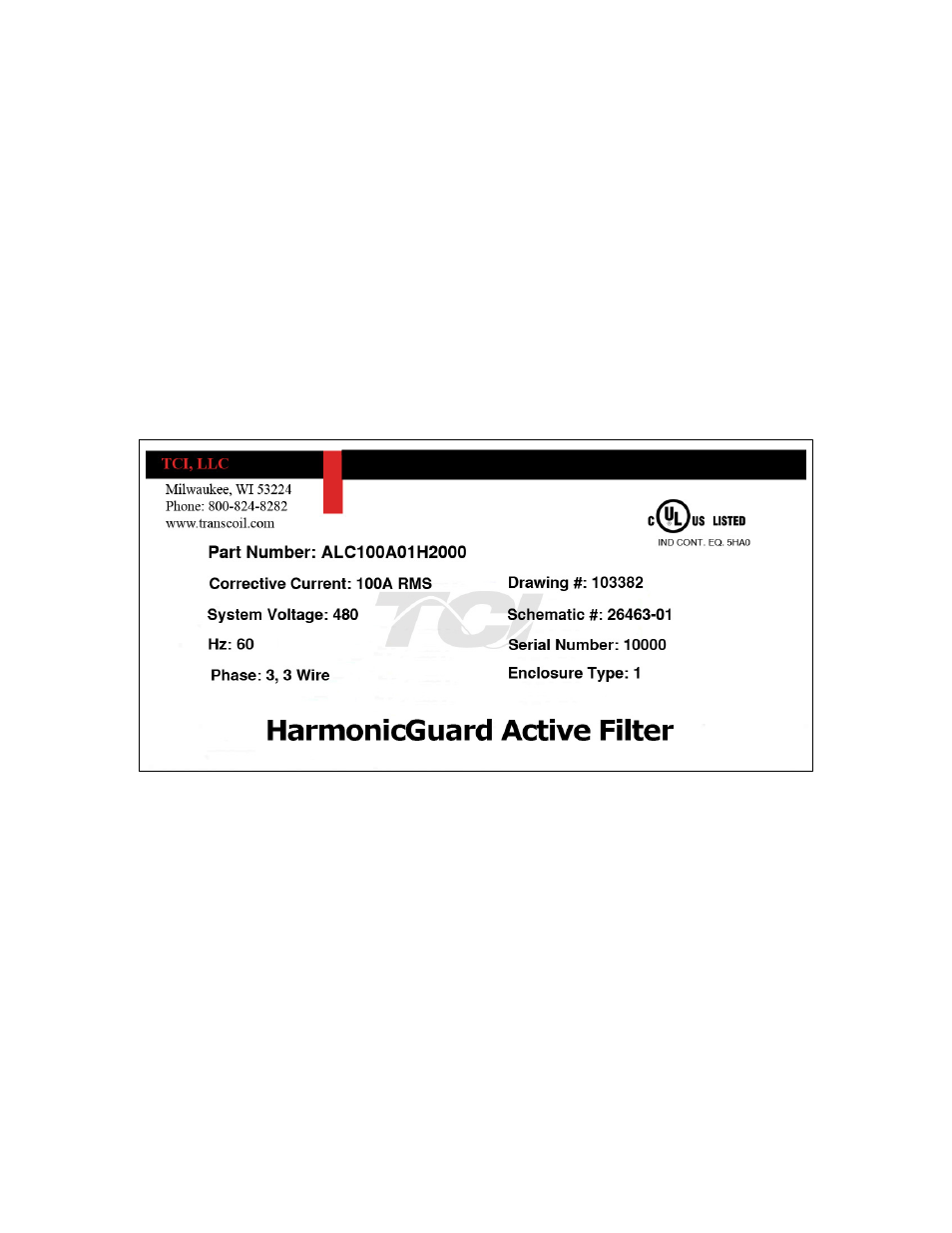

Figure 3.2 – Typical HarmonicGuard Active filter Nameplate
