OPERATION

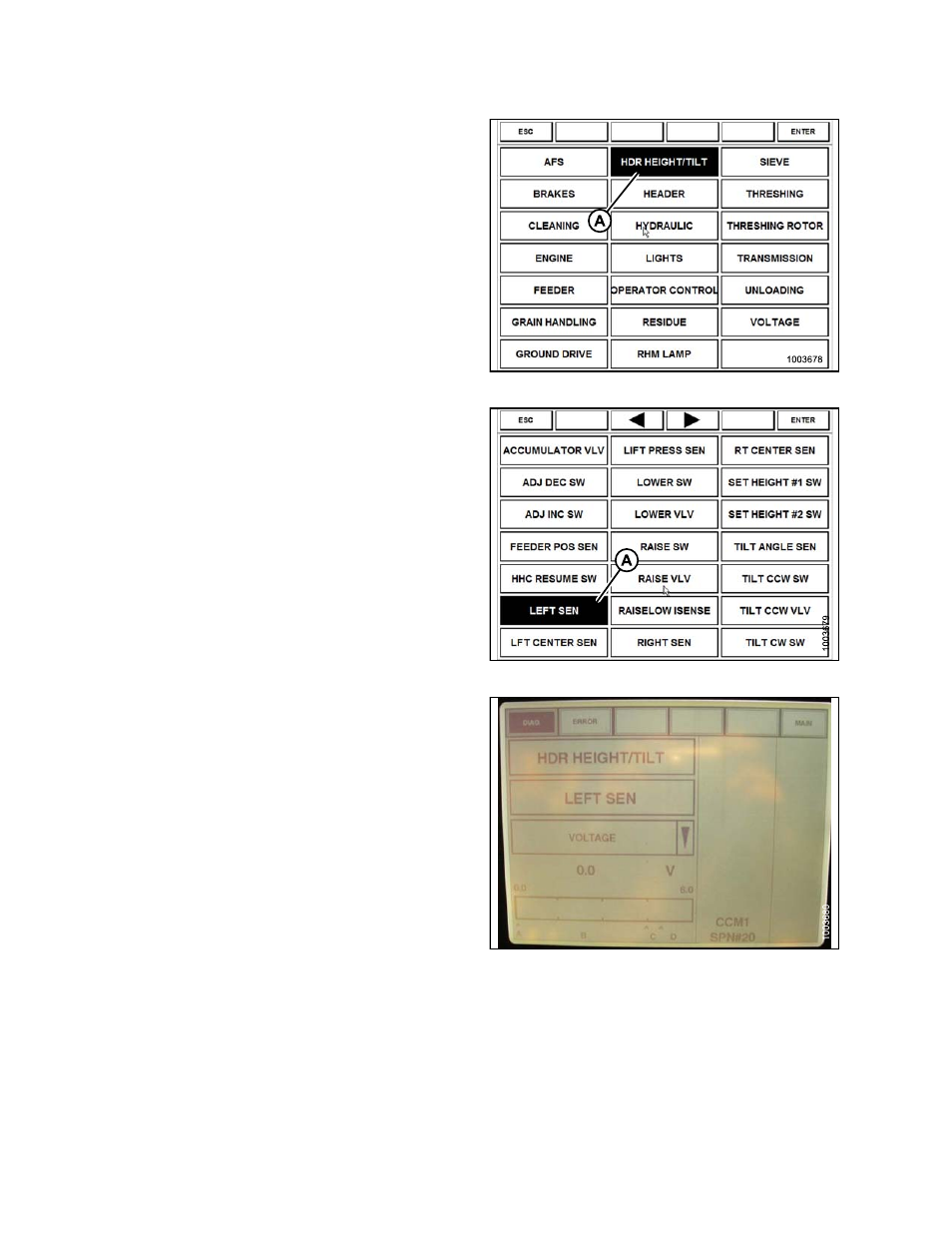

6. Select HDR HEIGHT/TILT (A). The SENSOR
window opens.
Figure 4.65: Combine Display
7. Select LEFT SEN (A). The exact voltage is displayed.
Raise and lower the header to see the full range of
voltage readings.
Figure 4.66: Combine Display
8. If the sensor voltage is not within the low and high
limits shown in
Height Sensor Output Voltage Range
– Combine Requirements, page 58 , or if the range
between the low and high limits is insufficient, you
need to make adjustments. For instructions, refer to
Adjusting Voltage Limits, page 60 .
Figure 4.67: Combine Display
Checking Voltage Range from the Combine Cab (Case IH 7/8010; 7/8/9120; 7/8/9230)
NOTE:
Changes may have been made to the combine controls or display since this document was published.
Refer to the combine operator’s manual for updates.
To check the sensor output voltage range from the combine cab for Pro 600 Display, follow these steps:
