Lift divider off endsheet and store as follows:
a.
Locate pin (A) on divider in hole in endsheet at
location shown.
b.
Lift divider and locate lugs (B) on divider into
bracket on endsheet. Ensure lugs engage bracket.
6.
Close/replace header endshields.
Refer to

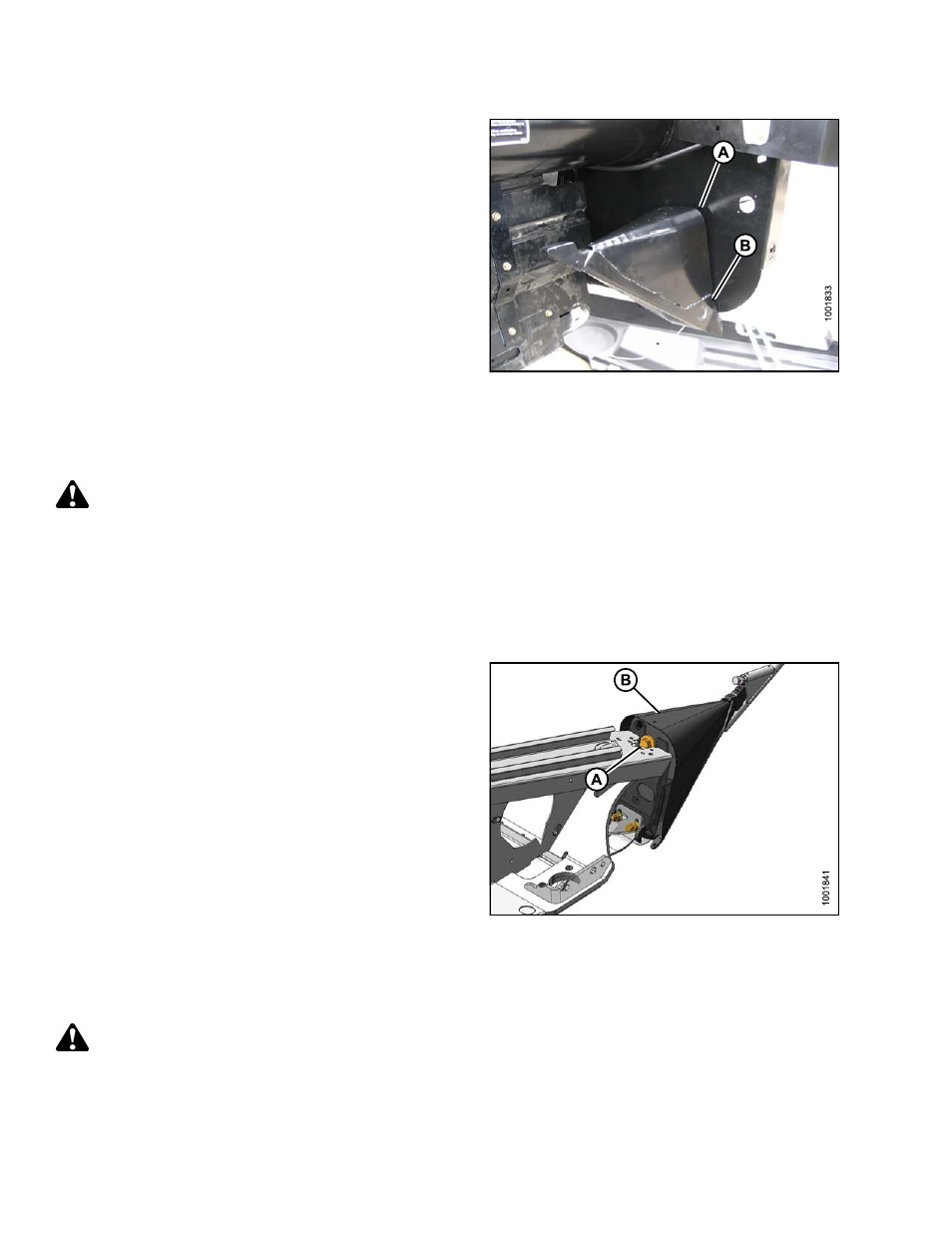

Figure 4.241: Stored Crop Divider
Removing Crop Dividers from Header without Latch Option
To remove crop dividers from a header without the latch option, follow these steps.
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under header for any reason. Refer to the combine
operator’s manual for instructions regarding the proper use and storage of header safety props.
1.
Lower reel, raise header, stop engine, remove key, and engage safety props. For instructions, see your combine
operator’s manual.
2.
Open/remove header endshields. Refer to
.
3.
Remove bolt (A), lock washer and flat washer.
4.
Lower divider (B) and lift off endsheet.
5.
Close/replace header endshields.
Refer to
Figure 4.242: Crop Divider
Installing Crop Dividers on Header with Latch Option
To install crop dividers on a header with the latch option, follow these steps.
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under header for any reason. Refer to the combine
operator’s manual for instructions regarding the proper use and storage of header safety props.
