4.
On the RH side of the header, place the inner end
of the inner half of the tow-bar in cradle (A) on
header backtube.
5.
Secure tube end in support (B) with clevis pin (C).
Secure with hairpin.
6.
Install rubber strap (D) on cradle (A).

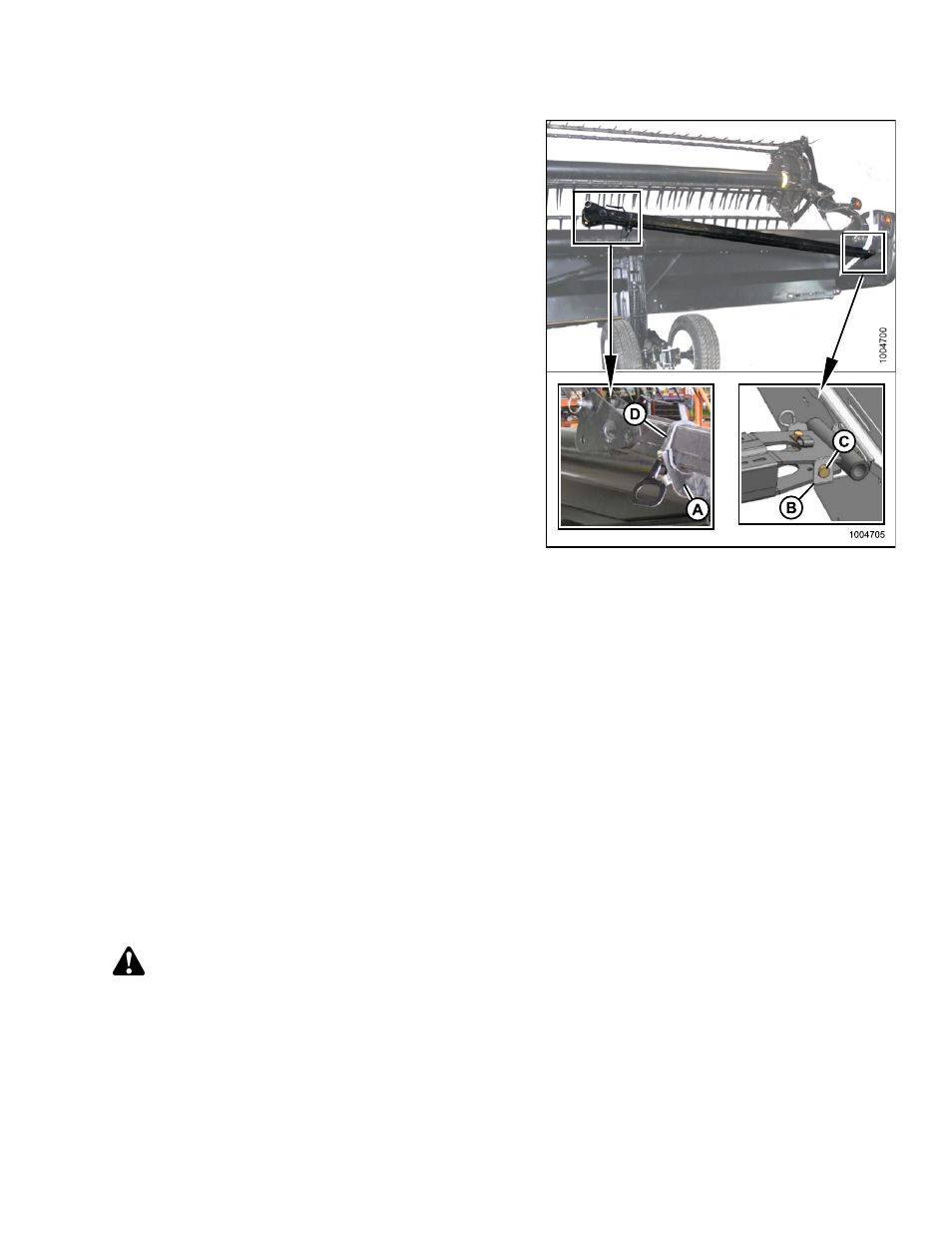

Figure 4.261: Tow-Bar Storage
A - Cradle
B - Support
C - Clevis Pin
D - Rubber Strap
7.
Attach header to combine.
Refer to
Attachment/Detachment, page 189
8.
Put front and rear transport wheels into field position.
Refer to:
•
Moving Front (Left) Wheels into Field Position, page
•
Moving Rear (Right) Wheels into Field Position,
Moving Front (Left) Wheels into Field Position
To move the front (left) transport wheels into field position, follow these steps.
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under header for any reason. Refer to the combine
operator’s manual for instructions regarding the proper use and storage of header safety props.
1.
Raise header fully. Engage header safety props.
