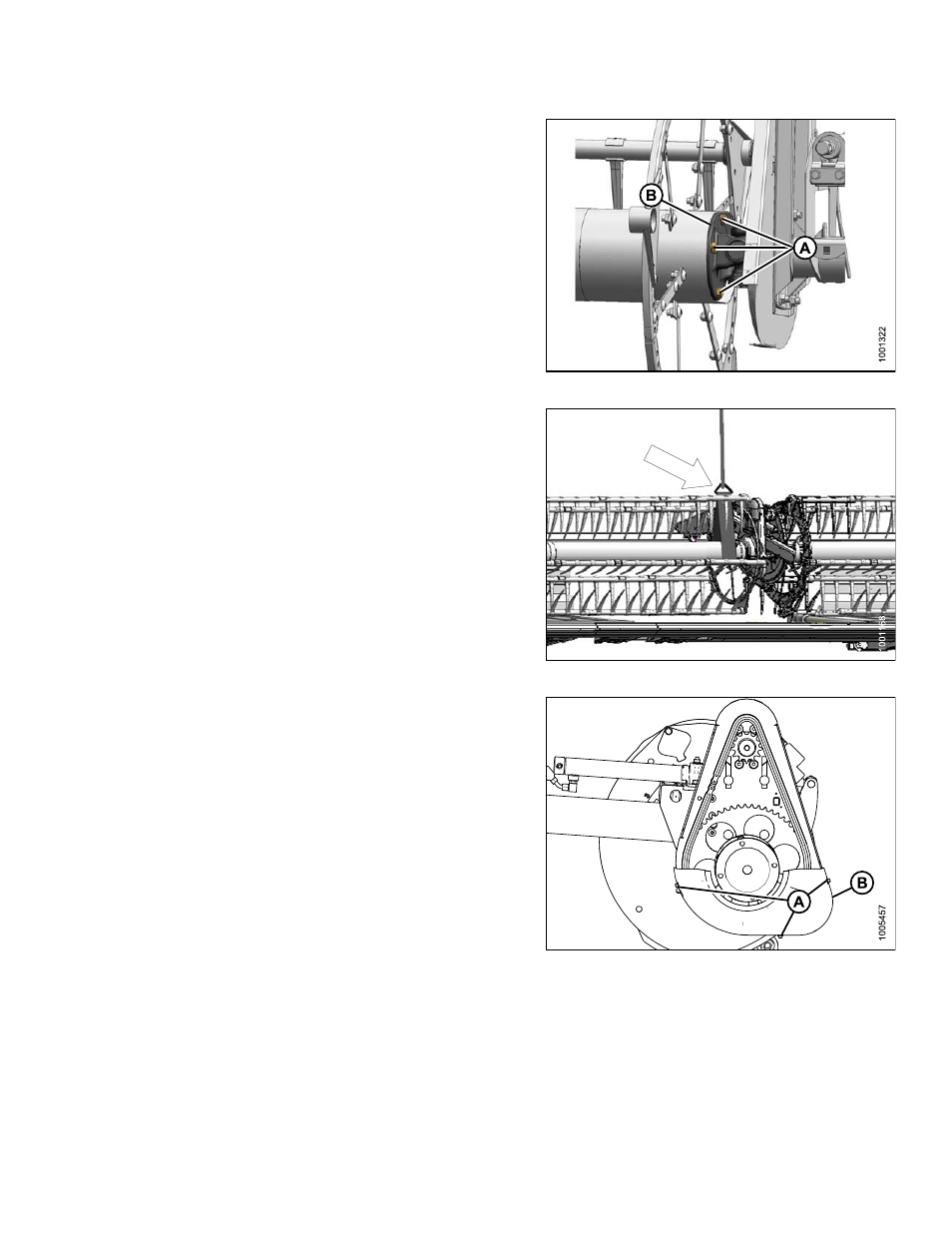

2.
Position right-hand reel tube against reel drive and
engage stub shaft into U-joint pilot hole.
3.
Rotate reel until holes in end of reel tube and U-joint
flange (B) line up.
4.
Install four bolts (A) and torque to 70–80 ft·lbf
(95–108 N·m).
Figure 6.233: U-Joint
5.
Remove temporary reel support.
Figure 6.234: Supporting Reel
6.
Install lower cover (B) with three screws (A).
Figure 6.235: Drive Cover
169894
365
Revision A
