Cam Position 2, Reel Position 3 or 4 is the recommended
starting position for most crops and conditions.
• This setting gives a fingertip speed approximately 20%
faster than the reel speed.
• If crops tend to stall on the cutterbar with the reel in a
forward position, the cam setting should be increased to
push the crop past the rear edge of the cutterbar.
• If the crop getting fluffed, or the flow across the drapers
is disrupted, the cam setting should be decreased.

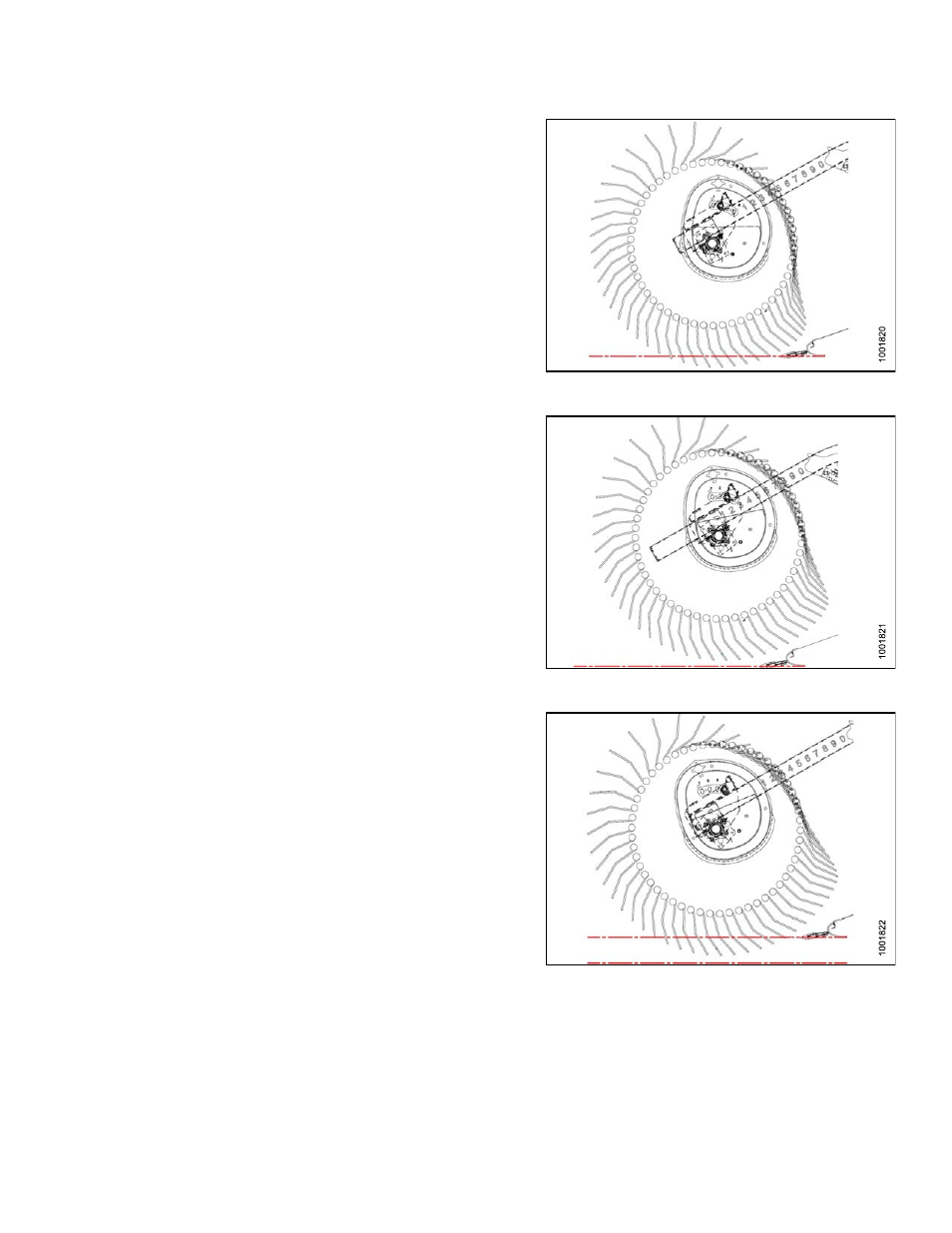

Figure 4.235: Finger Profile - Position 2
Cam Position 3, Reel Position 6 or 7 are mainly used to
leave long stubble.
• This position allows the reel to reach forward and lift the
crop across the knife and onto the drapers.
• This setting gives a finger tip speed approximately 30%
faster than the reel speed.
Figure 4.236: Finger Profile - Position 3
Cam Position 4, Reel Position 2 or 3 is used with the reel
fully forward to leave the maximum amount of stubble in
lodged crops.
• This position allows the reel to reach forward and lift the
crop across the knife and onto the drapers.
• This setting gives a finger tip speed approximately 35%
faster than the reel speed.
Figure 4.237: Finger Profile - Position 4
