Commissioning
Course program
Type of command − Branch (Line)
5
l
84 SW−HB 13.0002−EN 4.1
positioning (10), the course program changes to the following status.
Assuming that "Go to line immediately" has been selected for NEXT1/2, the NEXT1/2
inputs will already be polled in the active positioning process. It is furthermore assumed
that the NEXT1/2 signal will become active before positioning has been completed. The
inputs will be evaluated and the program will jump to the corresponding course program
line (Next line 1 or 2, depending on whether NEXT1 or NEXT2 has been active first) and
process it.
t
1
t
2
t
3
t
4
t
5
t
6
t
7
931E_114

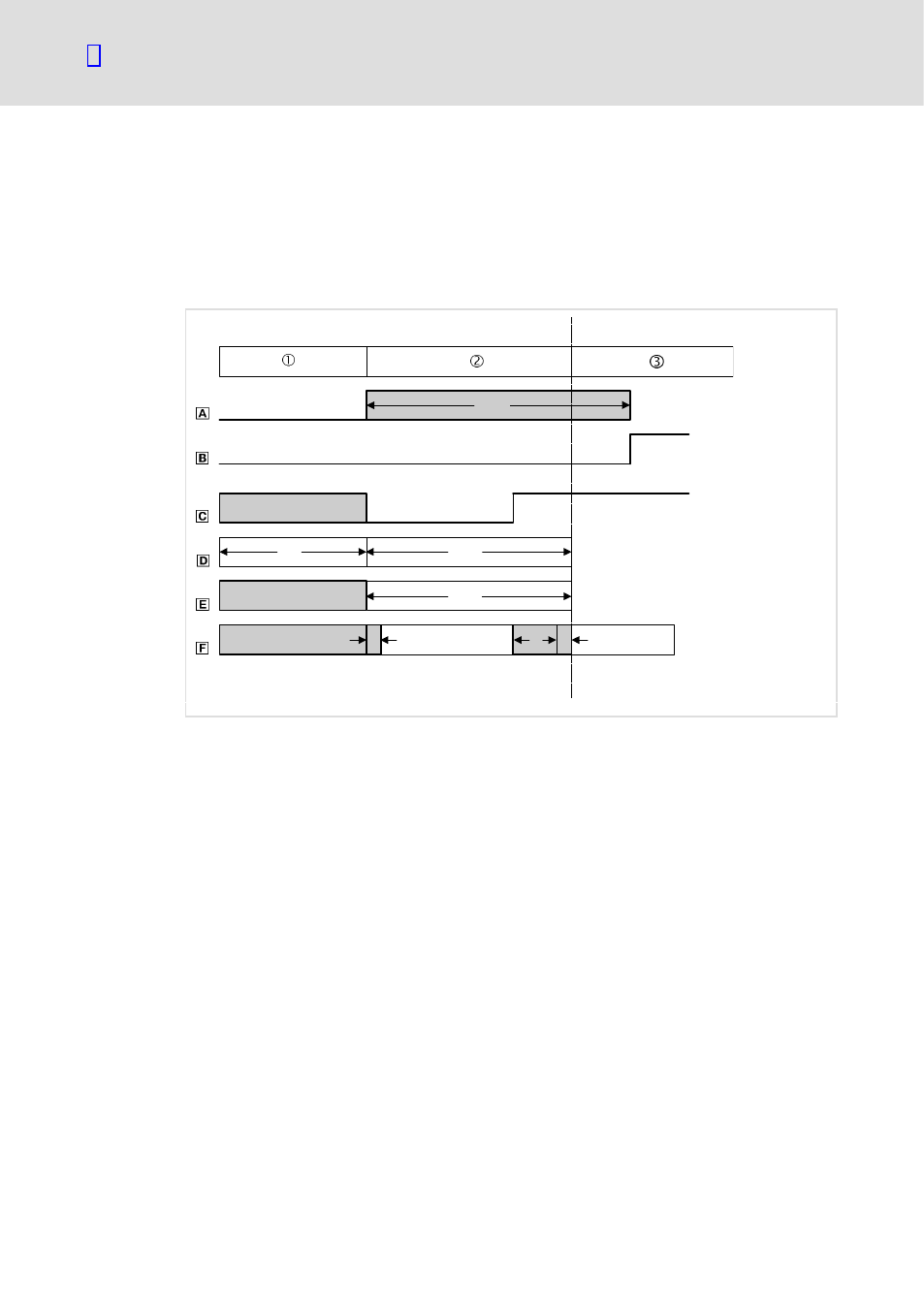

Fig. 10 Time chart − branch (line)
 Program step 10
‚ Program step 11
ƒ Program step X/Y
0 Positioning
1 Target reached
2 NEXT1/2 edge found
3 DOUT1/2=HIGH/LOW
4 DOUT1/2=Target reached/remaining path
5 Course program activities
t
1
Approach position (program step 10)
t
2
DOUT1/2=HIGH/LOW program step 10
t
3
DOUT1/2=HIGH/LOW program step 11
t
4
Target reached/remaining path (positioning program step PS 10)
t
5
Approach new position
t
6
Evaluate NEXT1/2
t
7
Calculate new jump destination
