Oszilloskop

Oscilloscope window

8

l

119

SW−HB 13.0002−EN 4.1

8.2

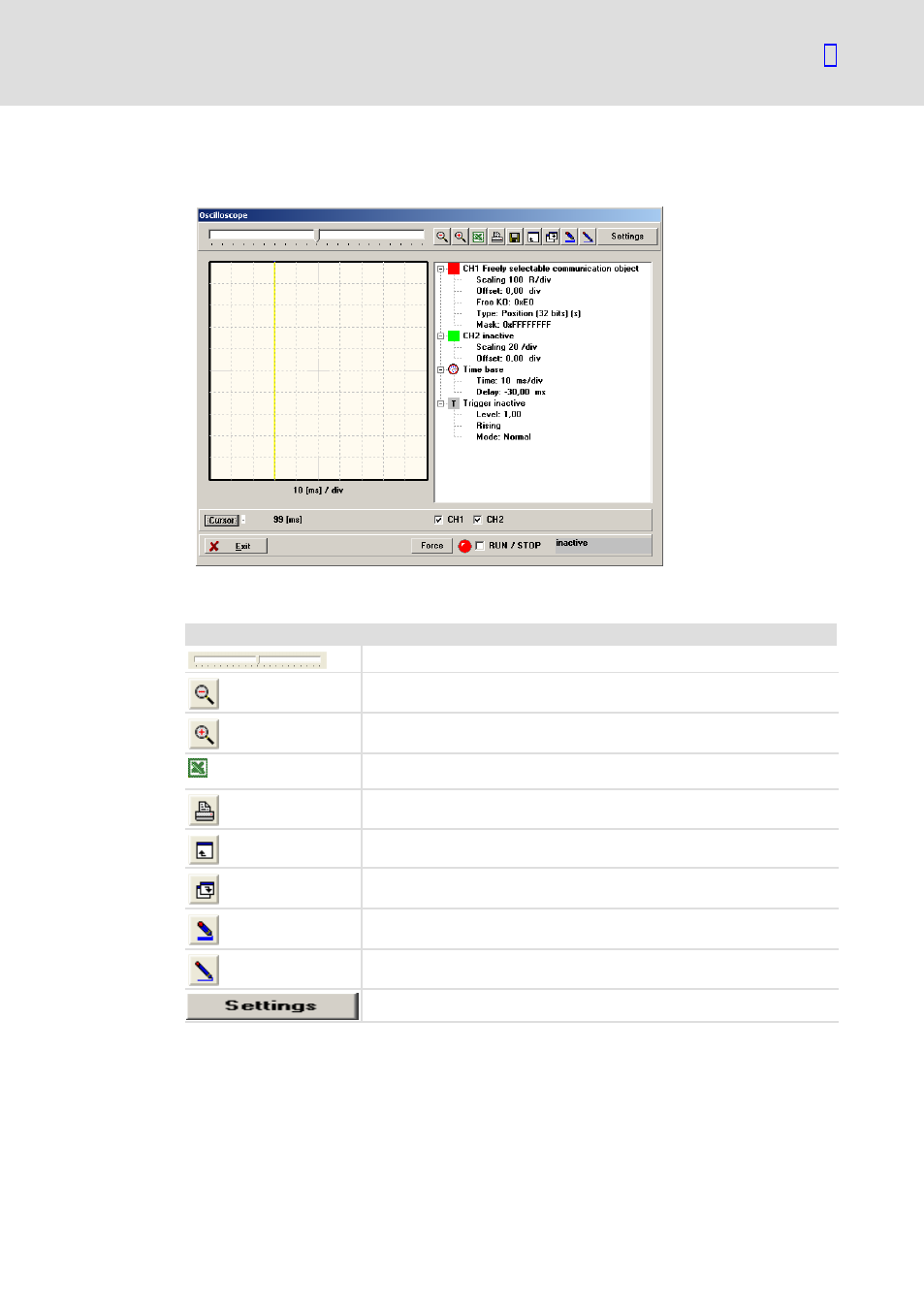

Oscilloscope window

931e_272

The oscilloscope is equipped with the following buttons to activate activities:

Commands and functions

Shifts the indicated section in horizontal direction

Stops the zoom function

Zoom function: Help text

Activates Excel and generates a worksheet with the measured values of the last
measurement (Excel must be installed on your PC)

Prints the oscilloscope window

Maximises the oscilloscope window

Minimises the oscilloscope window

Thick lines in oscilloscope display

Thin lines in oscilloscope display

Activates the Oscilloscope Settings window
