Lenze EtherCAT control technology - Manual (Page 68)

Control technology | EtherCAT communication manual
Commissioning of the system
Detailed commissioning steps
68
L
DMS 3.1 EN 01/2011 TD17
7.2.8 Configuration in the »PLC Designer«
The »PLC Designer« serves to illustrate the field device topology in the control
configuration.

Tip!
Nodes at other fieldbus systems can be configured in the »PLC Designer«.
EtherCAT with CANopen or PROFIBUS
( 91)
7.2.8.1 Set-up of control configuration

How to set up the control configuration in the »PLC Designer«:
1. Create a new »PLC Designer« project:
• Menu command: FileNew

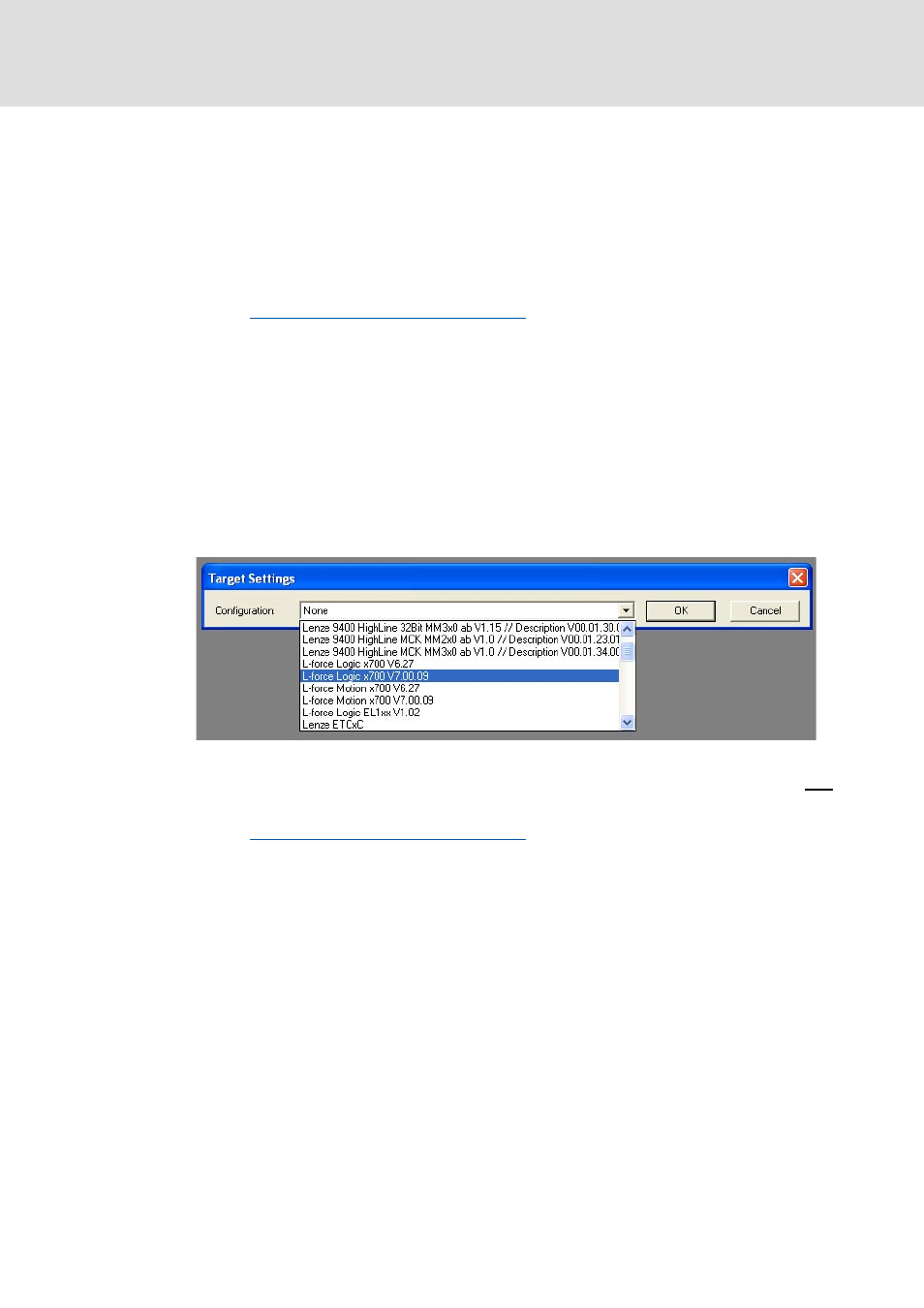

2. Select the suitable target system from the Target Settings dialog box:
• L-force_Logic_x700_Vx.xx.xx for Logic target systems
• L-force_Motion_x700_Vx.xx.xx for pure Motion target systems or Motion- and
Logic target systems
EtherCAT with CANopen or PROFIBUS
( 91)
3. Confirm the configuration of the target system setting by clicking the OK button.
