7 Electrical connection

78

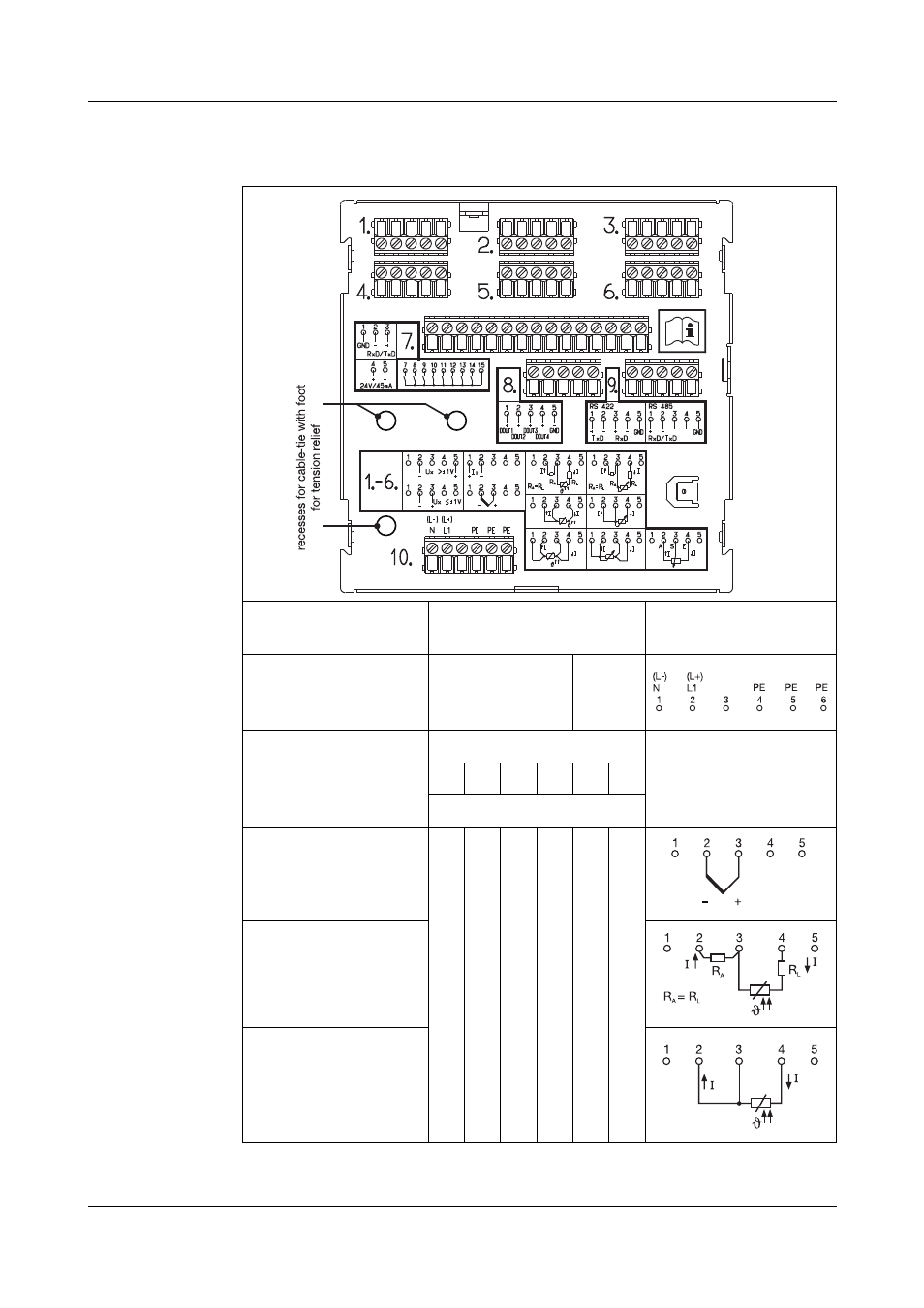

7.3 Connection diagram

Rear view of
3/6-channel
version

Terminal assignment
3/6-channel version

Terminal symbol

Supply as on label

N neutral
L1 line
PE earth

field

10.

Analogue inputs

Inputs

1

2

3

4

5

6

field

Thermocouple

Resistance
thermometer
in 2-wire circuit

1.

2.

3.

4.

5.

6.

Resistance
thermometer
in 3-wire circuit
