3 Operation and visualisation

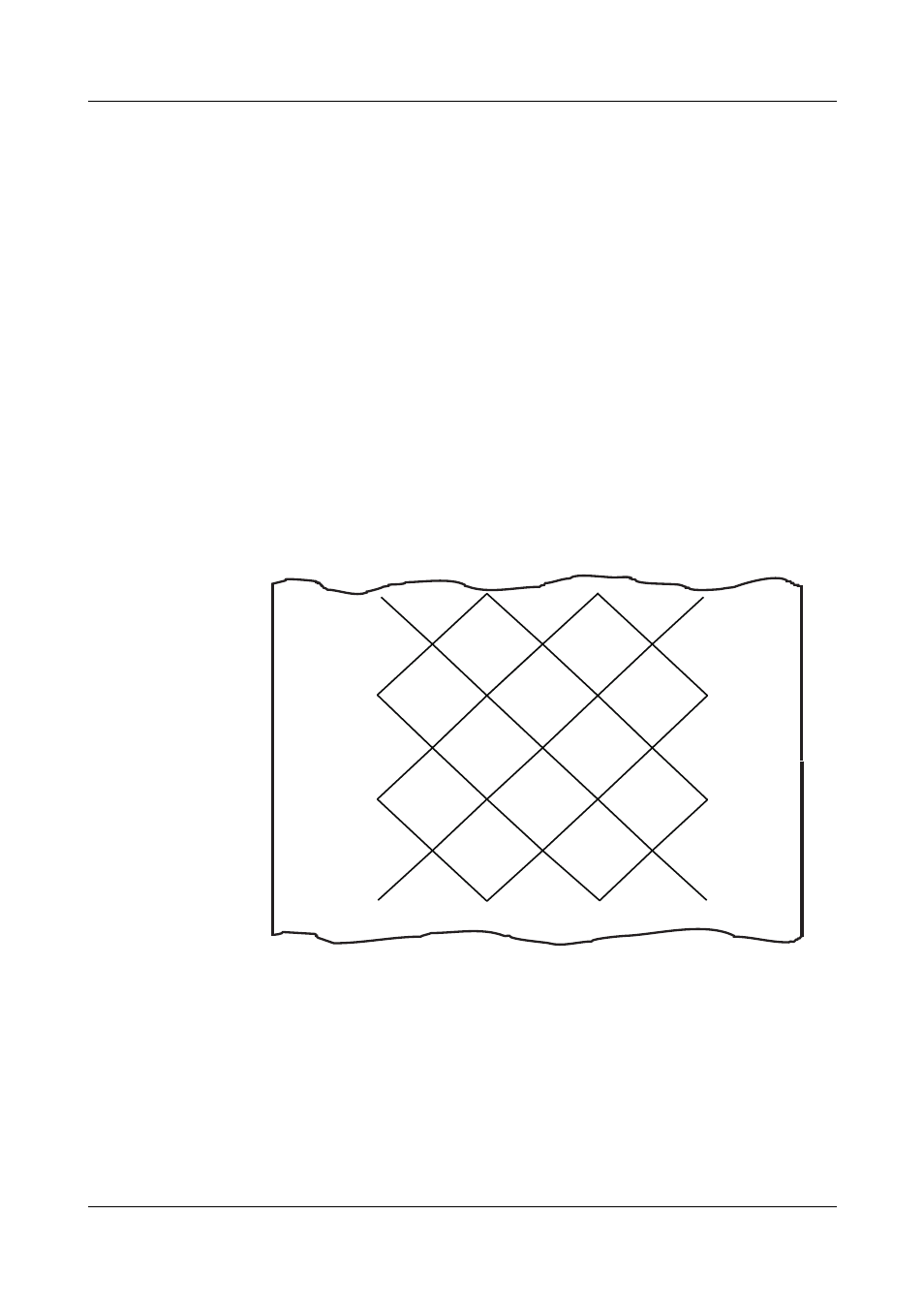

3.5.13 Print test
The print test can only be initiated from the keys on the printing recorder (Op-
erating level
Î Print test). It is used to test the function of the printing system
and the print head.
Six traces will also be printed out for the 3-channel version of the recorder,
since each colour occurs twice. This means that the functioning of all the pens
is tested. In this case, the parameter Configuration level 1
Î Plot status has no
effect.
H
The print test carries on until it is stopped by Test print = Off.
H
Any text prints which have been started will be aborted and not
continued after the print test. This also applies to the statistical re-
port.
H
All requests for text printing which occur during the print test will
be stored and carried out after the print test.
_13.25 03.11.98 Print test
