2 Instrument description
14
For all alterations to the parameters (sub-parameters):
Confirmation of
parameters If there are no further sub-parameters available, then
E transfers all the
data which belong to the parameter into the memory.
Abort
programming Inside a parameter, programming can be abandoned by pressing the
e key.
Error messages
during
programming If error messages occur during programming, as a result of erroneous entries,
then these messages must be acknowledged with
E before the program-
ming can be taken up again.

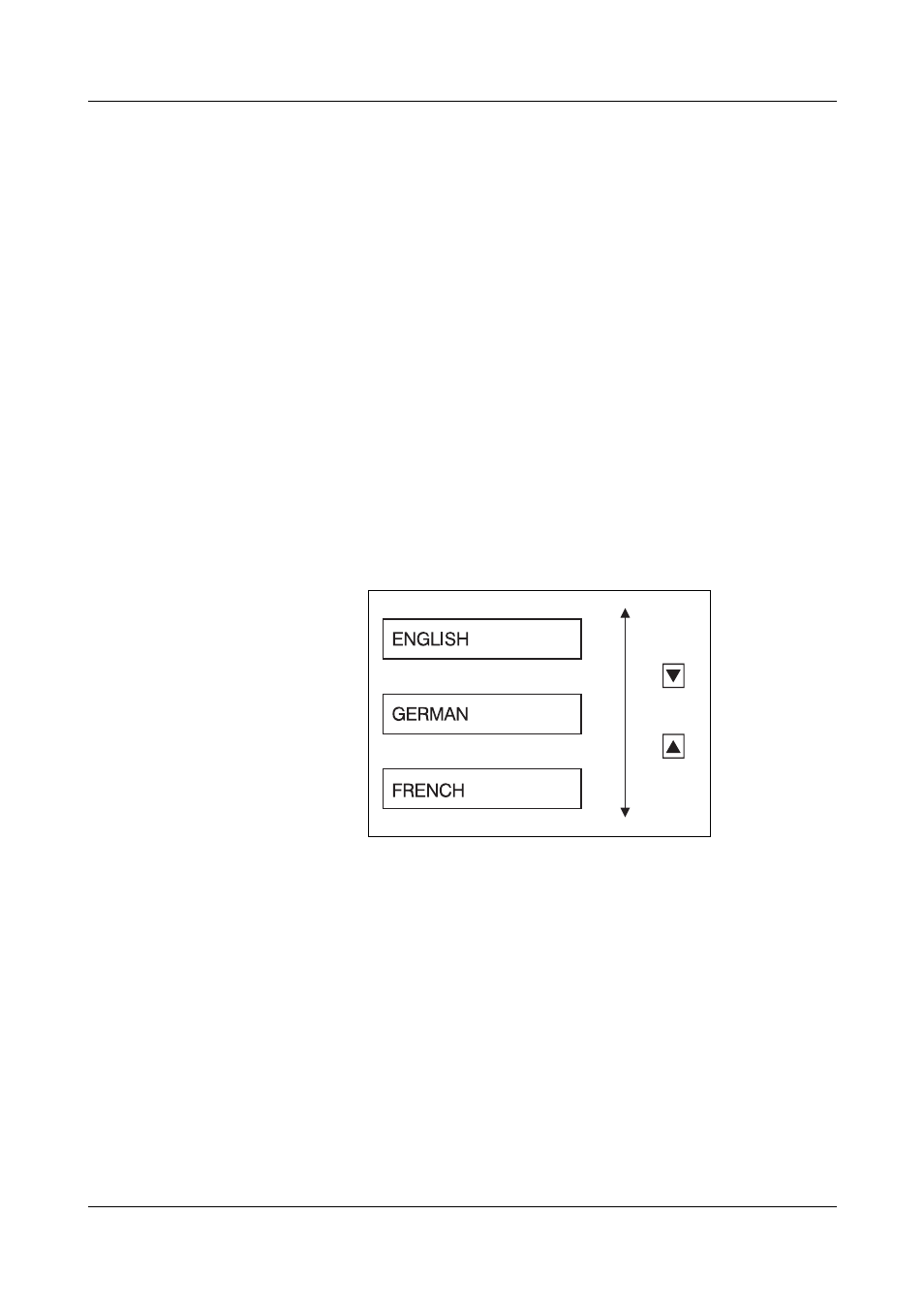

Selection A selection consists of a list of several options:
Three keys are used to select an option:
h Select the option with the h and R keys
h Confirm the selection with E
H
If the last sub-parameter has not been confirmed, then the data
which were already edited for the parameter will be abandoned.
The old values for the sub-parameters will be retained.
