7 electrical connection, 1 installation notes, Electrical connection – JUMO 706030 LOGOPRINT 500 Printing Recorder Operating Manual User Manual

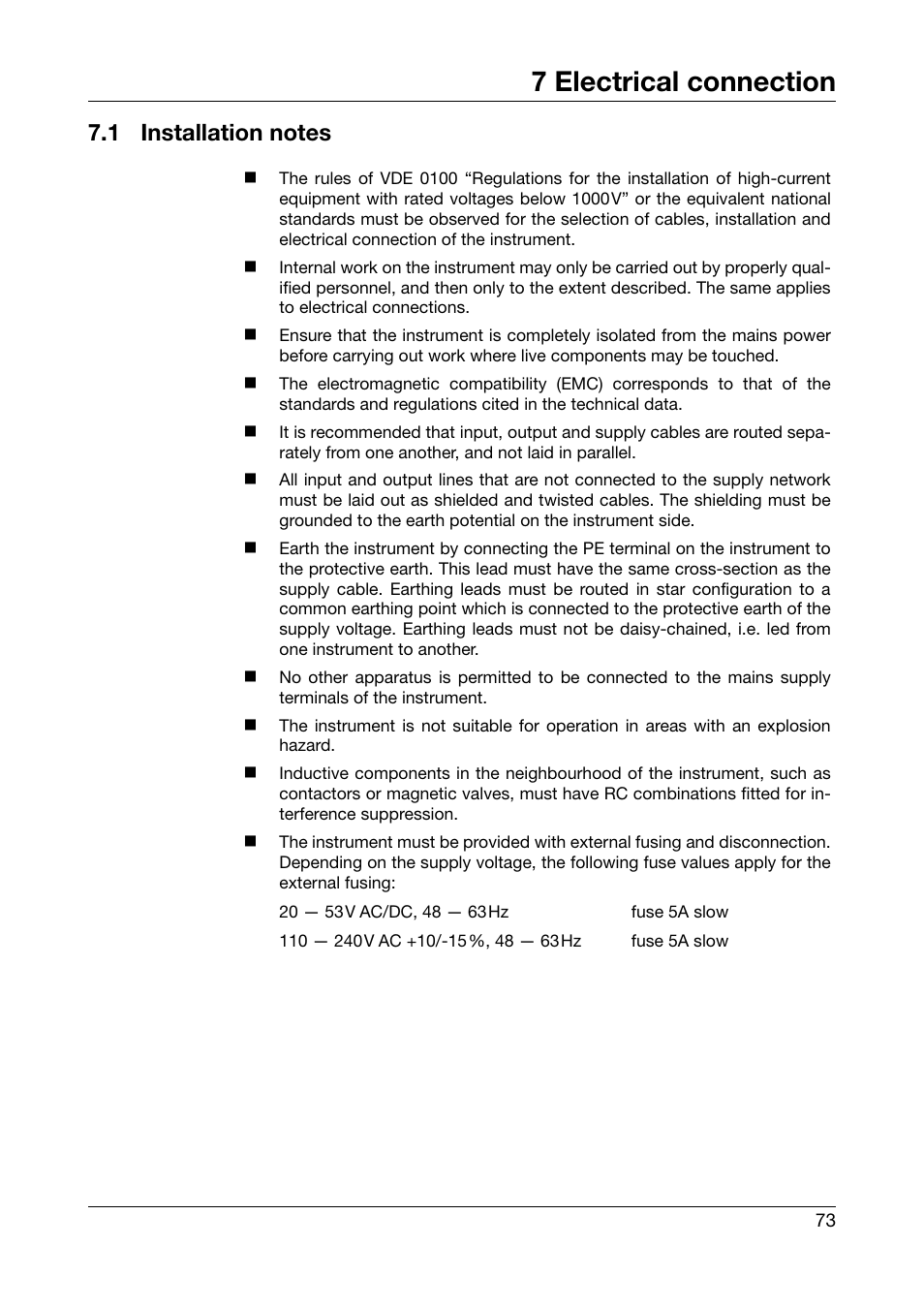

Page 73: Installation notes
