2012-12-01/00561071 [SCR Power Controller TYA201]

51

5 Configuration

5.1 Configuration level

The configuration level contains parameters for configuring the power control-
ler.
If the parameters at this level are modified during operation, the power control-
ler is locked (inhibit) as a result. In this state, it does not provide any power.
When the configuration level is exited, a restart (reset) is performed and the
power controller provides the required power once again.

This level can be locked with a password.
However, no password is set ex works.

The configuration level can be accessed from the overview of measured val-
ues by pressing the following keys:

h In the measured value overview, press the

key

h Select the configuration level and press

.

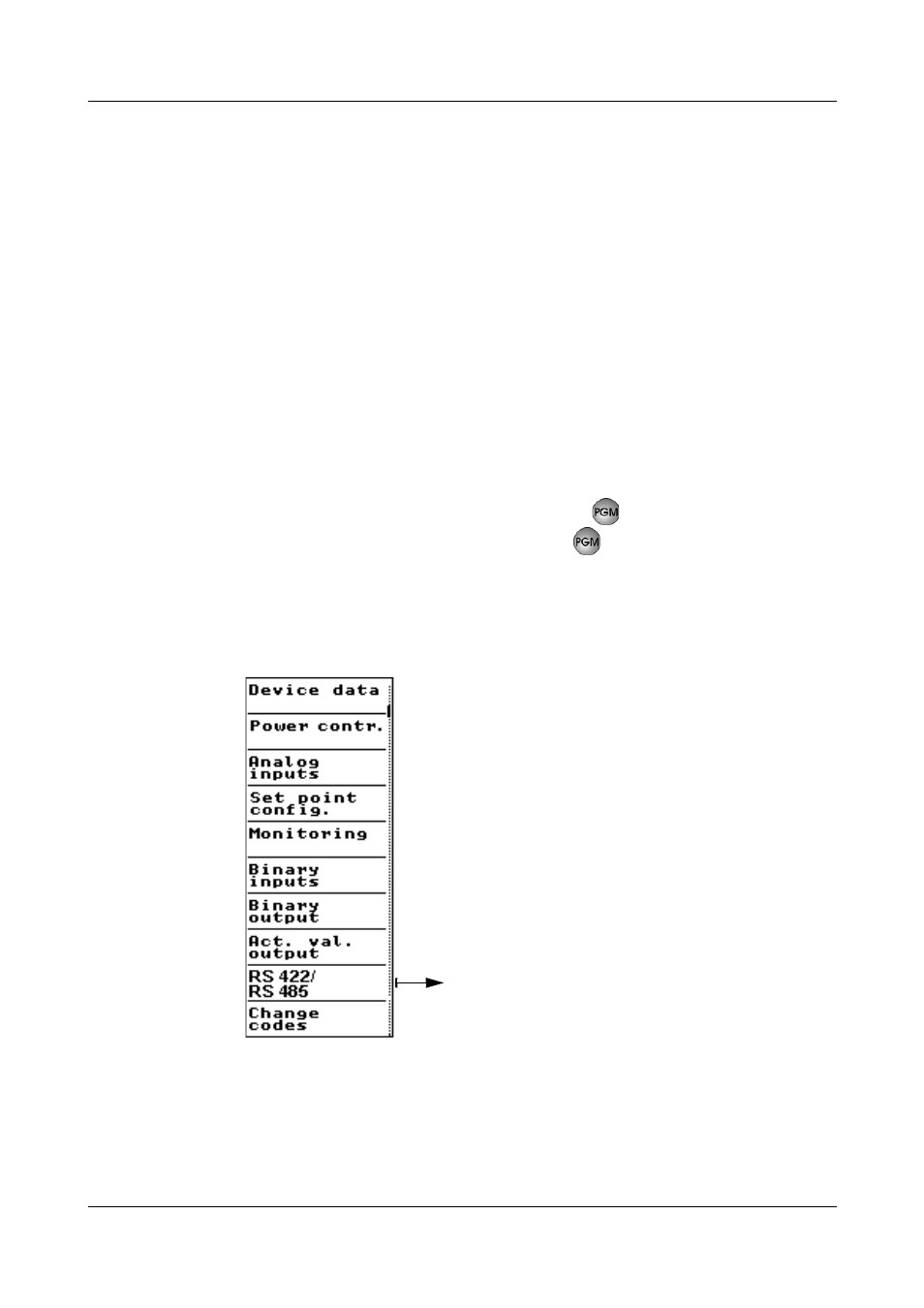

The parameters are combined in the following groups, which are explained in
detail as sub-chapters in the tables on the following pages.

Parameter
groups

H

All parameters for the maximum device extension level are listed in the fol-
lowing tables. Depending on the device version (see nameplate) or configura-
tion, parameters that are not required are hidden.

or PROFIBUS-DP

v Chapter 5.1.1 "Device data"
v Chapter 5.1.2 "Power control-

ler"

v Chapter 5.1.3 "Analog inputs"

etc.
