2012-12-01/00561071 [SCR Power Controller TYA201] 105

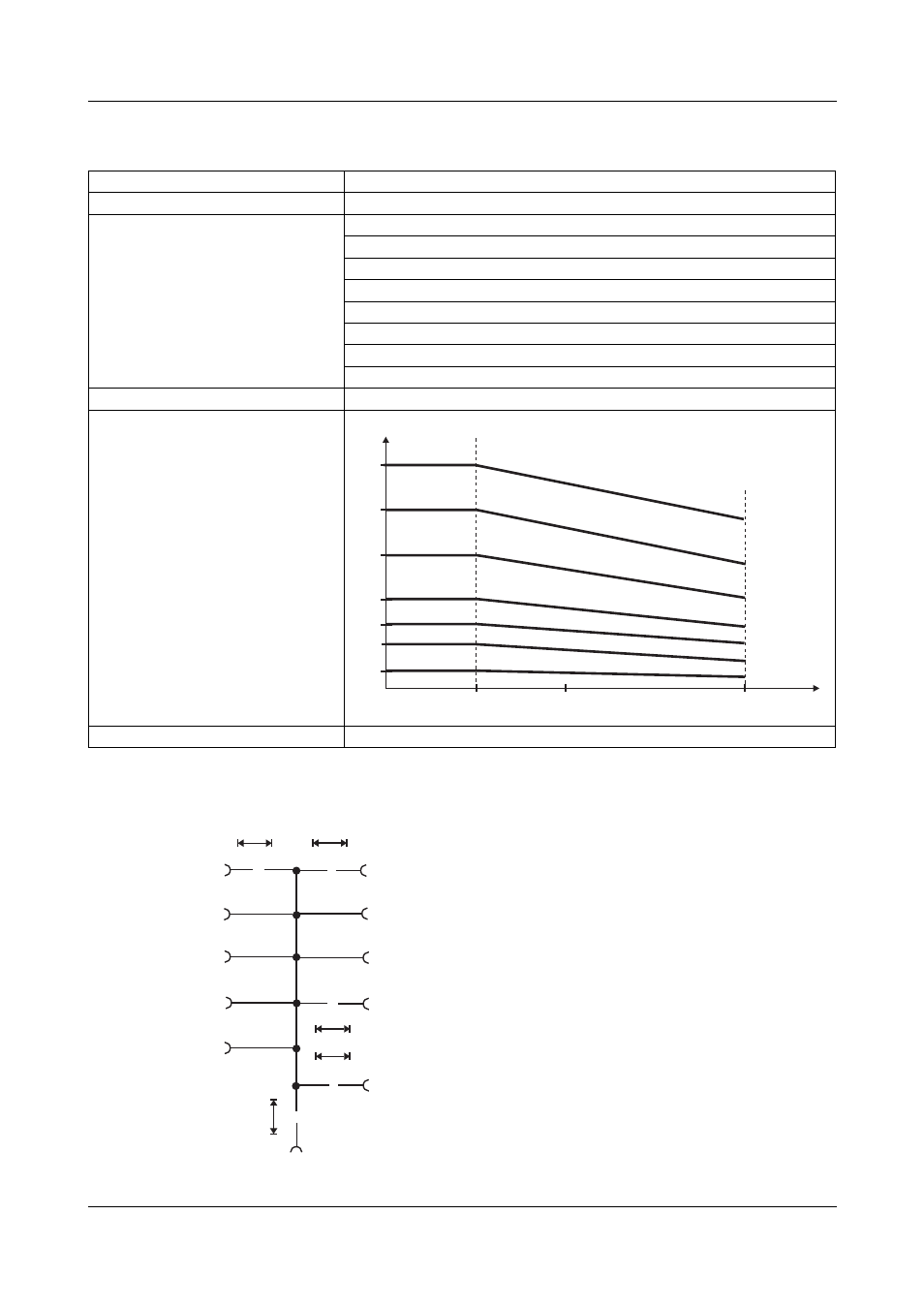

10 Technical data
10.1 Voltage supply, load current
10.2 Electrical isolation
Voltage supply Corresponds to the load voltage selected for the device type
Control section power consumption max. 20 VA
Load voltage U
L rms
AC 24 V -20 % to +15 %, 45 to 63 Hz
AC 42 V -20 % to +15 %, 45 to 63 Hz
AC 115 V -20 % to +15 %, 45 to 63 Hz
AC 230 V -20 % to +15 %, 45 to 63 Hz
AC 265 V -20 % to +15 %, 45 to 63 Hz
AC 400 V -20 % to +15 %, 45 to 63 Hz
AC 460 V -20 % to +15 %, 45 to 63 Hz
AC 500 V -20 % to +15 %, 45 to 63 Hz
Load current U
L rms
AC 20, 32, 50, 100, 150, 200, 250 A
Admissible load current
depending on the
ambient temperature
Load type Resistive and resistive/inductive loads
45 50 60
75
20
200
T/°C
150
Load current in A
Reduction at a temperature of 45 °C:
2 %/kelvin
70 % 250
100
50
AC 3800 V
AC 3800 V
AC 350 V AC 350 V
PROFIBUS-DP
RS422/485 or
serial interface
Actual value output
standard signal
Voltage output
DC 10 V
Binary output
Relay or optocoupler
Load connection
U1, U2
Display and keypad
Binary input 1, 2
floating contact
USB Interface
Analog input
0(4)
20 mA to
Analog input
0(2) to 10 V, 0
5 V
or SSR
to
Voltage supply
»
» »
»
»
