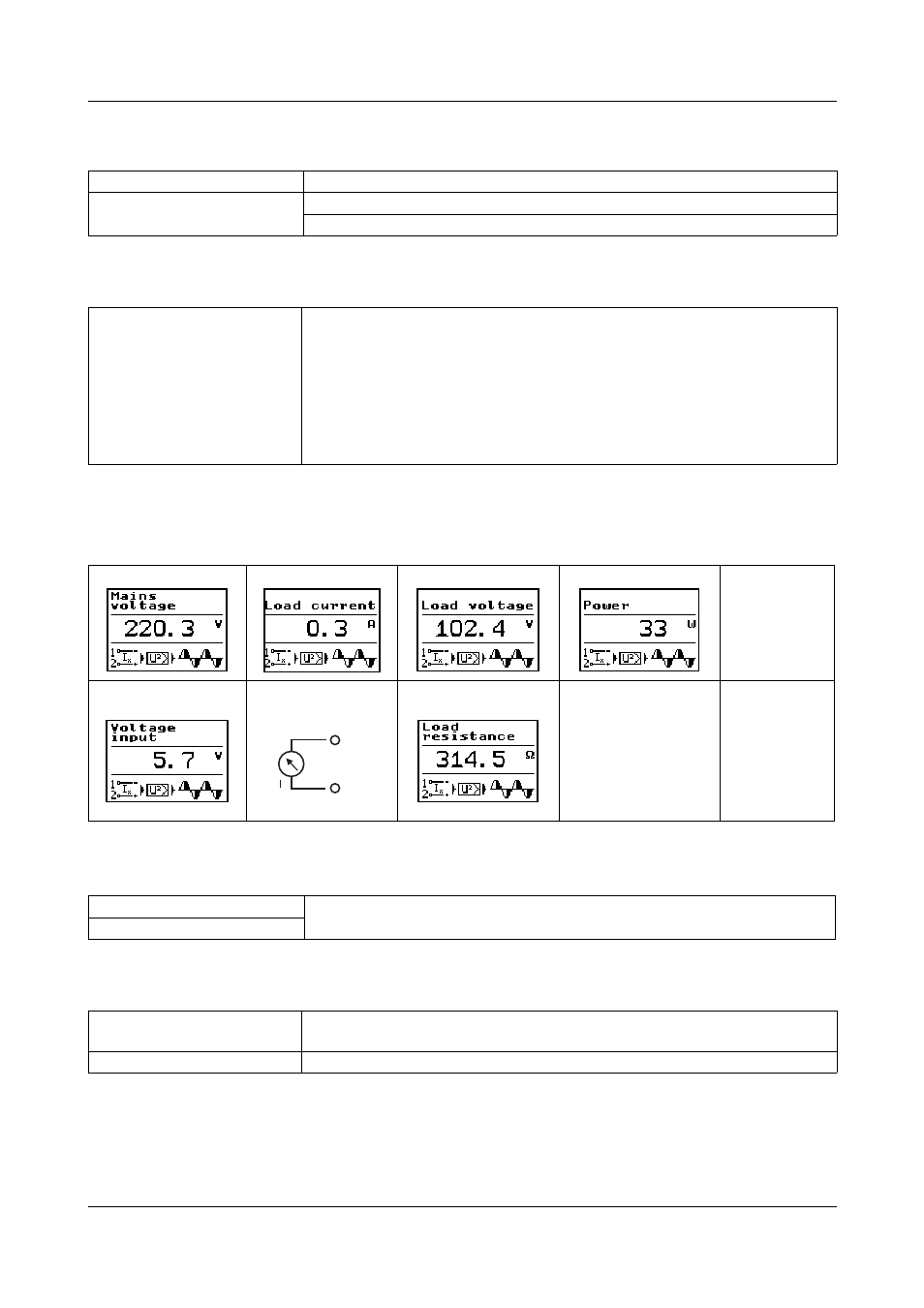

10 Technical data

106

2012-12-01/00561071 [SCR Power Switch TYA201]

10.3 Analog inputs

10.4 Analog output (actual value output)

10.4.1Display and measuring accuracy

All specifications refer to the controller nominal data.

10.5 Binary inputs

10.6 Binary output (fault signal output)

Current

0 (4) to 20 mA R

i

= 50

Ω

Voltage

0 (2) to 10 V R

i

= 25 k

Ω

0 (1) to 5 V R

i

= 25 k

Ω

Analog output

Switched off as standard.
I

max

= 20 mA for standard signal voltage: 0 to 10 V , 2 to 10 V,

0 to 5 V up to 1 to 5 V.
Burden max. 500

Ω

for standard signal current: 0 to 20 mA up to

4 to 20 mA

Depending on the device type, various internal measuring variables
such as load current, load voltage or power can be output.

Supply voltage: ±2.5 %

Load current: ±1 %

Load voltage:

±1% Power:

±2 %

Analog input
voltage/current:
±1 %

Analog output
voltage/current:
±1 %

Load resistance: ±2 %
(for resistive load)

12

11

+

Binary input 1

For connection to potential-free contact

Binary input 2

Relay (changeover contact)
without contact suppression

150 000 switching actions at a contact rating of 3 A/230 V 50 Hz (resistive
load) 1/10 HP, AC 277 V/AC 125 V Pilot duty D300, C300, R300

Optocoupler output

I

Cmax

= 2 mA, U

CEOmax

= 32 V
