2012-12-01/00561071 [SCR Power Controller TYA201]
35
3 Electrical connection

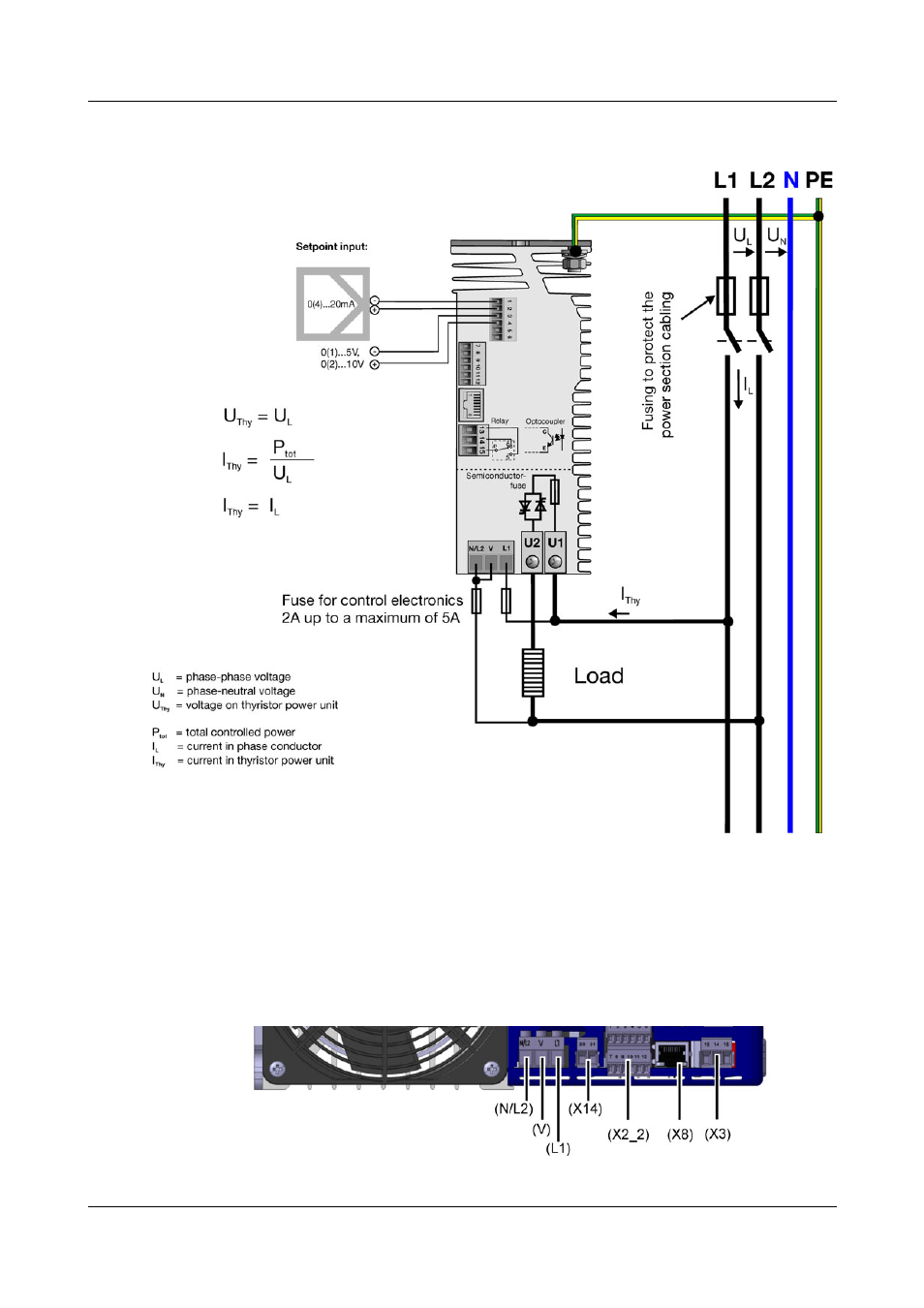

3.3.2 Single-phase operation: phase / phase
A
In the case of power controllers with a load current of 250 A, the fan terminal
X14 must also be supplied with the specified voltage!
The lead protection must be between 2 A and a maximum of 5 A.
