Setup and initial use
1.02
Laborota 4000/4001 efficient, 4010/4011 digital, 4002/4003 control
99

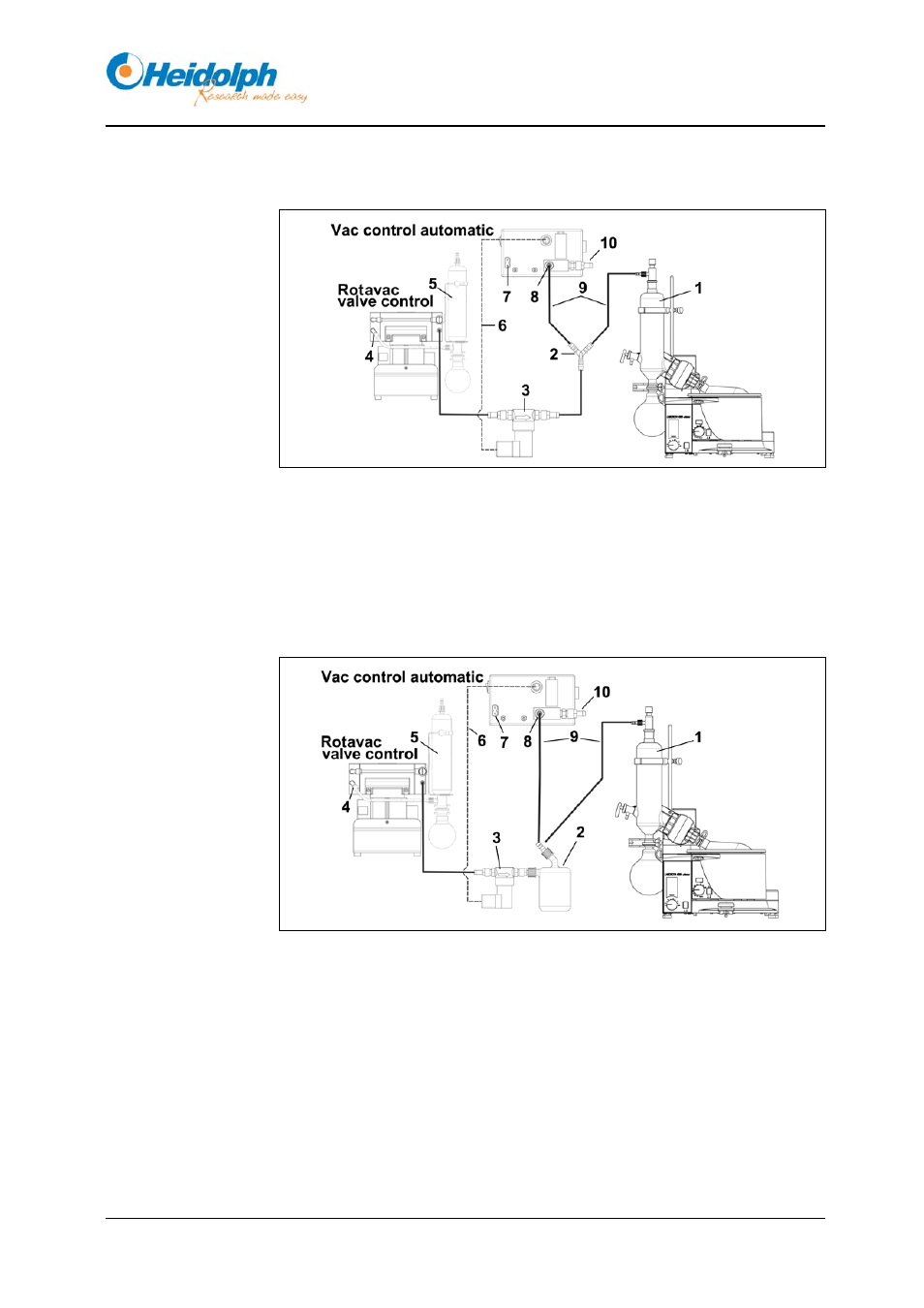

Hose routing of the individual vacuum systems
Fig. 4-17: Laborota 4000/4001 efficient, Laborota 4010/4011 digital with
Rotavac valve control and Vac control automatic
1 condenser
6 vacuum valve cable
2 Y-piece
7 power
connection
3 vacuum
valve
8 vacuum
connection
4 exhaust pump
9 vacuum hose
5 condensate cooler (optional)
10 aeration/inert gas
Fig. 4-18: Laborota 4000/4001 efficient, Laborota 4010/4011 digital with
Rotavac valve control and Vac control automatic and Woulff bottle
1 condenser
6 vacuum valve cable
2 Woulff bottle
7 power connection
3 vacuum
valve
8 vacuum
connection
4 exhaust pump
9 vacuum hose
5 condensate
cooler
(optional)
10 aeration/inert gas
Vacuum
connections
