Rough-in Conduit and Wiring

A Left I/O card is available for use with Echo

ACP and is required for use with Paradigm ACP

systems.

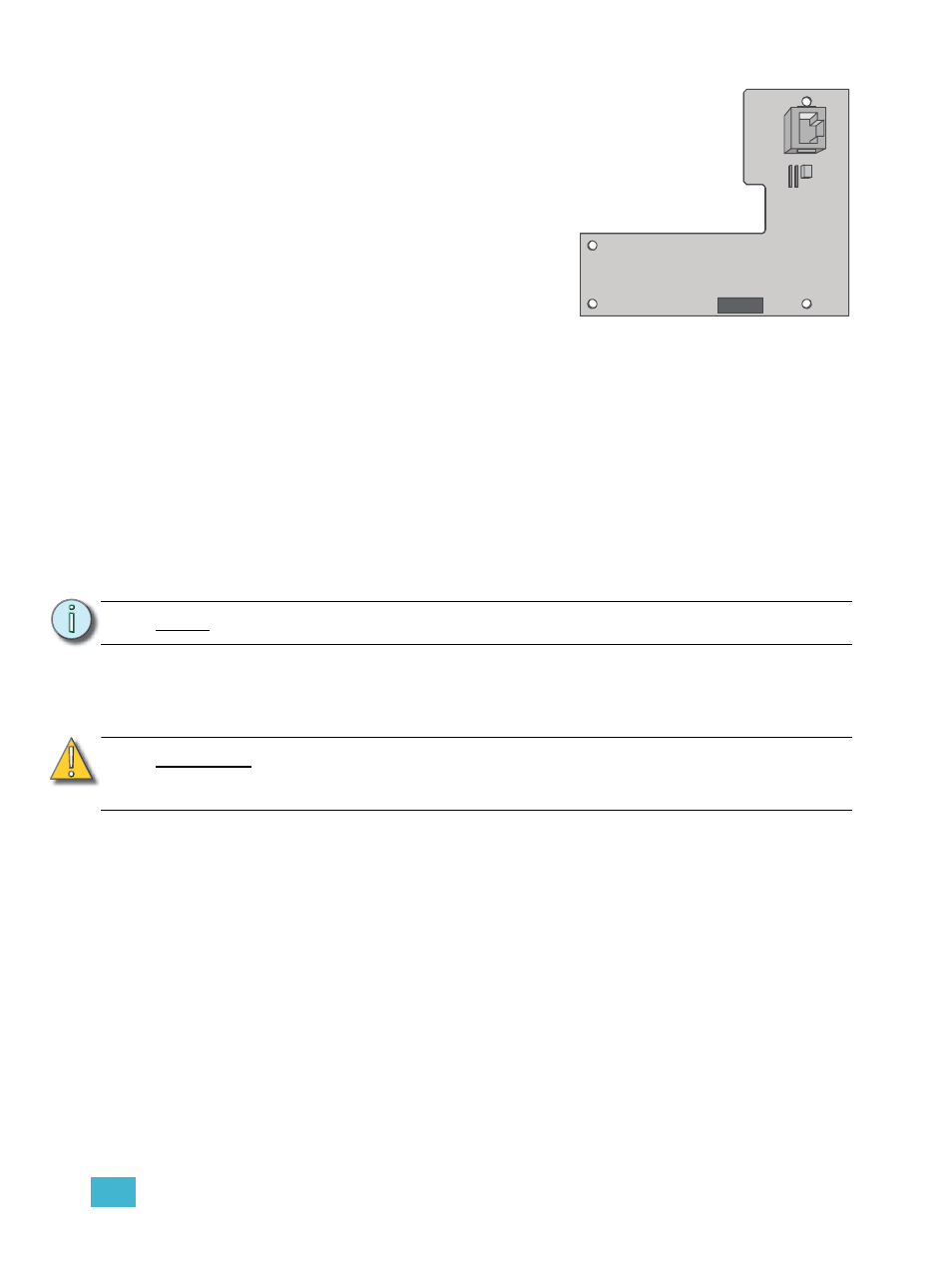

Optional Echo Left I/O

The Echo Left I/O board is available as an option

for use with the Echo Architectural Control

Processor and includes Ethernet connection.

Required Paradigm Left I/O

The Paradigm left I/O board is included with the

Paradigm ACP system and include terminations

for:

•

Ethernet

•

RS232 bi-directional serial

•

4 dry contact inputs

•

4 relay contact outputs

Procedure

Step 1:

Plan wire entry to the enclosure.

Step 2:

Make the desired conduit access (top, bottom, left or right) from the enclosure.

Read and comply with the label inside the enclosure which details the

recommended access locations for conduit entry.

Step 3:

Punch holes and install conduit fittings or insert lining materials in conduit

opening.

Step 4:

Be sure there are minimal air gaps.

N o t e :

Do not run power and control cable in the same conduit.

C A U T I O N :

Wire openings must have fittings, bushings, grommets or fiche paper lining

material to protect the wire and cable insulation from damage by sharp metal

edges, and to prevent air leaks.
