Terminate Wiring

19

DMX Input/Output Termination: Insulation Displacement Connectors

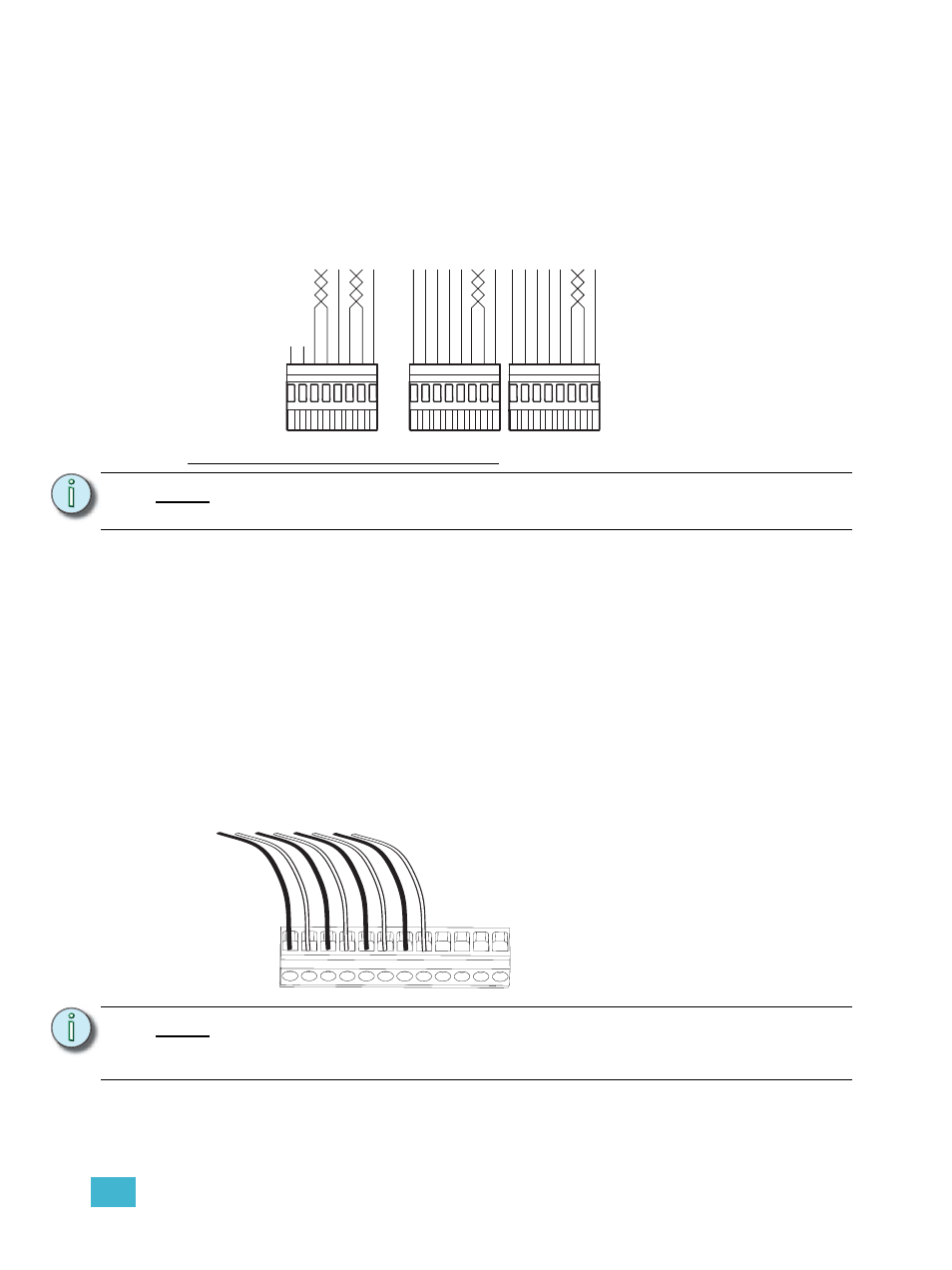

The graphic below illustrates DMX termination layout for an insulation displacement

connector (IDC). This connector type is intended for use with belden 1583A (or approved

equal, such as Category 5, 5E, or 6) cable type.

The insulation displacement connector kit (IDC) may be requested from the factory but is

not supplied as standard. Request the IDC Pluggable Connector Termination kit, part

number 4100A1013. Be aware that cable other than Belden 1583A may have different color

code for its wire pairs.

Terminate LinkConnect Control Wiring

Unison control stations communicate with the Paradigm Architectural Control Processor

using the Echelon

®

LinkPower network (LinkConnect). Termination is available for up to

twelve home runs of LinkPower data runs utilizing Belden 8471 cable (or its equivalent) plus

one 14 AWG (2.5mm

2

) ESD drain wire when the data cable is not installed in grounded

metal conduit.

LinkPower wiring is topology-free and polarity independent utilizing a LinkPower network.

Wiring may be bus, star, loop, home run or any combination of these. Total combined length

of LinkPower data runs cannot exceed 1,640 feet (500m), with a maximum distance of

1,313 feet (400m) between any two communicating devices. Without a repeater, no device

may be more than 1,313 feet (400m) away from the Architectural Control Processor.

Standard interoperability requires that there should be a maximum of only one station

repeater between any two LinkConnect devices. This means that only one repeater

module, whether a Paradigm Repeater module (P-REP) or a Paradigm Dual Repeater

Module (P-DREP), may be used per Paradigm Architectural Control Processor (P-ACP).

Step 1:

Pull Belden 8471 (or an equal type) control wiring into the ERn enclosure through

the conduit opening previously prepared.

N o t e :

All low voltage control cables must run in separate conduit from power wires in

accordance with local codes.

N o t e :

It is required that you terminate LinkPower station wiring and the auxiliary power

wiring to the ERn enclosure I/O board that will host the Paradigm Station Power

Module (P-SPM).

1

2

3

4

5

6

7

8

n/c

n/c

COM

Data +

Data -

O

RG

W/ORG

W/BRN

COM

Data +

Data -

O

RG

W/ORG

W/BRN
