70
Source Four LED Profile v1.6.0 User Manual
Studio Settings
Lustr+, Series 2 Lustr, and Studio HD
The Studio profile produces only white light that is adjustable in brightness, white point, and
tint (green/magenta balance). The Studio profile can be operated in a stand-alone mode
from the user interface or can be controlled via DMX.
Operation From Home Status Screen (Studio Standalone)
When operating without an external control signal, the intensity of the white light can be
adjusted immediately and directly by pressing the UI buttons on the fixture while on the
home screen. In this setup, all the UI buttons change their functions from other setups.
Icons on the screen indicate which buttons to use for the settings.
When fixtures are connected together and there is no control signal, all adjustments that
you make on one fixture are automatically made on the connected fixtures.

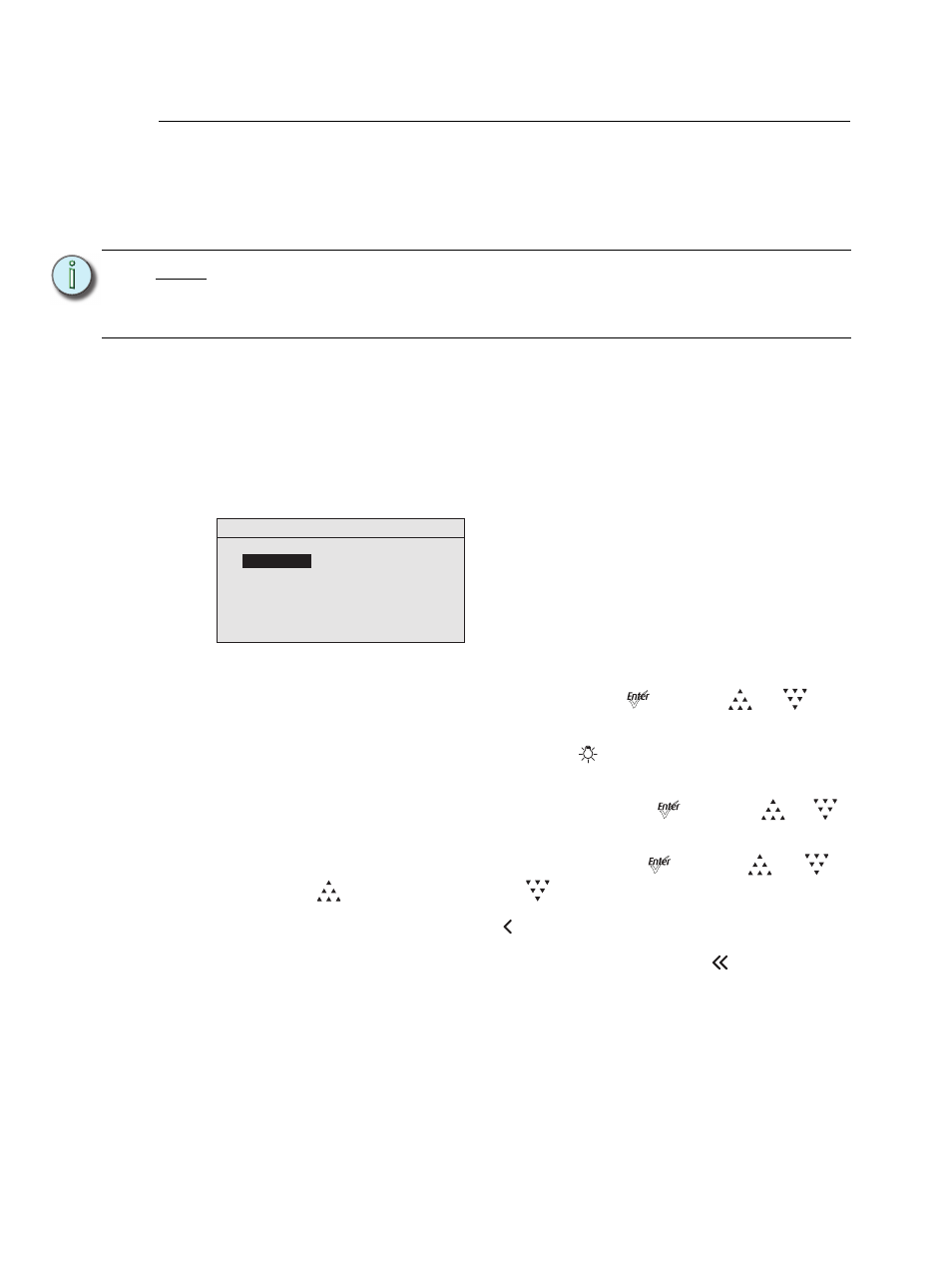

Figure-3.44 Studio Status Home screen (Vivid, Lustr+, Series 2 Lustr, and Studio HD).
•
To adjust the Intensity, select it in the menu and press [
] and then [
] or [
]. The
range is 0 to 100%.
•
To immediately set the Intensity to 0, press the [
] button. Pressing it again will return
it to the previously-set Intensity.
•
To adjust the White Point,
select it in the menu and press [
] and then [
]or [
]
.
The range is 2700 to 6500K.
•
To adjust the Tint, press select it in the menu and press [
]and then [
] or [
].
Pressing [
] increases magenta and [
]increases green.
•
To return to the Main Menu, press [
].
•
To return to the Studio status screen from the Main Menu, press [
].
N o t e :
Studio profile is the default Quick Setup for fixtures containing the Studio HD LED
array. Fixtures with other LED arrays may also be operated in Studio profile by
selecting this setting from Quick Setups or DMX Settings. Fixtures with Studio HD
LED arrays may also be operated in other setups.
Studio
Intensity
:
System OK
STUDIO MODE
4/5 Intensity
WhitePoint:
3200K
80%
100%
Tint:
