Page 17: Basic assembly mounting hardware
1
Installation and User Interface
11
Hardware
Basic Assembly

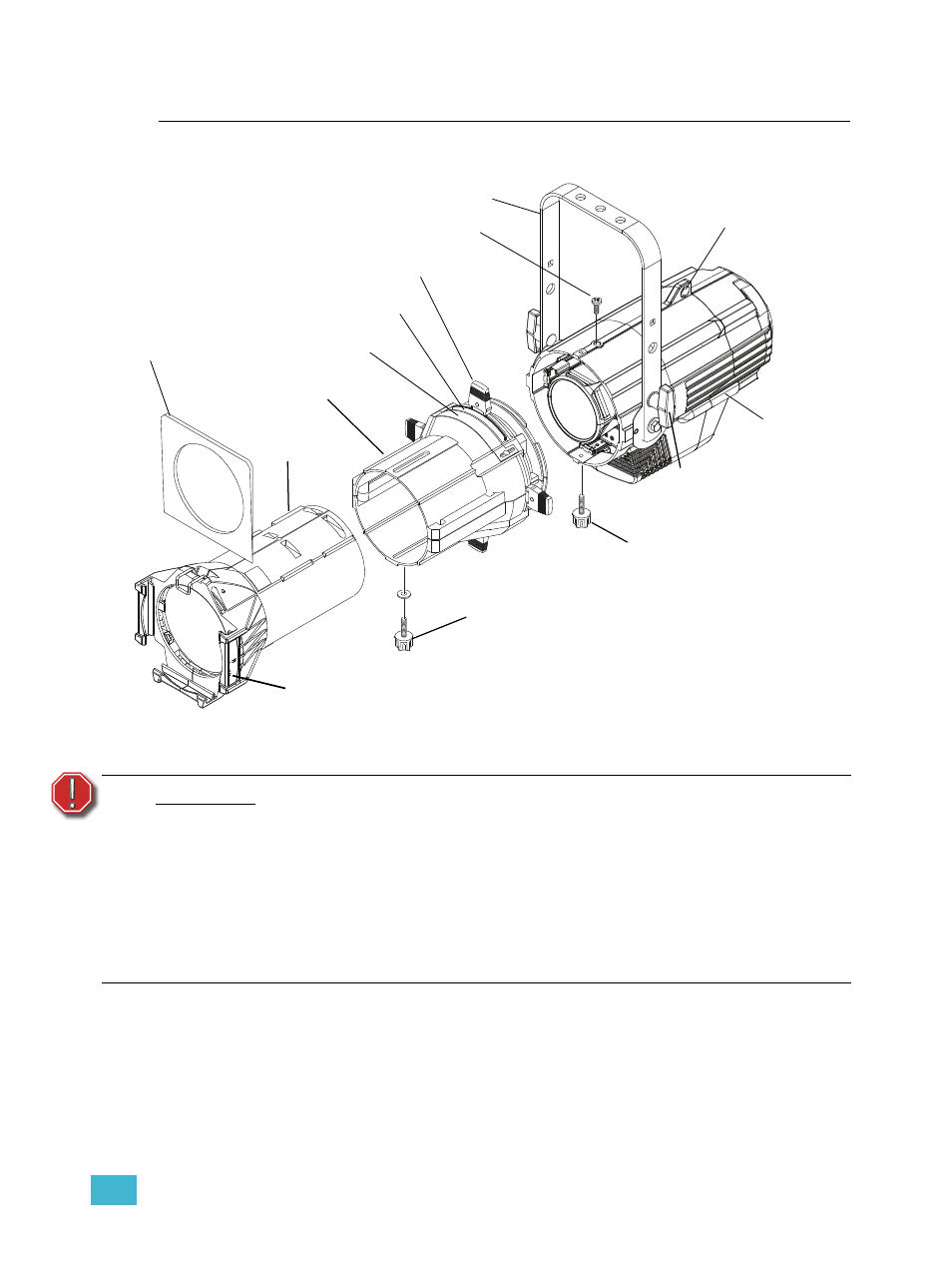

Figure-1.1 Basic assembly.
Mounting Hardware
A yoke is available for mounting fixtures.
W A R N I N G :
Please note the following safety warnings before use:
Do not mount the fixture on or near combustible surfaces.
Do not operate the fixture without a lens installed.
Always hang the fixture with the color frame retaining clip in the locked
position.
Always use a properly installed safety cable.
Disconnect the unit from power and DMX and allow the fixture to cool before
removing or installing the shutter barrel or other adapters, and all cleaning
and maintenance.
Color frame holder
Beam focus knob
Color frame
Lens tube
Shutter barrel
assembly
Barrel rotation knob
Yoke locking knob
Light engine
body
Yoke
Retainer bolt
Shutters
Pattern holder slot
Drop-in iris slot
NOTE: Safety cable is not included.
Safety
cable
loop
