Installation and User Interface 23
Connections
All connections and user controls are located on the back of the fixture.

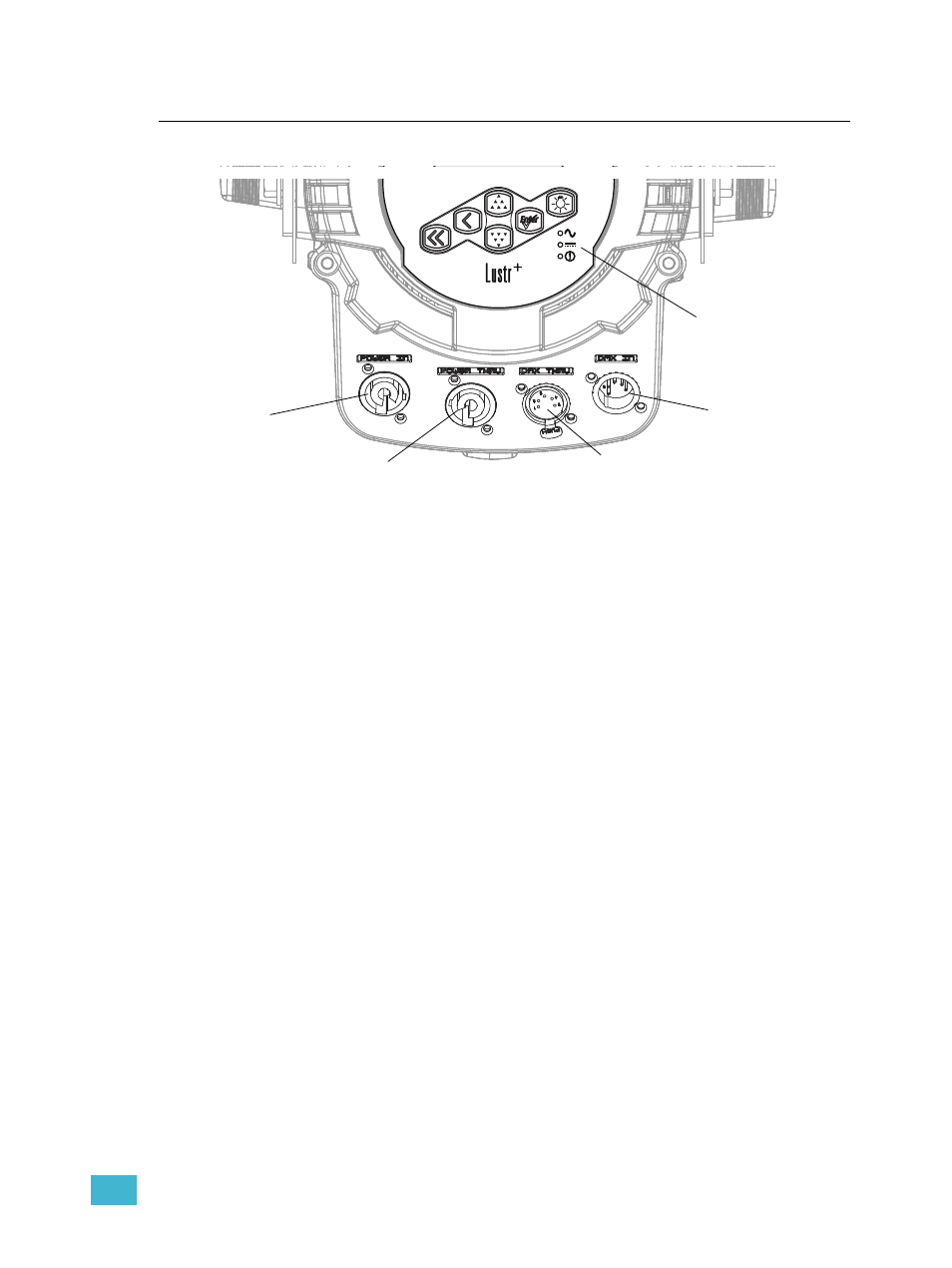

Figure-1.13 Power and DMX Connections on Back of Fixture.
Connect AC input power and DMX data cables to the appropriate ports. Connect the
incoming DMX data cable to the DMX Input connector. If you are daisy-chaining the data
to other fixtures or DMX-controlled devices, connect the next DMX cable to the DMX Thru
connector. Up to 32 fixtures can be connected together into a data daisy-chain.
For information about the user interface, refer to User Interface Overview, page 32 .
Source Four LED Series Connections
AC cable
Connect:
Align and insert the power connector. Twist the connector clockwise until it locks into place.
Disconnect:
Slide back the locking tab to unlock, twist the connector counterclockwise, and then pull and
disconnect the power connector.
DMX cable
Connect:
Align and insert the DMX connector.
Disconnect:
Press the release button on the connector or on the fixture and pull the connector out.
Indicator Lights
The indicator lights show the status of power input (blue), DMX input (green) and fixture
errors (red). When the DMX signal is lost, the green indicator flashes.
If the fixture status indicator is configured to Off, the indicator lights will not illuminate. For
more information, see Local Settings, page 66 .
Power In
Power Thru
DMX In
DMX Thru
Status indicators
