Dimensions and hanging clearances – ETC Source Four LED v1.6.0 User Manual User Manual
Page 26
20
Source Four LED Profile v1.6.0 User Manual
Dimensions and Hanging Clearances
Use the following dimensions to allow proper clearances around the fixture. Allow additional
space for cables.

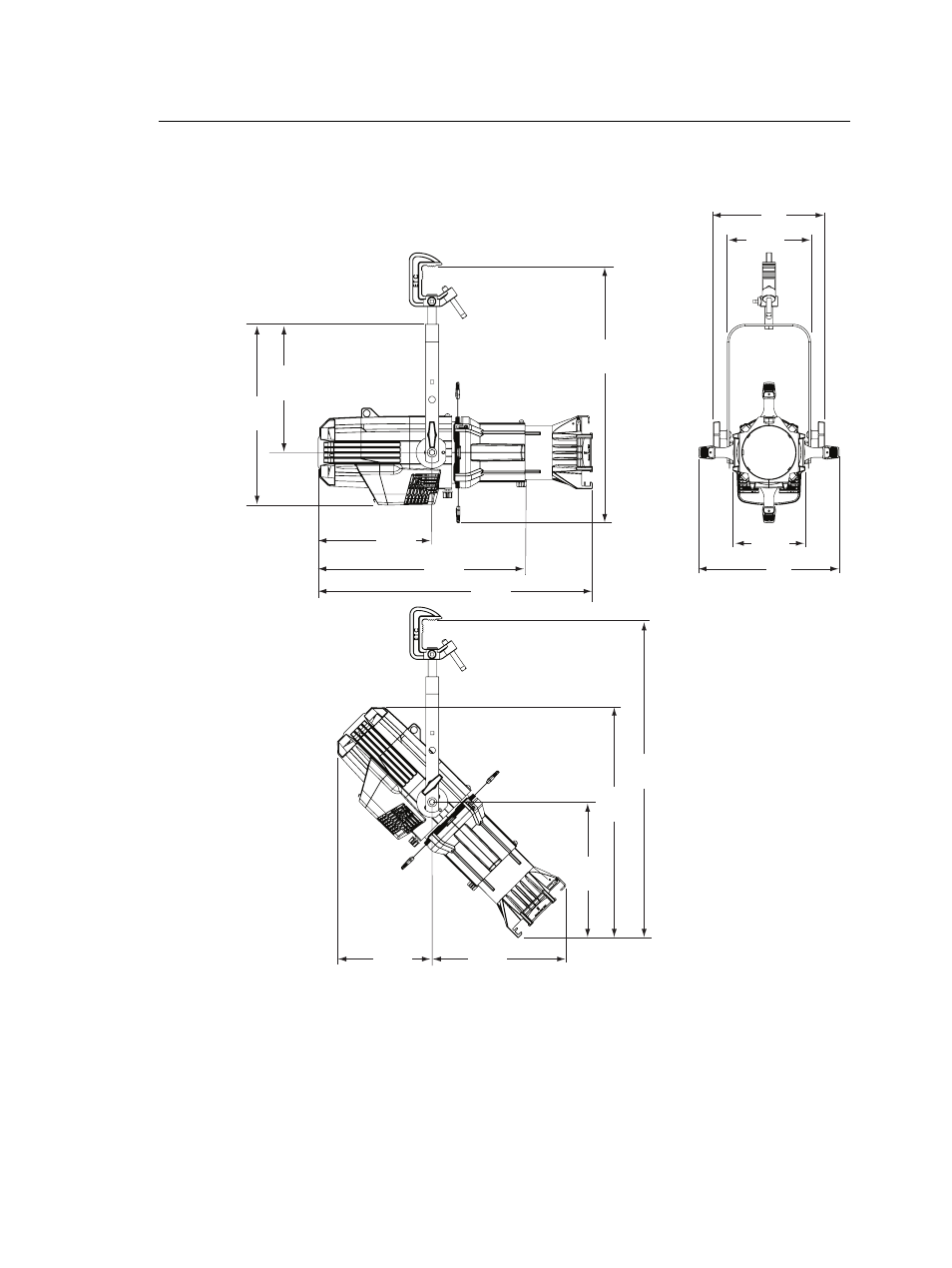

Figure-1.11 Dimensions with typical 19°, 26° or 36° lens tube fully extended. Other lens tubes
available, but not shown.
6.9”
174mm
12.1”
308mm
17.1”
434mm
24.2”
615mm
13.3”
338mm
7.9”
200mm
10.6”
268mm
10.8”
274mm
25.9”
659mm
30.7”
779mm
22.3”
566mm
13.1”
333mm
9.2”
233mm
12.9”
328mm
19.56”
497mm
