Installing accessories, Color frame holder, Smooth wash diffuser – ETC Source Four LED v1.6.0 User Manual User Manual
Page 36
30
Source Four LED Profile v1.6.0 User Manual
Installing Accessories
Color Frame Holder

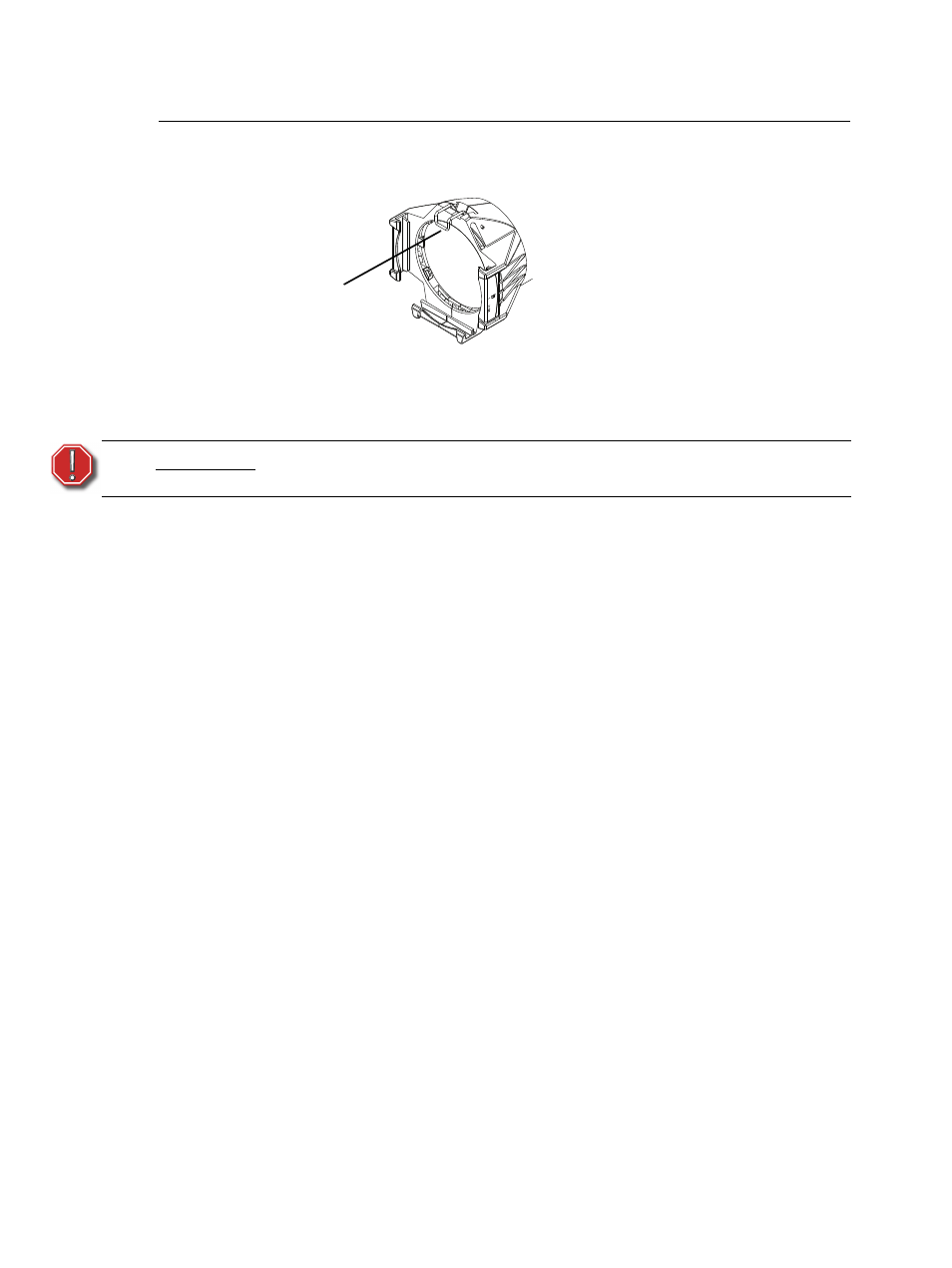

Figure-1.14 Color frame holder and retaining clip.
The gel frame holder is equipped with a spring-loaded retaining clip that prevents gel frames and
accessories from falling out.
Step 1:
Release the retaining clip by pushing it sideways while gently pulling backwards.
Step 2:
Insert the color frame or other accessory.
Step 3:
Lock the retaining clip by pushing sideways while gently pushing forward.
Smooth Wash Diffuser
To reduce edge effects and provide better overlap when using the fixture for wash, use a
smooth wash diffuser. If this diffuser is used, it recommended to not use the soft focus
diffuser in the pattern holder. See
.
W A R N I N G :
Make sure all color frames and accessories are locked in position with the
retaining clip before hanging the fixture.
Retaining clip
shown in the
locked position
