1
Installation and User Interface
13
Aim Adjustments
The fixture can be tilted up and down to aim the light where it is needed. The adjustment is
the same for the yoke or floor stand. To assist aiming the fixture, you can turn it on without
having to be connected to DMX control or enabling a preset. For more information, see
.

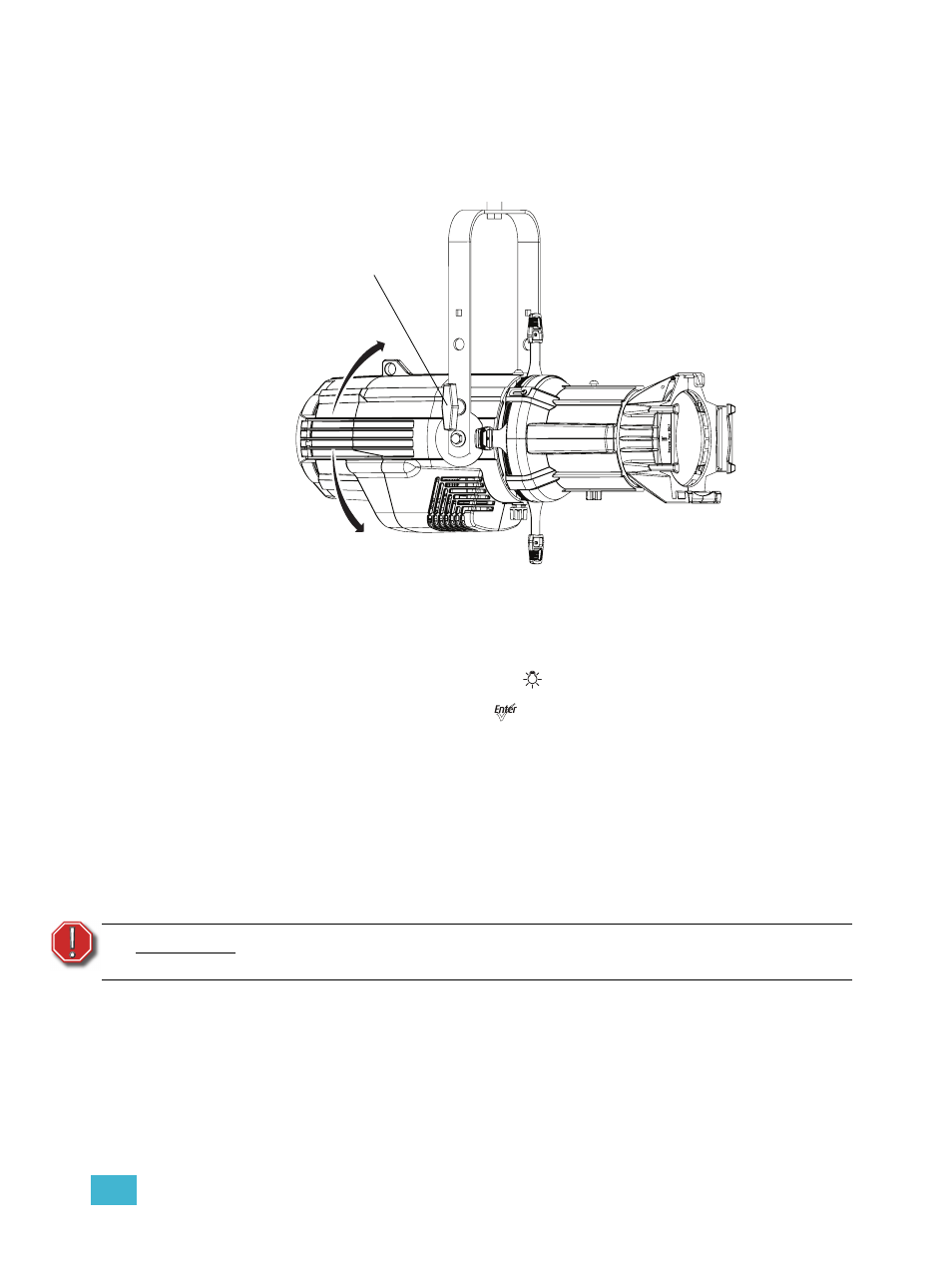

Figure-1.3 Tilting the Fixture on the Yoke.
Turning the Fixture On
Step 1:
Apply power to the fixture.
Step 2:
On the back of the fixture press [
].
Step 3:
With Focus selected, press [
].
Adjusting the Tilt
Step 1:
Loosen the yoke locking knobs. Do not remove them.
Step 2:
Tilt the fixture to the desired position.
Step 3:
Tighten the yoke locking knobs to secure in position.
Adjusting the Pan
The pan is adjusted at the hanging clamp. Please consult the clamp manufacturer’s
documentation for instructions on loosening and rotating the yoke at the clamp.
W A R N I N G :
A safety cable (or other approved safety device) must be securely attached to
the safety cable loop before loosening the clamp.
Yoke locking
knob
