Det-Tronics EagleVision - PC User Manual
Page 66
Circuit Open and Circuit Short — open or shorted status of signal
audible output.
Not Communicating — board is not responding.
Power Supply Monitor.
See Figure VII–6. The power supply monitor is capable of monitoring up
to 2 SMPSs (Switchable Mode Power Supplies) and one battery charg-
ing circuit. During the configuration process, the operator selects if one
or two supplies are being monitored.
AC Fail — low or missing AC input voltage is detected.
Ground Fault Pos and Ground Fault Neg — a ground fault has
been detected in the 24 volt power circuit.
SMPS 1 Present and SMPS 2 Present — the power supplies are
present.
SMPS 1 Failed and SMPS 2 Failed — power supply failure.
Battery Failed — battery is missing.
95-8479
7.9
E
AGLE
Q
UANTUM
P
OINT
D
ISPLAYS

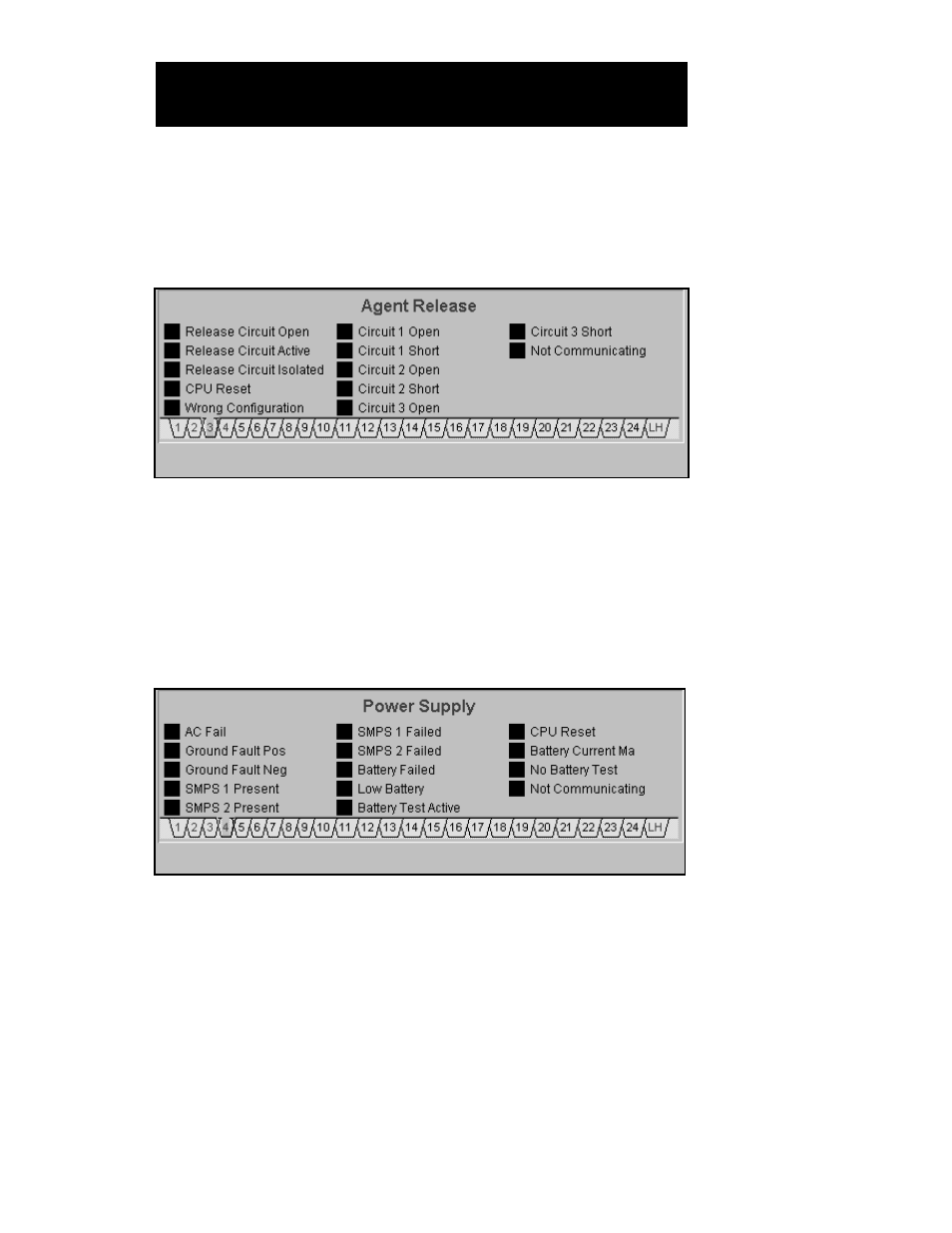

FIGURE VII-5
LIOU Agent Release Board
Point Display Screen
FIGURE VII-6
LIOU Power Supply Monitor
Point Display Screen
