Det-Tronics EagleVision - PC User Manual

Page 29

1. Highlight the desired address on the Point Configuration screen.

Click on the Modify Point button.

2. Click on the Define button.

3. Click on the UV/IR Detector button, then click on OK. The UV/IR

Configuration screen will be displayed. See Figure V–9.

4. Type a tag name for the point in the space provided.

5. Assign a trigger for the point.

6. Configure the point by selecting:

Sensitivity level –

UV and IR selected separately

Signal processing mode – UV only
Arc rejection level –

If arc rejection is selected

Latching/non-latching –

With “latching” selected, fire alarm sig-
nal is present until cleared by a reset
command from the OIS.

Automatic Oi –

Selecting “manual” disables the auto-
matic Oi test.

Oi sensitivity –

IR only

Time delay –

0 to 7 seconds

Oi test frequency –

IR only (UV fixed at once per minute)

95-8479

5.13

AGLE

UANTUM

YSTEM

ONFIGURATION

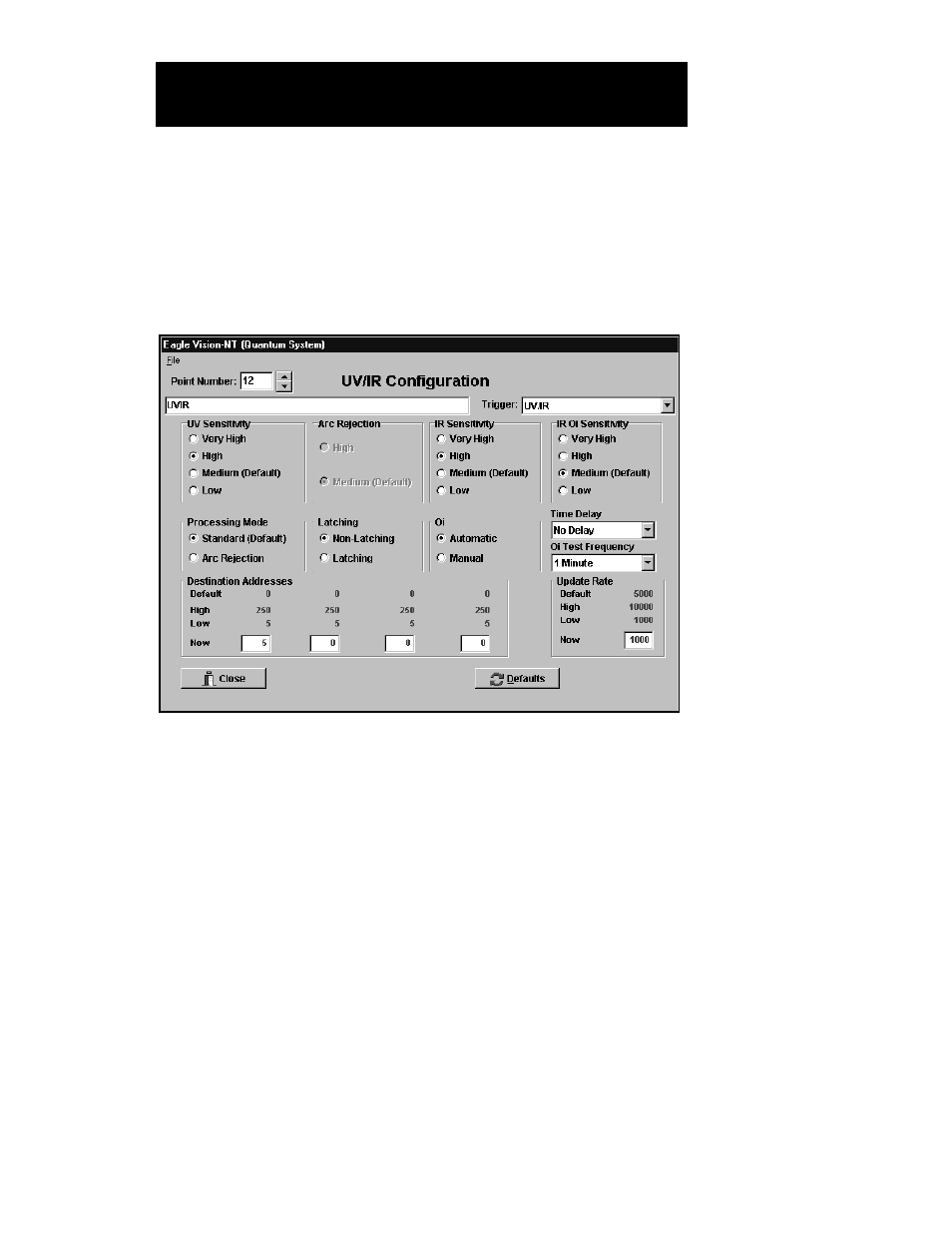

FIGURE V-9

UV/IR Configuration Screen
