Selection Tool
The “arrow” selection tool (pointer) is used for selecting objects and
moving them around the screen. Multiple object selections are made by
clicking and dragging the selection rectangle around all objects to be
selected, or by holding down the shift key while clicking on each object
to be selected. Objects are deleted by first selecting them and then
using the “delete” key on the keyboard.
Text Tool
The text (label) tool is used to place text fields on the drawing. To place
a text field, select this tool, then click on the location where it will be
placed. Double click on the text field. The Label Edit Form dialog box
will be displayed. Enter the desired text in the space provided, then click
on OK. To change the characteristics of the text, select “Font” under the
Edit menu.
Input Gate
Used for assigning physical and LON/SLC inputs to the logic.
To place an Input Gate, select this tool, then click on the location where
it will be placed. Double click on the gate to display the Input Gate Edit
screen. See Figure V-20. Select the desired input parameters from the
pull down menus, then click on OK.
95-8479
5.29
E
AGLE
Q
UANTUM
S
YSTEM
C
ONFIGURATION
SELECTION TOOL
TEXT TOOL
INPUT GATE
OUTPUT GATE
AND GATE
OR GATE
NOT GATE
LESS THAN GATE
GREATER THAN GATE
EQUALS GATE
LESS THAN EQUAL GATE
GREATER THAN EQUAL GATE
LATCH GATE
INTEGER ADDER GATE
BINARY COUNTER GATE
TIMER GATE

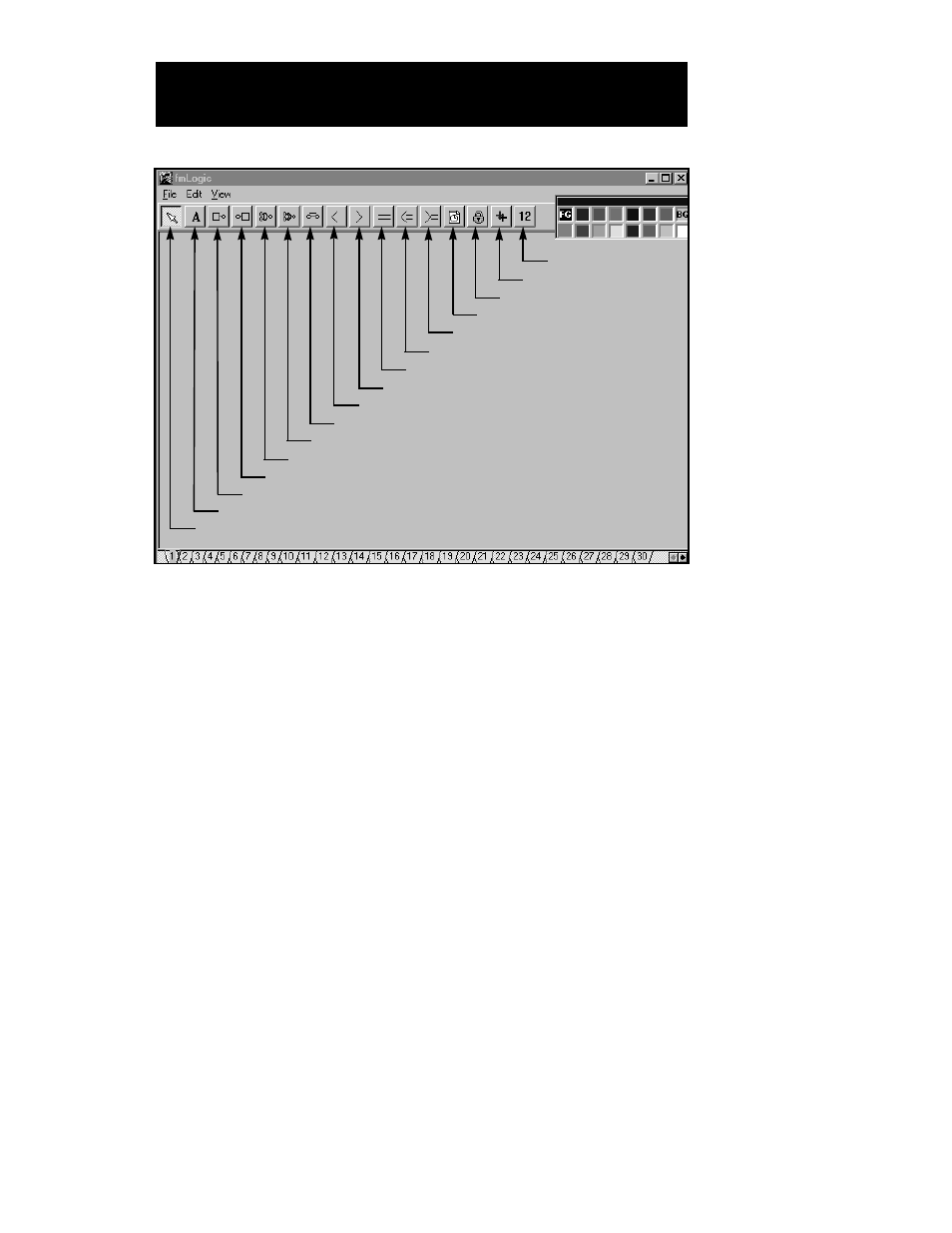

FIGURE V-19
Logic Tools
