8.2.1 IP ROUTING EXEMPLARY CONFIGURATION
This example shows, by means of the IP routing menu item, how a setting is made and
stored. Furthermore it explains how a certain setting is disabled or deleted.
Note:
If you don't know exactly, which setting is the correct one in a specific selection / input
box, you can put the mouse pointer on the question mark right next to this selection. A
tooltip box will appear, giving you some advice and explanation, including some
examples.
S
ELECTION 1

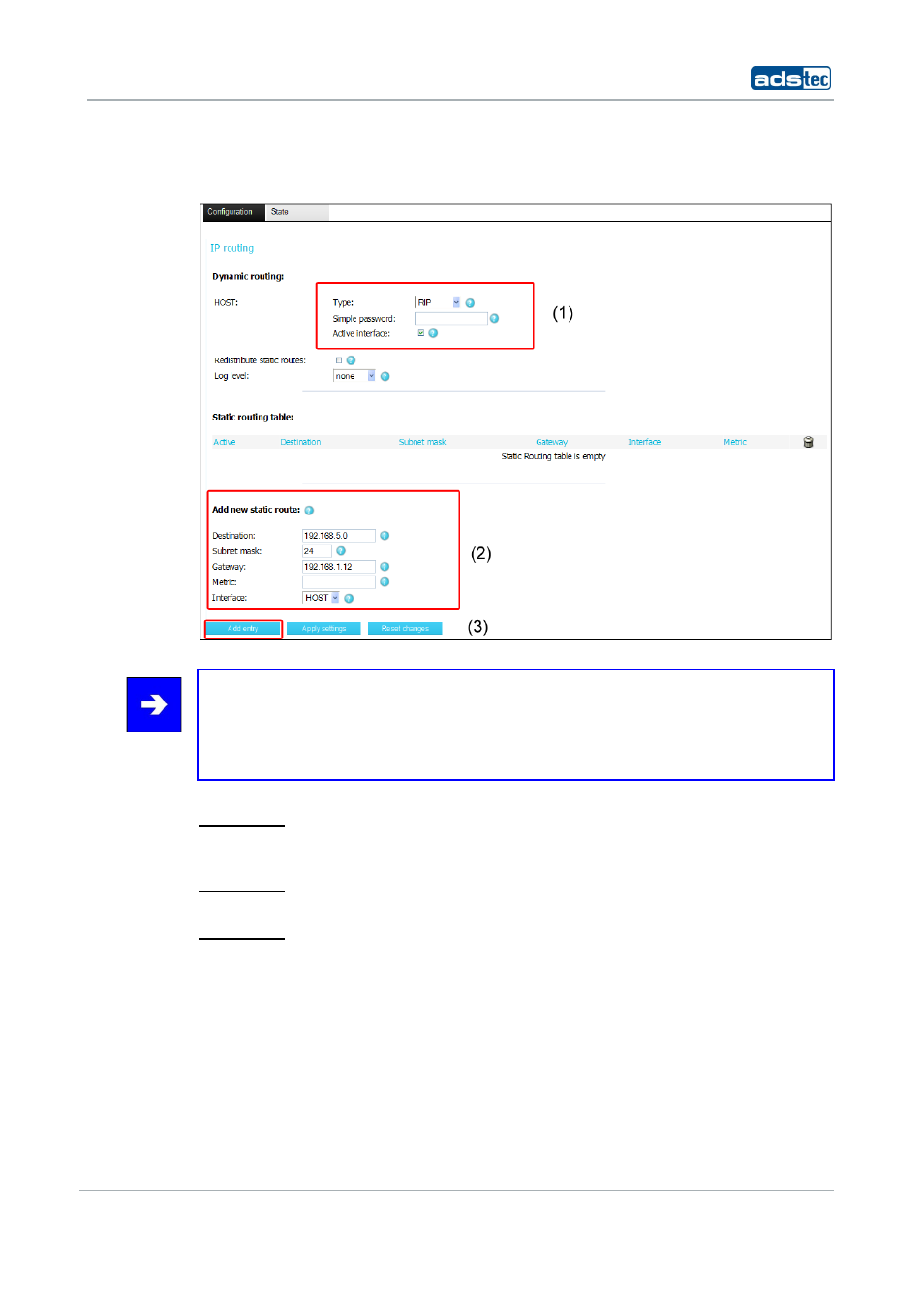

Make a selection in the pull down menu first. Click on the arrow next to the setting in order
to make a selection.
S
ELECTION 2
Subsequently, enter all user specific settings in the input boxes.
S
ELECTION 3
Confirm your entry by clicking on "Add entry". Your settings will now be stored.
Your settings are stored and enabled now. (Tick at no. 1)
